Compression Fittings

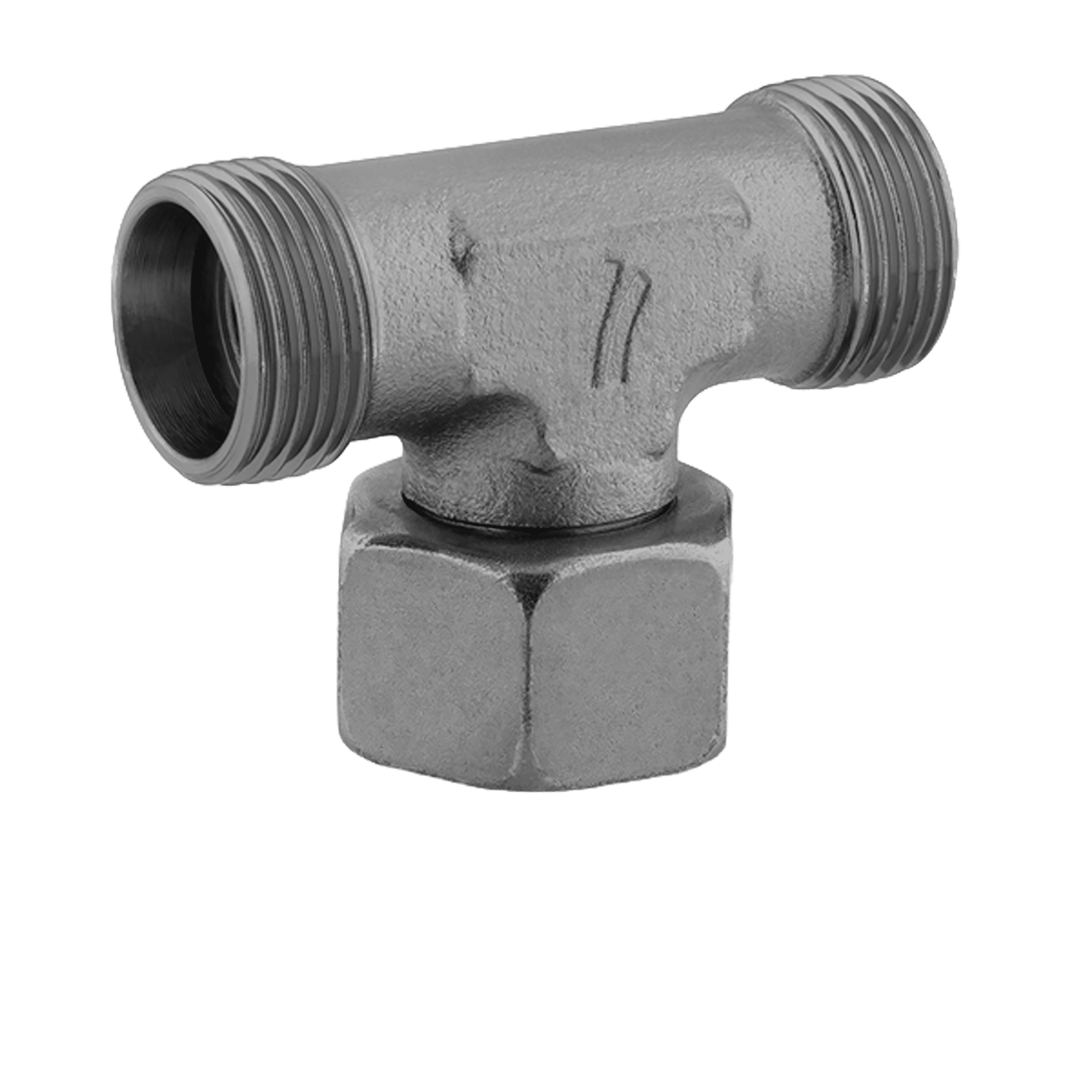

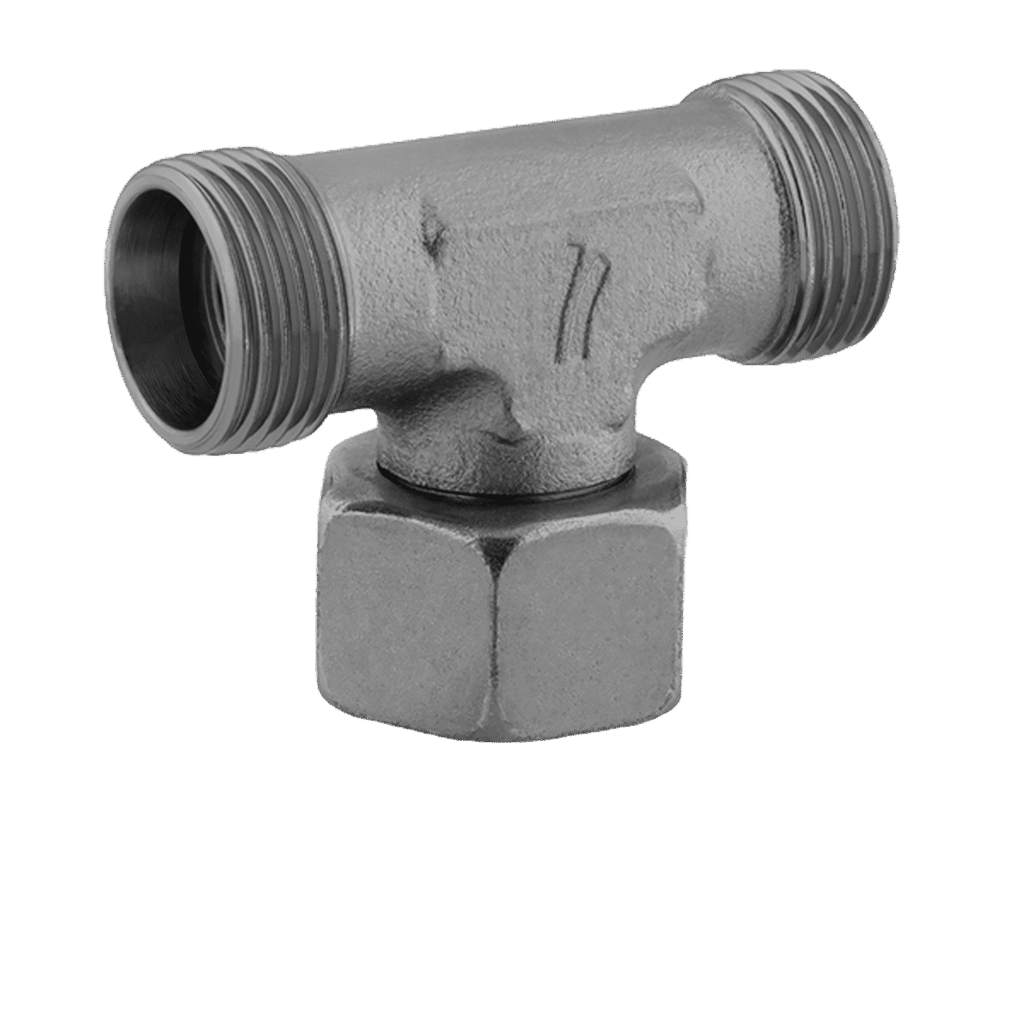

Metric Swivel Branch Tee (ET)

Metric Swivel Branch Tee (ET)

Fitting, T shaped. Adjustable direction fitting. Metric nut thread. 24° outer cone with O-ring. To ISO 8434-1. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 20 sizes, each with its own part number.

20sizes
MLM-MLM-MLF-121212-MC to MHM-MHM-MHF-525252-MC
Request a priceData sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

StandardISO 8434-1
SurfaceMotusCoat™
MaterialSteel

Pick your size

Tick the sizes you need, then request a price.

IdentificationSeriesWorking pressure barØ d2 mmL1 mmL2 mmL7 mmSW mmS1 mmOR
LPN 315626.012.01912144.0 x 1.5
LPN 315827.514.02112176.0 x 1.5
LPN 3151029.015.02214197.5 x 1.5
LPN 3151229.517.02417229.0 x 1.5
LPN 3151533.021.028192712.0 x 2.0
LPN 3151835.523.531243215.0 x 2.0
LPN 1602239.527.535273620.0 x 2.0
LPN 1602841.530.538364126.0 x 2.0
LPN 1603551.034.545415032.0 x 2.5
LPN 1604256.040.051506038.0 x 2.5
SPN 630627.016.02312174.0 x 1.5
SPN 630827.517.02414196.0 x 1.5
SPN 6301030.017.52517227.5 x 1.5
SPN 6301231.521.52917249.0 x 1.5
SPN 6301435.022.030192710.0 x 2.0
SPN 4001637.524.533243012.0 x 2.0
SPN 4002044.526.537273616.3 x 2.4
SPN 4002550.530.0423646-
SPN 4003055.035.549415025.3 x 2.4
SPN 3153863.041.057506033.3 x 2.4

Series: LL = Very Light L = Light S = Heavy PN = Nominal pressure PB = Max. operating pressure Ø d2 = External pipe diameter Product Version: Stainless Steel (SS)

The details

Connection 1
Metric nut thread
Sealing form 1
24° outer cone with O-ring
Connection 2 +3
Metric cylindrical outer thread
Sealing form 2 +3
24° inner cone
Design
Adjustable direction fitting
Construction
T shaped
Standard
ISO 8434-1
Included in scope of supply
Socket (without union nut and cutting ring)
Material
Steel
Surface
MotusCoat™

Downloads

Metric Swivel Branch Tee (ET) data sheetPDF, matches the catalogueDownload
Surface

MotusCoat™

In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.

Competitor coating after 1000-hour salt spray testing
A fitting with a competitor coating, covered in red rust
A fitting with MotusCoat, with no red rust
MotusCoat™After a 1000-hour salt spray test according to DIN EN ISO 9227
