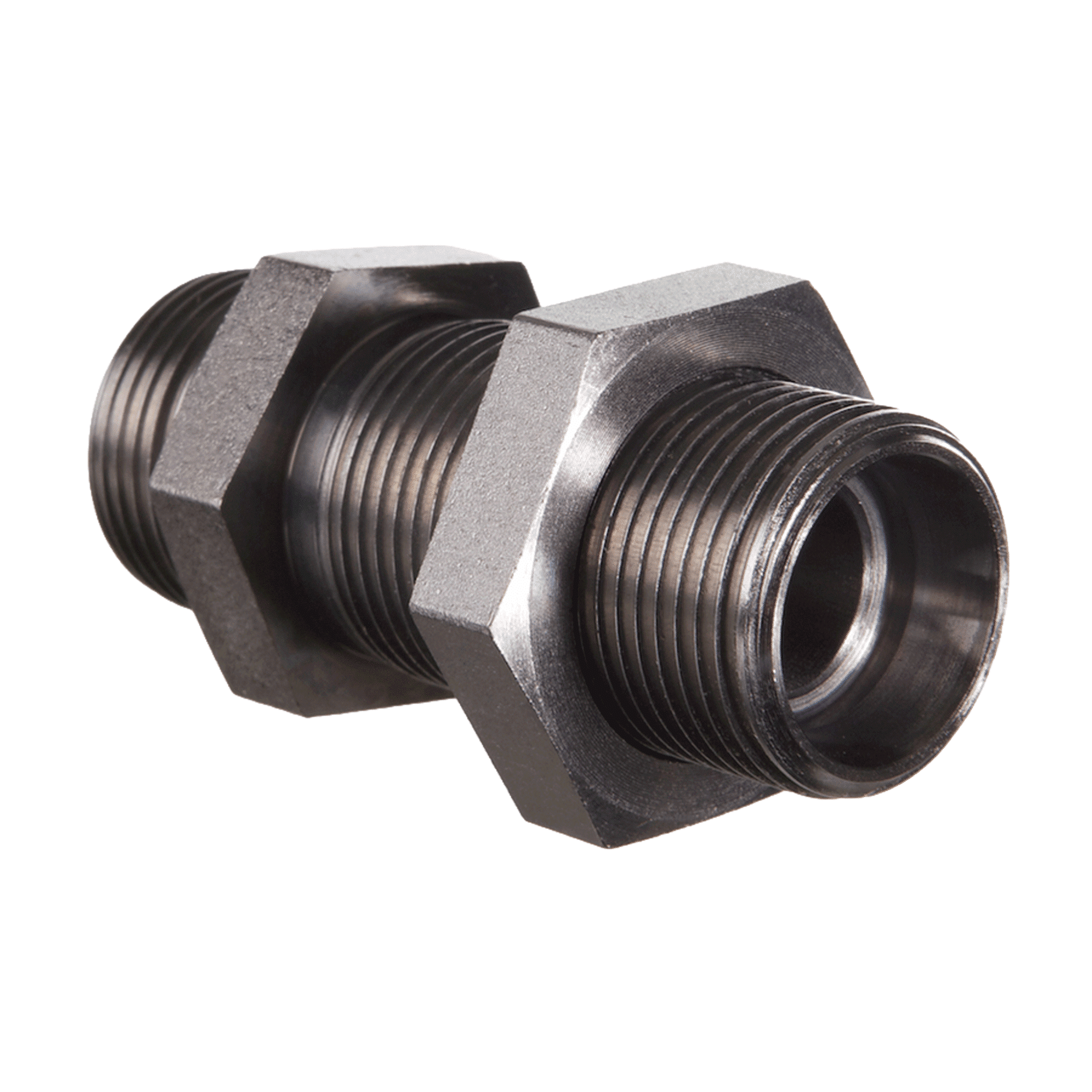

Bulkhead fitting. Straight. To DIN 2353, ISO 8434-1. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 20 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | Series | Working pressure bar | Ø d2 mm | G1 | L2 mm | L4 mm | SW mm | S1 |
|---|---|---|---|---|---|---|---|---|
| L | PN 315 | 6 | M 12 x 1.5 | 27.0 | 7.0 | 17 | 17 | |
| L | PN 315 | 8 | M 14 x 1.5 | 27.0 | 8.0 | 19 | 19 | |
| L | PN 315 | 10 | M 16 x 1.5 | 28.0 | 10.0 | 22 | 22 | |
| L | PN 315 | 12 | M 18 x 1.5 | 29.0 | 10.0 | 24 | 24 | |
| L | PN 315 | 15 | M 22 x 1.5 | 31.0 | 12.0 | 27 | 30 | |
| L | PN 315 | 18 | M 26 x 1.5 | 32.5 | 13.5 | 32 | 36 | |
| L | PN 160 | 22 | M 30 x 2 | 34.5 | 16.5 | 36 | 41 | |
| L | PN 160 | 28 | M 36 x 2 | 35.5 | 18.5 | 41 | 46 | |
| L | PN 160 | 35 | M 45 x 2 | 36.5 | 18.5 | 50 | 55 | |
| L | PN 160 | 42 | M 52 x 2 | 36.0 | 19.0 | 60 | 65 | |
| S | PN 630 | 6 | M 14 x 1.5 | 29.0 | 12.0 | 19 | 19 | |
| S | PN 630 | 8 | M 16 x 1.5 | 29.0 | 13.0 | 22 | 22 | |
| S | PN 630 | 10 | M 18 x 1.5 | 29.5 | 14.5 | 24 | 24 | |
| S | PN 630 | 12 | M 20 x 1.5 | 30.5 | 14.5 | 27 | 27 | |
| S | PN 630 | 14 | M 22 x 1.5 | 32.0 | 17.0 | 30 | 30 | |
| S | PN 400 | 16 | M 24 x 1.5 | 31.5 | 16.5 | 32 | 32 | |
| S | PN 400 | 20 | M 30 x 2 | 33.5 | 17.5 | 41 | 41 | |
| S | PN 400 | 25 | M 36 x 2 | 35.0 | 20.0 | 46 | 46 | |
| S | PN 400 | 30 | M 42 x 2 | 37.5 | 21.5 | 50 | 50 | |
| S | PN 315 | 38 | M 52 x 2 | 37.0 | 22.0 | 65 | 65 |
Series: LL = Very Light L = Light S = Heavy PN = Nominal pressure PB = Max. operating pressure Ø d2 = External pipe diameter Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
