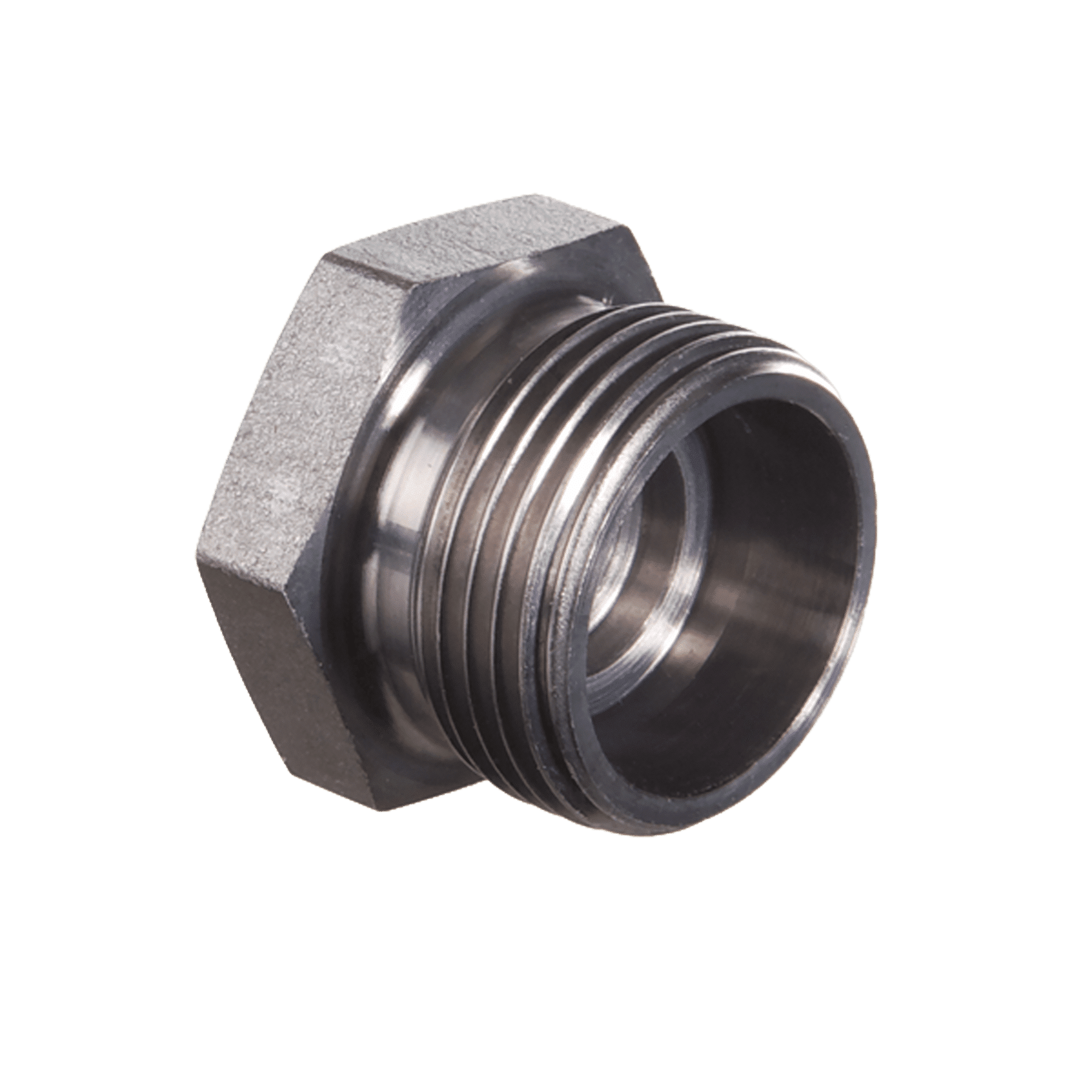

Metric Male Plug (with Sealing Face)

Name: Metric Male Plug (with Sealing Face)
Brand: Motus Hydraulics
SKU: METRIC-MALE-PLUG

Blanking socket. Straight. Metric cylindrical outer thread. 24° inner cone. To DIN 2353, ISO 8434-1. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 24 sizes, each with its own part number.

24sizes
MLLM-08-MC to MHM-52-MC

Request a price Data sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

StandardDIN 2353, ISO 8434-1

SurfaceMotusCoat™

MaterialSteel

Pick your size

Tick the sizes you need, then request a price.

Filter the sizes

Identification	Series	Working pressure bar	Ø d2 mm	G1	L1 mm	L2 mm	L3 mm	SW mm
MLLM-08-MC	LL	PN 100	4	M 8 x 1	12	8.0	4.0	9
MLLM-09-MC	LL	PN 100	5	M 10 x 1	12	8.0	5.5	11
MLLM-10-MC	LL	PN 100	6	M 10 x 1	12	8.0	5.5	11
MLLM-12-MC	LL	PN 100	8	M 12 x 1	14	9.0	5.5	12
MLM-12-MC	L	PN 315	6	M 12 x 1.5	14	10.0	7.0	12
MLM-14-MC	L	PN 315	8	M 14 x 1.5	15	10.0	7.0	14
MLM-16-MC	L	PN 315	10	M 16 x 1.5	16	11.0	7.0	17
MLM-18-MC	L	PN 315	12	M 18 x 1.5	17	11.0	7.0	19
MLM-22-MC	L	PN 315	15	M 22 x 1.5	18	12.0	7.0	24
MLM-26-MC	L	PN 315	18	M 26 x 1.5	19	12.0	7.5	27
MLM-30-MC	L	PN 160	22	M 30 x 2	21	14.0	7.5	32
MLM-36-MC	L	PN 160	28	M 36 x 2	22	14.0	7.5	41
MLM-45-MC	L	PN 160	35	M 45 x 2	25	16.0	10.5	46
MLM-52-MC	L	PN 160	42	M 52 x 2	27	16.0	11.0	55
MHM-14-MC	S	PN 630	6	M 14 x 1.5	18	12.0	7.0	14
MHM-16-MC	S	PN 630	8	M 16 x 1.5	20	12.0	7.0	17
MHM-18-MC	S	PN 630	10	M 18 x 1.5	20	12.0	7.5	19
MHM-20-MC	S	PN 630	12	M 20 x 1.5	22	12.0	7.5	22
MHM-22-MC	S	PN 630	14	M 22 x 1.5	24	14.0	8.0	24
MHM-24-MC	S	PN 400	16	M 24 x 1.5	24	14.0	8.5	27
MHM-30-MC	S	PN 400	20	M 30 x 2	28	16.0	10.5	32
MHM-36-MC	S	PN 400	25	M 36 x 2	32	18.0	12.0	41
MHM-42-MC	S	PN 400	30	M 42 x 2	36	20.0	13.5	46
MHM-52-MC	S	PN 315	38	M 52 x 2	39	22.0	16.0	55

Series: LL = Very Light L = Light S = Heavy PN = Nominal pressure PB = Max. operating pressure Ø d2 = External pipe diameter Product Version: Stainless Steel (SS)

The details

Connection 1: Metric cylindrical outer thread
Sealing form 1: 24° inner cone
Design: Blanking socket
Construction: Straight
Standard: DIN 2353, ISO 8434-1
Included in scope of supply: Socket (without union nut and cutting ring)
Material: Steel
Surface: MotusCoat™

Downloads

Metric Male Plug (with Sealing Face) data sheetPDF, matches the catalogueDownload

Surface

MotusCoat™

In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.

A fitting with a competitor coating, covered in red rust — Competitor coating after 1000-hour salt spray testing

A fitting with MotusCoat, with no red rust — **MotusCoat™**After a 1000-hour salt spray test according to DIN EN ISO 9227
