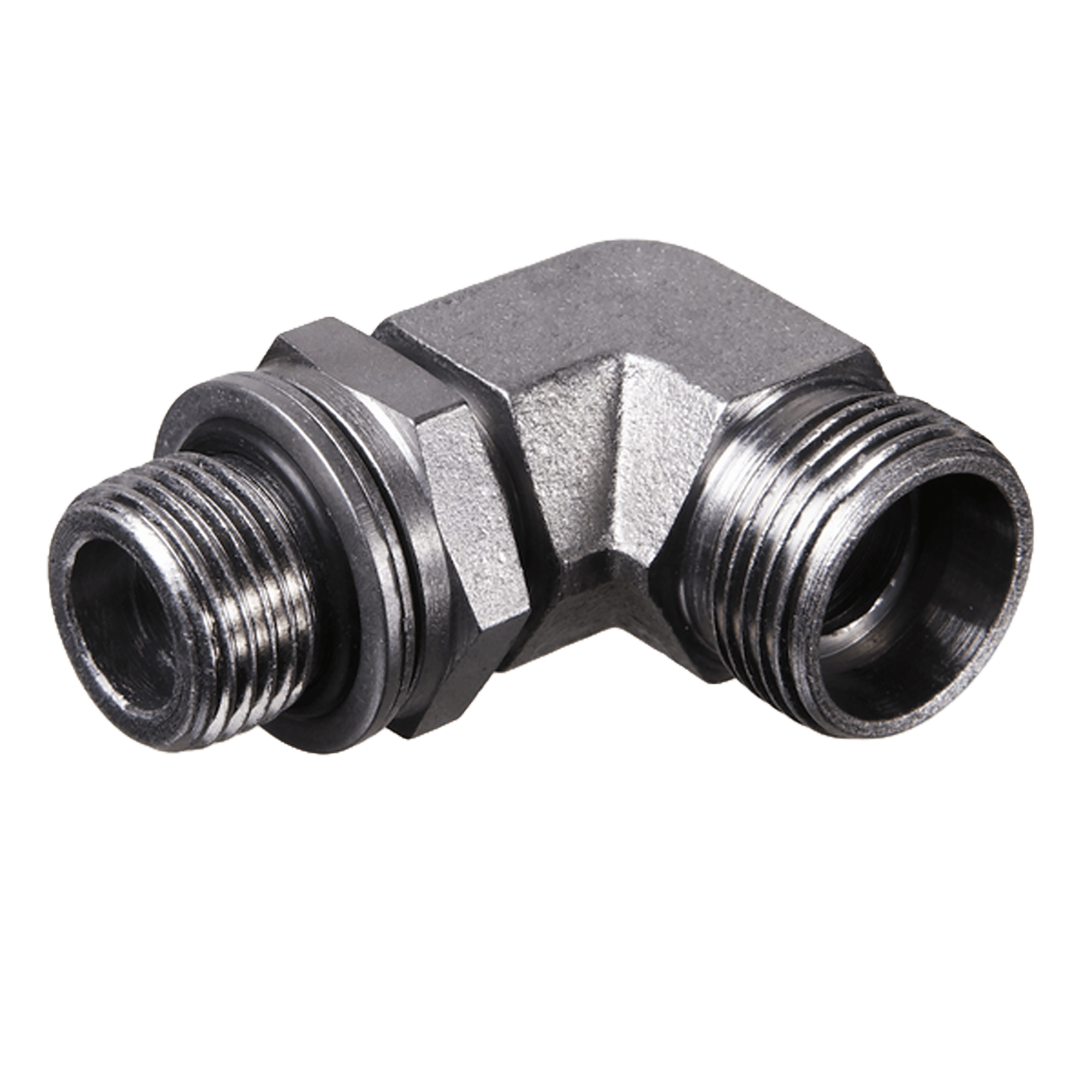

Screw-in fitting, angle 90°. Adjustable direction screw-in fitting. L shaped. Metric cylindrical outer thread at both ends. O-ring and spacer diaphragm ring one end, 24° inner cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 21 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | Series | Working pressure bar | Ø d2 mm | G1 | G2 | i mm | L4 mm | L5 mm | L7 mm | SW mm | S1 mm | OR |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | PN 315 | 6 | M 10 x 1 | M 12 x 1.5 | 7 | 14 | 20 | 21 | 14 | 13 | 8.1 x 1.6 | |
| L | PN 315 | 8 | M 12 x 1.5 | M 14 x 1.5 | 10 | 16 | 22 | 23 | 14 | 17 | 9.3 x 2.4 | |
| L | PN 315 | 10 | M 14 x 1.5 | M 16 x 1.5 | 10 | 17 | 24 | 24 | 19 | 17 | 11.3 x 2.4 | |
| L | PN 315 | 12 | M 16 x 1.5 | M 18 x 1.5 | 10 | 19 | 25 | 26 | 19 | 19 | 13.3 x 2.4 | |
| L | PN 315 | 15 | M 18 x 1.5 | M 22 x 1.5 | 11 | 21 | 31 | 28 | 22 | 22 | 15.3 x 2.4 | |
| L | PN 250 | 18 | M 22 x 1.5 | M 26 x 1.5 | 12 | 24 | 33 | 31 | 27 | 27 | 19.3 x 2.4 | |
| L | PN 160 | 22 | M 26 x 1.5 | M 30 x 2 | 14 | 28 | 36 | 35 | 30 | 32 | 23.5 x 2.6 | |
| L | PN 160 | 22 | M 27 x 2 | M 30 x 2 | 14 | 28 | 36 | 35 | 30 | 32 | 23.6 x 2.9 | |
| L | PN 160 | 28 | M 33 x 2 | M 36 x 2 | 14 | 31 | 39 | 38 | 36 | 38 | 29.5 x 3.0 | |
| L | PN 160 | 35 | M 42 x 2 | M 42 x 2 | 14 | 38 | 49 | 48 | 50 | 50 | 38.0 x 3.0 | |
| L | PN 160 | 42 | M 48 x 2 | M 52 x 2 | 16 | 38 | 50 | 49 | 50 | 55 | 44.5 x 3.0 | |
| S | PN 315 | 6 | M 12 x 1.5 | M 14 x 1.5 | 10 | 15 | 22 | 22 | 14 | 17 | 9.3 x 2.4 | |
| S | PN 315 | 8 | M 14 x 1.5 | M 16 x 1.5 | 10 | 17 | 26 | 24 | 19 | 17 | 11.3 x 2.4 | |
| S | PN 315 | 10 | M 16 x 1.5 | M 18 x 1.5 | 11 | 18 | 27 | 25 | 19 | 19 | 13.3 x 2.4 | |
| S | PN 315 | 12 | M 18 x 1.5 | M 20 x 1.5 | 12 | 22 | 31 | 29 | 22 | 22 | 15.3 x 2.4 | |
| S | PN 250 | 14 | M 20 x 1.5 | M 22 x 1.5 | 14 | 25 | 36 | 33 | 27 | 27 | 17.3 x 2.4 | |
| S | PN 250 | 16 | M 22 x 1.5 | M 24 x 1.5 | 14 | 25 | 36 | 33 | 27 | 27 | 19.3 x 2.4 | |
| S | PN 250 | 20 | M 27 x 2 | M 30 x 2 | 16 | 28 | 39 | 38 | 30 | 32 | 23.6 x 2.9 | |
| S | PN 160 | 25 | M 33 x 2 | M 36 x 2 | 16 | 30 | 44 | 42 | 36 | 38 | 29.5 x 3.0 | |
| S | PN 160 | 30 | M 42 x 2 | M 42 x 2 | 17 | 36 | 51 | 49 | 50 | 50 | 38.0 x 3.0 | |
| S | PN 160 | 38 | M 48 x 2 | M 52 x 2 | 19 | 34 | 54 | 50 | 50 | 55 | 44.5 x 3.0 |
Series: LL = Very Light L = Light S = Heavy PN = Nominal pressure PB = Max. operating pressure Ø d2 = External pipe diameter Product Version: Stainless Steel (SS)
