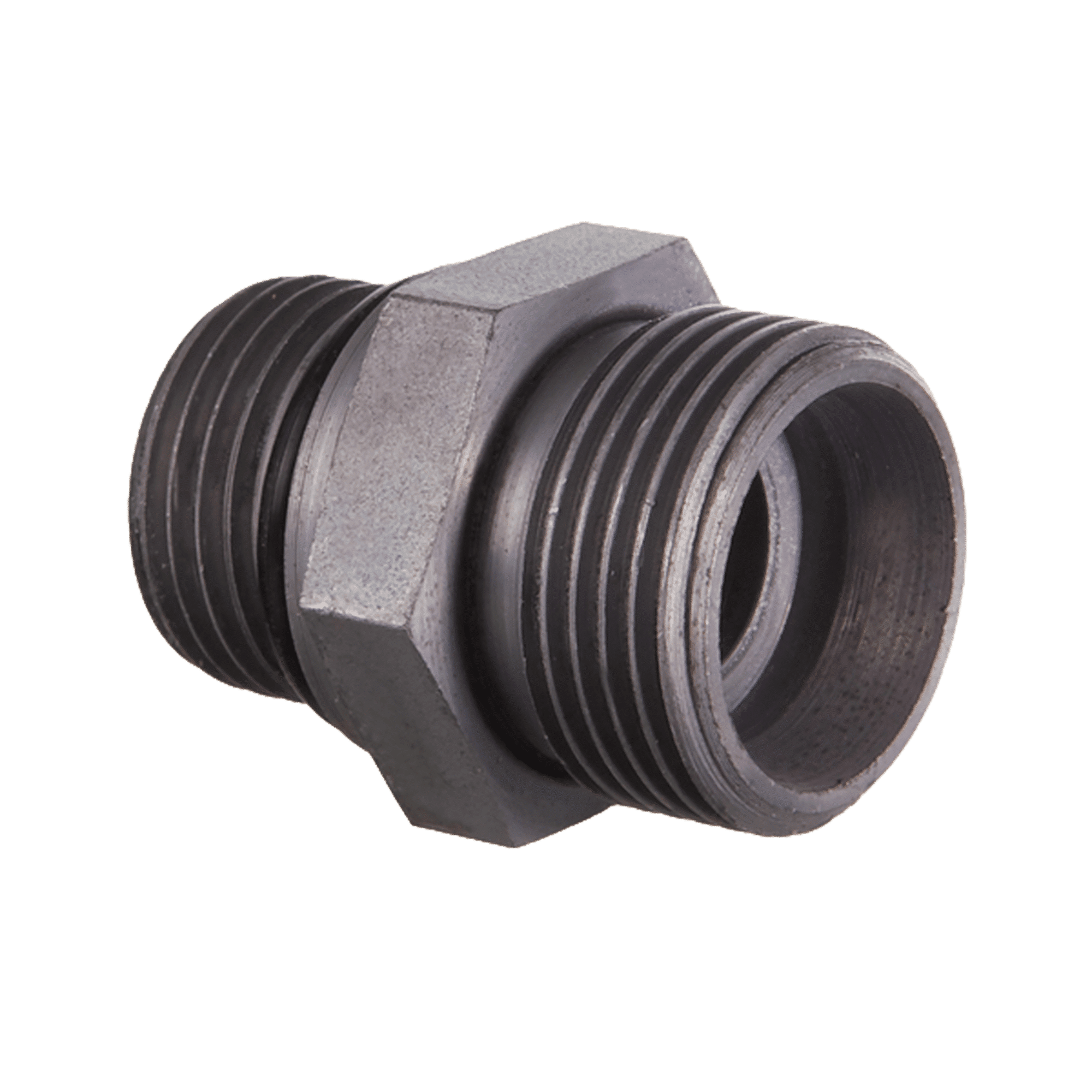

Screw-in fitting. Straight. UN / UNF external threads to metric cylindrical outer thread. Shape F one end, 24° inner cone the other. To DIN 2353, ISO 8434-1. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 50 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | Series | Working pressure bar | Ø d2 mm | G (Thread) | Ø D mm | i mm | L2 mm | L7 mm | SW | O - Ring (OR) |
|---|---|---|---|---|---|---|---|---|---|---|
| L | PN 315 | 6 | 7/16”-20 UNF | 14.4 | 9.1 | 9.9 | 26.0 | 17 | 9.17 x 1.83 | |
| L | PN 315 | 8 | 7/16”-20 UNF | 14.4 | 9.1 | 12.9 | 29.0 | 17 | 9.17 x 1.83 | |
| L | PN 315 | 10 | 7/16”-20 UNF | 14.4 | 9.1 | 13.9 | 30.0 | 17 | 9.17 x 1.83 | |
| L | PN 315 | 6 | 1/2”-20 UNF | 16.8 | 9.1 | 9.9 | 26.0 | 17 | 10.52 x 1.83 | |
| L | PN 315 | 8 | 1/2”-20 UNF | 16.8 | 9.1 | 12.9 | 29.0 | 17 | 10.52 x 1.83 | |
| L | PN 315 | 6 | 9/16”-18 UNF | 17.6 | 10.0 | 11.0 | 28.0 | 19 | 11.89 x 1.98 | |
| L | PN 315 | 8 | 9/16”-18 UNF | 17.6 | 10.0 | 13.0 | 30.0 | 19 | 11.89 x 1.98 | |
| L | PN 315 | 10 | 9/16”-18 UNF | 17.6 | 10.0 | 14.0 | 31.0 | 19 | 11.89 x 1.98 | |
| L | PN 315 | 12 | 9/16”-18 UNF | 17.6 | 10.0 | 12.0 | 29.0 | 19 | 11.89 x 1.98 | |
| L | PN 315 | 15 | 9/16”-18 UNF | 17.6 | 10.0 | 14.0 | 31.0 | 24 | 11.89 x 1.98 | |
| L | PN 315 | 10 | 3/4”-16 UNF | 22.3 | 11.1 | 14.9 | 33.0 | 24 | 16.36 x 2.20 | |
| L | PN 315 | 12 | 3/4”-16 UNF | 22.3 | 11.1 | 12.9 | 31.0 | 24 | 16.36 x 2.20 | |
| L | PN 315 | 15 | 3/4”-16 UNF | 22.3 | 11.1 | 13.9 | 32.0 | 24 | 16.36 x 2.20 | |
| L | PN 315 | 18 | 3/4”-16 UNF | 22.3 | 11.1 | 14.4 | 33.0 | 27 | 16.36 x 2.20 | |
| L | PN 315 | 12 | 7/8”-14 UNF | 25.5 | 12.7 | 14.3 | 34.0 | 27 | 19.18 x 2.46 | |
| L | PN 315 | 15 | 7/8”-14 UNF | 25.5 | 12.7 | 15.8 | 35.5 | 27 | 19.18 x 2.46 | |
| L | PN 315 | 18 | 7/8”-14 UNF | 25.5 | 12.7 | 14.5 | 34.7 | 27 | 19.18 x 2.46 | |
| L | PN 160 | 22 | 7/8”-14 UNF | 25.5 | 12.7 | 16.8 | 37.0 | 32 | 19.18 x 2.46 | |
| L | PN 160 | 28 | 7/8”-14 UNF | 25.5 | 12.7 | 19.8 | 40.0 | 41 | 19.18 x 2.46 | |
| L | PN 315 | 18 | 1.1/16”–12 UN | 31.9 | 15.1 | 14.4 | 37.0 | 32 | 23.47 x 2.95 | |
| L | PN 160 | 22 | 1.1/16”–12 UN | 31.9 | 15.1 | 16.4 | 39.0 | 32 | 23.47 x 2.95 | |
| L | PN 160 | 28 | 1.1/16”–12 UN | 31.9 | 15.1 | 17.4 | 40.0 | 41 | 23.47 x 2.95 | |
| L | PN 160 | 22 | 1.5/16”–12 UN | 38.2 | 15.1 | 17.4 | 40.0 | 41 | 29.74 x 2.95 | |
| L | PN 160 | 28 | 1.5/16”–12 UN | 38.2 | 15.1 | 17.4 | 40.0 | 41 | 29.74 x 2.95 | |
| L | PN 160 | 35 | 1.5/16”–12 UN | 38.2 | 15.1 | 17.4 | 43.0 | 46 | 29.74 x 2.95 |
| Identification | Series | Working pressure bar | Ø d2 mm | G (Thread) | Ø D mm | i mm | L2 mm | L7 mm | SW | O - Ring (OR) |
|---|---|---|---|---|---|---|---|---|---|---|
| L | PN 160 | 35 | 1.5/8”–12 UN | 47.7 | 15.1 | 17.4 | 43.0 | 50 | 37.47 x 3.00 | |
| L | PN 160 | 42 | 1.5/8”–12 UN | 47.7 | 15.1 | 18.9 | 45.0 | 55 | 37.47 x 3.00 | |
| L | PN 160 | 42 | 1.7/8”–12 UN | 53.8 | 15.1 | 18.9 | 45.0 | 60 | 43.69 x 3.00 | |
| S | PN 630 | 6 | 7/16”-20 UNF | 14.4 | 9.1 | 14.9 | 31.0 | 17 | 9.17 x 1.83 | |
| S | PN 630 | 8 | 7/16”-20 UNF | 14.4 | 9.1 | 14.9 | 31.0 | 17 | 9.17 x 1.83 | |
| S | PN 630 | 8 | 1/2”-20 UNF | 16.8 | 9.1 | 14.9 | 31.0 | 19 | 10.52 x 1.83 | |
| S | PN 630 | 8 | 9/16”-18 UNF | 17.6 | 10.0 | 15.0 | 32.0 | 19 | 11.89 x 1.98 | |
| S | PN 630 | 10 | 9/16”-18 UNF | 17.6 | 10.0 | 14.5 | 32.0 | 19 | 10.89 x 1.98 | |
| S | PN 630 | 12 | 9/16”-18 UNF | 17.6 | 10.0 | 14.5 | 32.0 | 22 | 11.89 x 1.98 | |
| S | PN 630 | 10 | 3/4”-16 UNF | 22.3 | 11.1 | 14.4 | 33.0 | 24 | 16.36 x 2.20 | |
| S | PN 630 | 12 | 3/4”-16 UNF | 22.3 | 11.1 | 17.4 | 36.0 | 24 | 16.36 x 2.20 | |
| S | PN 630 | 14 | 3/4”-16 UNF | 22.3 | 11.1 | 15.9 | 35.0 | 24 | 16.36 x 2.20 | |
| S | PN 400 | 16 | 3/4”-16 UNF | 22.3 | 11.1 | 15.4 | 35.0 | 24 | 16.36 x 2.20 | |
| S | PN 400 | 20 | 3/4”-16 UNF | 22.3 | 11.1 | 20.4 | 42.0 | 32 | 16.36 x 2.20 | |
| S | PN 630 | 12 | 7/8”-14 UNF | 25.5 | 12.7 | 17.8 | 38.0 | 27 | 19.18 x 2.46 | |
| S | PN 400 | 16 | 7/8”-14 UNF | 25.5 | 12.7 | 18.8 | 40.0 | 27 | 19.18 x 2.46 | |
| S | PN 400 | 20 | 7/8”-14 UNF | 25.5 | 12.7 | 20.8 | 44.0 | 32 | 19.18 x 2.46 | |
| S | PN 400 | 16 | 1.1/16”–12 UN | 31.9 | 15.1 | 20.4 | 44.0 | 32 | 23.47 x 2.95 | |
| S | PN 400 | 20 | 1.1/16”–12 UN | 31.9 | 15.1 | 20.4 | 46.0 | 32 | 23.47 x 2.95 | |
| S | PN 400 | 25 | 1.1/16”–12 UN | 31.9 | 15.1 | 22.9 | 50.0 | 41 | 23.47 x 2.95 | |
| S | PN 400 | 25 | 1.5/16”–12 UN | 38.2 | 15.1 | 22.9 | 50.0 | 41 | 29.74 x 2.95 | |
| S | PN 400 | 30 | 1.5/16”–12 UN | 38.2 | 15.1 | 23.4 | 52.0 | 46 | 29.74 x 2.95 | |
| S | PN 400 | 30 | 1.5/8”–12 UN | 47.7 | 15.1 | 23.4 | 52.0 | 50 | 37.47 x 3.00 | |
| S | PN 315 | 38 | 1.5/8”–12 UN | 47.7 | 15.1 | 25.9 | 57.0 | 55 | 37.47 x 3.00 | |
| S | PN 315 | 38 | 1.7/8”–12 UN | 53.8 | 15.1 | 25.9 | 57.0 | 60 | 43.69 x 3.00 |
Series: LL = Very Light L = Light S = Heavy PN = Nominal pressure PB = Max. operating pressure Ø d2 = External pipe diameter
Series: LL = Very Light L = Light S = Heavy PN = Nominal pressure PB = Max. operating pressure Ø d2 = External pipe diameter Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
