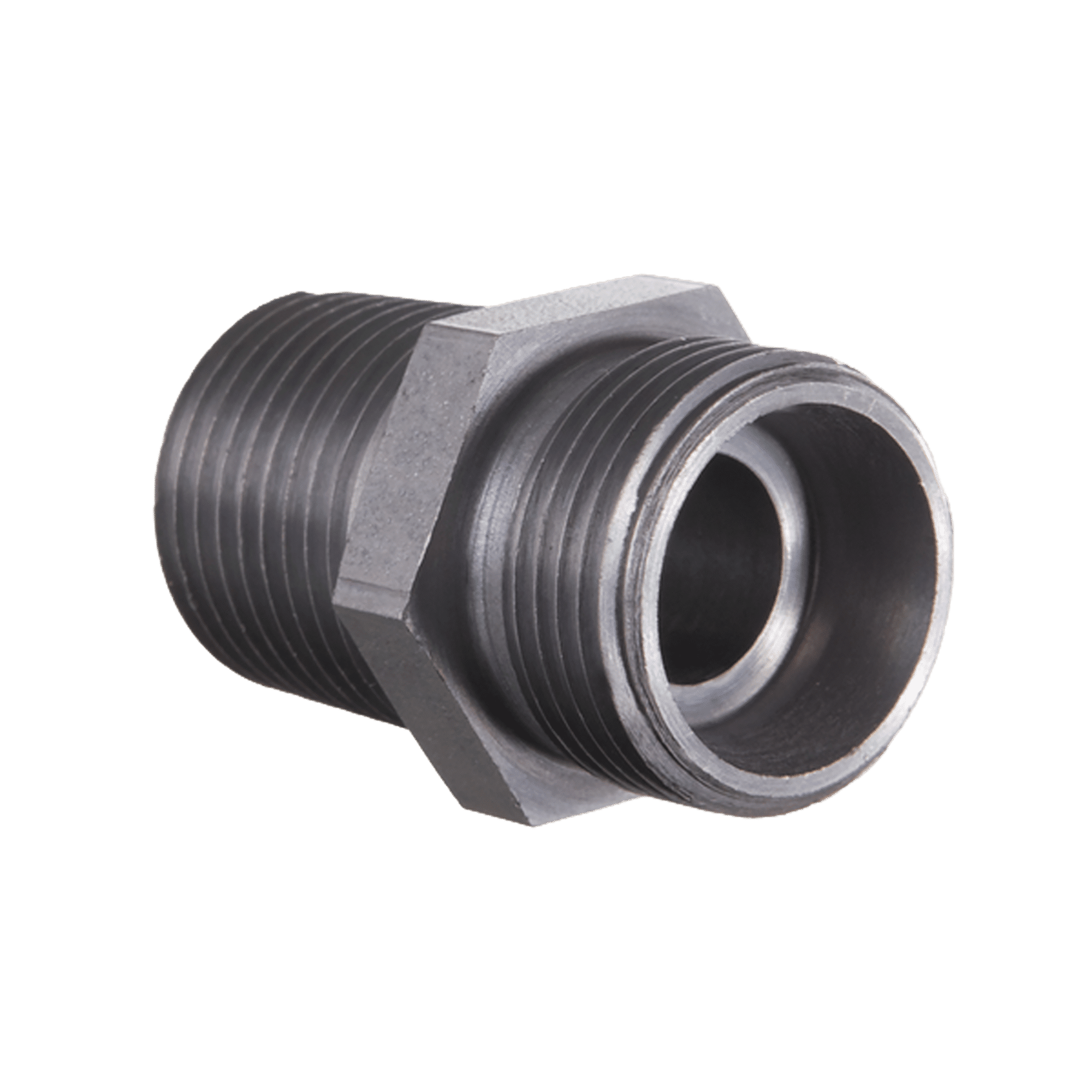

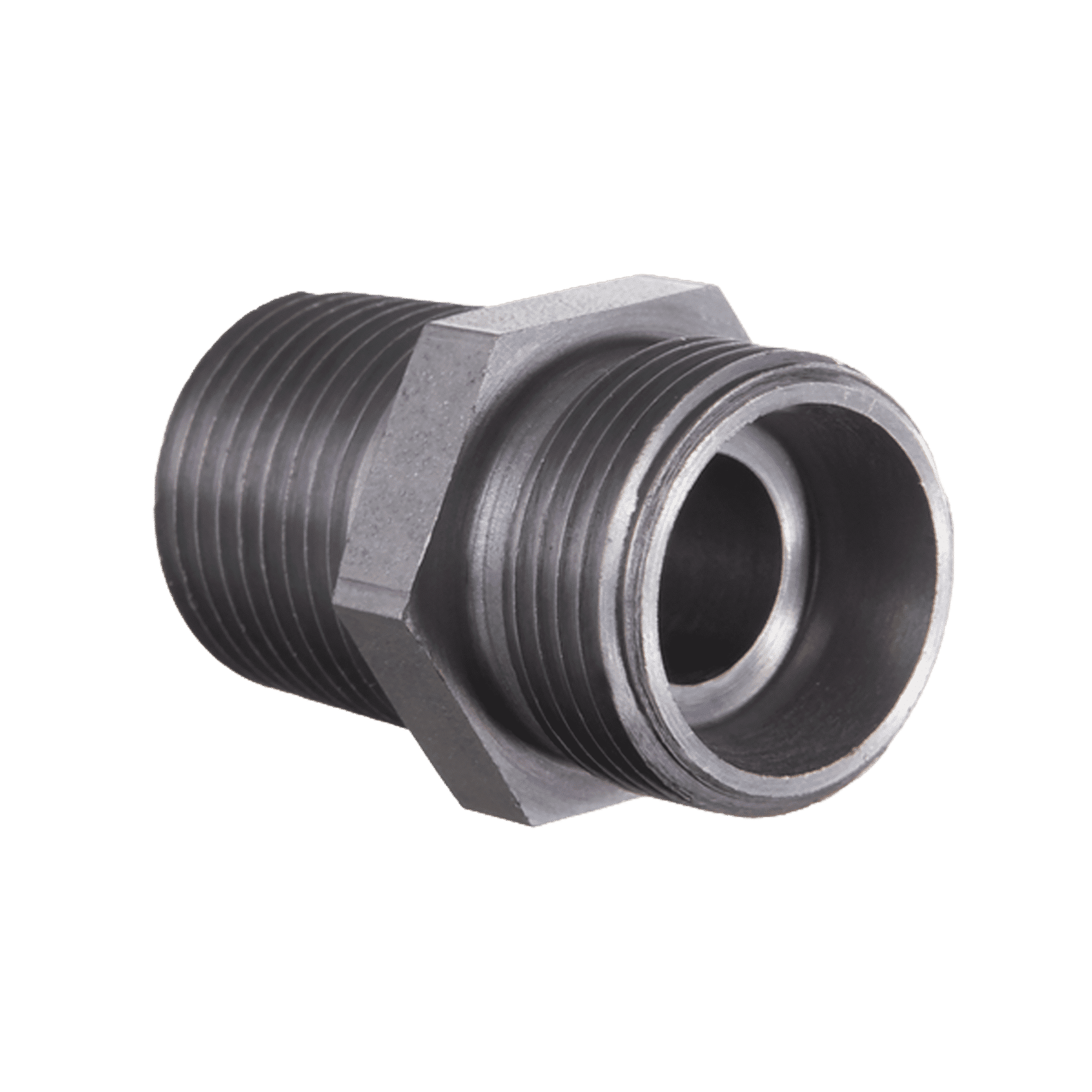

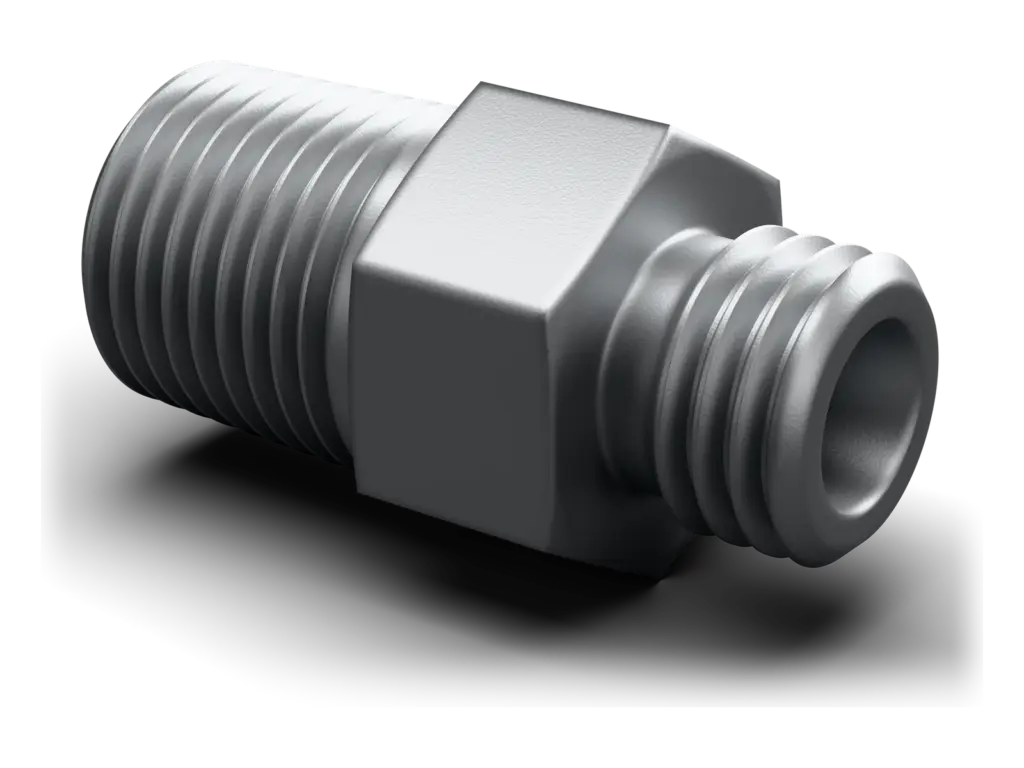

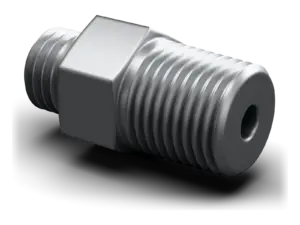

Screw-in fitting. Straight. NPT external threads to metric cylindrical outer thread. Thread seal one end, 24° inner cone the other. To DIN 2353, ISO 8434-1. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 57 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | Series | Working pressure bar | Ø d2 mm | G | i mm | L2 mm | L7 mm | SW mm |
|---|---|---|---|---|---|---|---|---|
| LL | PN 100 | 4 | 1/8”–27 NPT | 10.0 | 18.0 | 22.0 | 11 | |
| LL | PN 100 | 5 | 1/8”–27 NPT | 10.0 | 16.5 | 22.0 | 11 | |
| LL | PN 100 | 6 | 1/8”–27 NPT | 10.0 | 16.5 | 22.0 | 11 | |
| LL | PN 100 | 8 | 1/8”–27 NPT | 10.0 | 18.5 | 24.0 | 12 | |
| L | PN 315 | 6 | 1/8”–27 NPT | 10.0 | 17.0 | 24.0 | 12 | |
| L | PN 315 | 8 | 1/8”–27 NPT | 10.0 | 18.0 | 25.0 | 17 | |
| L | PN 315 | 10 | 1/8”–27 NPT | 10.0 | 19.0 | 26.0 | 17 | |
| L | PN 315 | 12 | 1/8”–27 NPT | 10.0 | 19.5 | 26.5 | 19 | |
| L | PN 315 | 6 | 1/4”–18 NPT | 15.0 | 23.0 | 30.0 | 17 | |
| L | PN 315 | 8 | 1/4”–18 NPT | 15.0 | 23.0 | 30.0 | 17 | |
| L | PN 315 | 10 | 1/4”–18 NPT | 15.0 | 24.0 | 31.0 | 17 | |
| L | PN 315 | 12 | 1/4”–18 NPT | 15.0 | 25.0 | 32.0 | 19 | |
| L | PN 315 | 15 | 1/4”–18 NPT | 15.0 | 26.0 | 33.0 | 24 | |
| L | PN 315 | 18 | 1/4”–18 NPT | 15.0 | 26.5 | 34.0 | 27 | |
| L | PN 315 | 6 | 3/8”–18 NPT | 15.3 | 24.0 | 31.0 | 19 | |
| L | PN 315 | 8 | 3/8”–18 NPT | 15.3 | 24.0 | 31.0 | 19 | |
| L | PN 315 | 10 | 3/8”–18 NPT | 15.3 | 25.0 | 32.0 | 19 | |
| L | PN 315 | 12 | 3/8”–18 NPT | 15.3 | 25.0 | 32.0 | 19 | |
| L | PN 315 | 15 | 3/8”–18 NPT | 15.3 | 26.5 | 33.5 | 24 | |
| L | PN 315 | 6 | 1/2”–14 NPT | 20.0 | 29.0 | 36.0 | 24 | |
| L | PN 315 | 8 | 1/2”–14 NPT | 20.0 | 29.0 | 36.0 | 24 | |
| L | PN 315 | 10 | 1/2”–14 NPT | 20.0 | 30.0 | 37.0 | 24 | |
| L | PN 315 | 12 | 1/2”–14 NPT | 20.0 | 30.0 | 37.0 | 24 | |
| L | PN 315 | 15 | 1/2”–14 NPT | 20.0 | 31.0 | 38.0 | 24 |
| Identification | Series | Working pressure bar | Ø d2 mm | G | i mm | L2 mm | L7 mm | SW mm |
|---|---|---|---|---|---|---|---|---|
| L | PN 315 | 18 | 1/2”–14 NPT | 20.0 | 31.5 | 39.0 | 27 | |
| L | PN 160 | 22 | 1/2”–14 NPT | 20.0 | 33.5 | 41.0 | 32 | |
| L | PN 315 | 12 | 3/4”–14 NPT | 20.2 | 31.0 | 38.0 | 27 | |
| L | PN 315 | 15 | 3/4”–14 NPT | 20.2 | 32.0 | 39.0 | 27 | |
| L | PN 315 | 18 | 3/4”–14 NPT | 20.2 | 31.5 | 39.0 | 27 | |
| L | PN 160 | 22 | 3/4”–14 NPT | 20.2 | 33.5 | 41.0 | 32 | |
| L | PN 160 | 28 | 1”–11.5 NPT | 25.0 | 39.5 | 47.0 | 41 | |
| L | PN 160 | 35 | 1”–11.5 NPT | 25.0 | 40.0 | 50.5 | 46 | |
| L | PN 160 | 35 | 1.1/4”–11.5 NPT | 25.6 | 40.5 | 51.0 | 46 | |
| L | PN 160 | 42 | 1.1/2”–11.5 NPT | 26.0 | 42.0 | 53.0 | 55 | |
| S | PN 630 | 6 | 1/4”–18 NPT | 15.0 | 28.0 | 35.0 | 17 | |
| S | PN 630 | 8 | 1/4”–18 NPT | 15.0 | 28.0 | 35.0 | 17 | |
| S | PN 630 | 10 | 1/4”–18 NPT | 15.0 | 27.5 | 35.0 | 19 | |
| S | PN 630 | 12 | 1/4”–18 NPT | 15.0 | 29.0 | 36.5 | 22 | |
| S | PN 630 | 8 | 3/8”–18 NPT | 15.3 | 28.0 | 35.0 | 19 | |
| S | PN 630 | 10 | 3/8”–18 NPT | 15.3 | 27.5 | 35.0 | 19 | |
| S | PN 630 | 12 | 3/8”–18 NPT | 15.3 | 29.5 | 37.0 | 22 | |
| S | PN 630 | 14 | 3/8”–18 NPT | 15.3 | 31.5 | 39.5 | 24 | |
| S | PN 630 | 6 | 1/2”–14 NPT | 20.0 | 35.0 | 42.0 | 24 | |
| S | PN 630 | 10 | 1/2”–14 NPT | 20.0 | 34.5 | 42.0 | 24 | |
| S | PN 630 | 12 | 1/2”–14 NPT | 20.0 | 34.5 | 42.0 | 24 | |
| S | PN 630 | 14 | 1/2”–14 NPT | 20.0 | 36.0 | 44.0 | 24 | |
| S | PN 400 | 16 | 1/2”–14 NPT | 20.0 | 35.5 | 44.0 | 27 | |
| S | PN 400 | 20 | 1/2”–14 NPT | 20.0 | 37.5 | 48.0 | 32 | |
| S | PN 400 | 16 | 3/4”–14 NPT | 20.2 | 37.5 | 46.0 | 32 | |
| S | PN 400 | 20 | 3/4”–14 NPT | 20.2 | 37.5 | 48.0 | 32 | |
| S | PN 400 | 25 | 3/4”–14 NPT | 20.2 | 40.0 | 52.0 | 41 | |
| S | PN 400 | 20 | 1”–11.5 NPT | 25.0 | 44.5 | 55.0 | 41 | |
| S | PN 400 | 25 | 1”–11.5 NPT | 25.0 | 45.0 | 57.0 | 41 | |
| S | PN 400 | 30 | 1”–11.5 NPT | 25.0 | 46.0 | 59.5 | 46 | |
| S | PN 400 | 25 | 1.1/4”–11.5 NPT | 25.6 | 46.0 | 58.0 | 46 | |
| S | PN 400 | 30 | 1.1/4”–11.5 NPT | 25.6 | 46.5 | 60.0 | 46 | |
| S | PN 315 | 38 | 1.1/2”–11.5 NPT | 26.0 | 49.0 | 65.0 | 55 |
Series: LL = Very Light L = Light S = Heavy PN = Nominal pressure PB = Max. operating pressure Ø d2 = External pipe diameter Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
