Compression Fittings

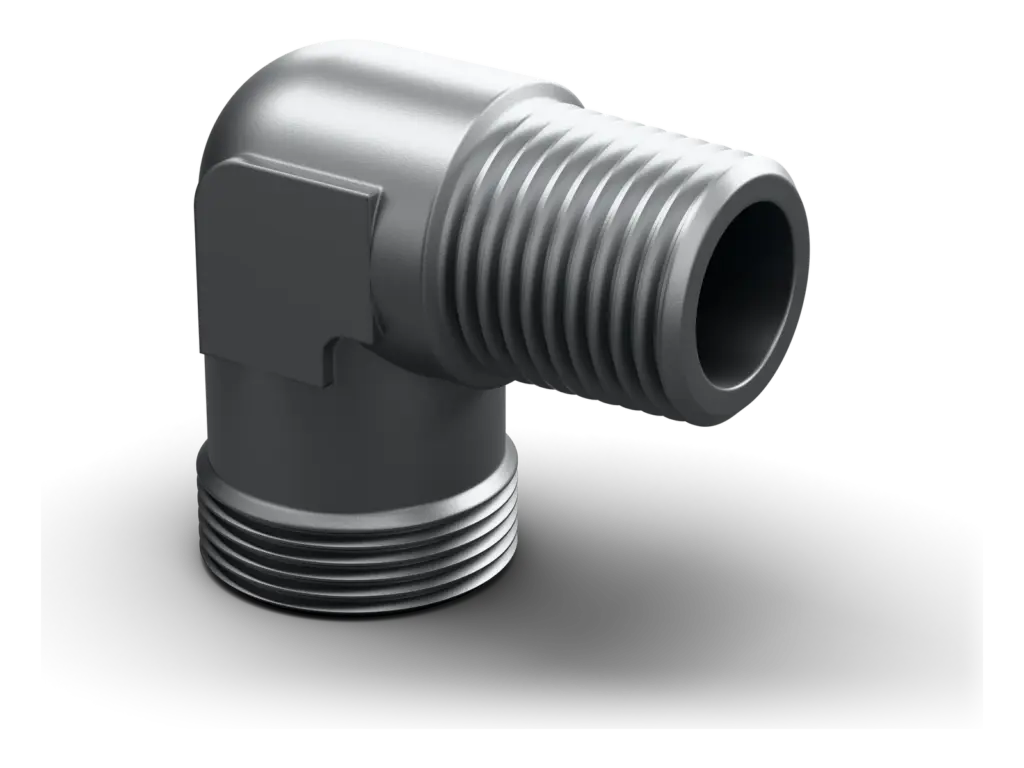

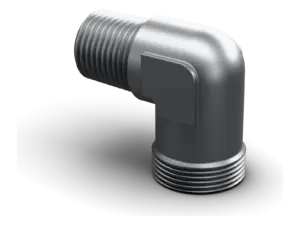

Metric Male / NP Tapered Male 90

Metric Male / NP Tapered Male 90

Screw-in fitting, angle 90°. NPT external threads to metric cylindrical outer thread. Thread seal one end, 24° inner cone the other. To DIN 2353, ISO 8434-1. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 34 sizes, each with its own part number.

34sizes
NTM-MLLM-90C-0208-MC to NTM-MHM-90C-2452-MC
Request a priceData sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

StandardDIN 2353, ISO 8434-1
SurfaceMotusCoat™
MaterialSteel

Pick your size

Tick the sizes you need, then request a price.

IdentificationSeriesWorking pressure barExternal pipe Ø mmGi mmL4 mmL5 mmL7 mmSW mm
LLPN 10041/8”–27 NPT8.011.01715.09
LLPN 10051/8”–27 NPT8.011.01715.09
LLPN 10061/8”–27 NPT8.09.51715.09
LLPN 10081/8”–27 NPT10.011.52017.012
LPN 31561/8”–27 NPT10.012.02019.012
LPN 31561/4”–18 NPT12.014.02621.012
LPN 31581/4”–18 NPT12.014.02621.012
LPN 315101/4”–18 NPT14.015.02722.014
LPN 315121/4”–18 NPT14.017.02824.017
LPN 31583/8”–18 NPT15.211.52018.512
LPN 315103/8”–18 NPT15.215.02722.014
LPN 315123/8”–18 NPT12.517.02824.017
LPN 315153/8”–18 NPT13.021.03428.019
LPN 31561/2”–14 NPT17.023.03430.019
LPN 31581/2”–14 NPT17.515.02622.012
LPN 315121/2”–14 NPT19.023.03430.019
LPN 315151/2”–14 NPT18.521.03428.019
LPN 315181/2”–14 NPT20.023.53631.024
LPN 315183/4”–14 NPT18.523.54031.024
LPN 160223/4”–14 NPT18.527.54235.027
LPN 160281”–11.5 NPT24.030.54838.036
IdentificationSeriesWorking pressure barExternal pipe Ø mmGi mmL4 mmL5 mmL7 mmSW mm
LPN 160351.1/4”–11.5 NPT25.534.55445.041
LPN 160421.1/2”–11.5 NPT26.040.06151.050
SPN 63061/4”–18 NPT12.016.02623.012
SPN 63081/4”–18 NPT15.017.02724.014
SPN 630103/8”–18 NPT12.017.52825.017
SPN 630123/8”–18 NPT12.521.52829.017
SPN 630141/2”–14 NPT18.022.03430.019
SPN 400161/2”–14 NPT19.024.53633.024
SPN 400163/4”–14 NPT20.024.54033.024
SPN 400203/4”–14 NPT20.026.64237.027
SPN 400251”–11.5 NPT24.030.04842.036
SPN 400301.1/4”–11.5 NPT25.535.55449.041
SPN 315381.1/2”–11.5 NPT26.041.06157.050

Series: LL = Very Light L = Light S = Heavy PN = Nominal pressure PB = Max. operating pressure Ø d2 = External pipe diameter Product Version: Stainless Steel (SS)

The details

Connection 1
NPT external threads
Sealing form 1
Thread seal
Connection 2
Metric cylindrical outer thread
Sealing form 2
24° inner cone
Design
Screw-in fitting
Construction
Angle 90°
Standard
DIN 2353, ISO 8434-1
Included in scope of supply
Socket (without union nut and cutting ring)
Material
Steel
Surface
MotusCoat™

Downloads

Metric Male / NP Tapered Male 90 data sheetPDF, matches the catalogueDownload
Surface

MotusCoat™

In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.

Competitor coating after 1000-hour salt spray testing
A fitting with a competitor coating, covered in red rust

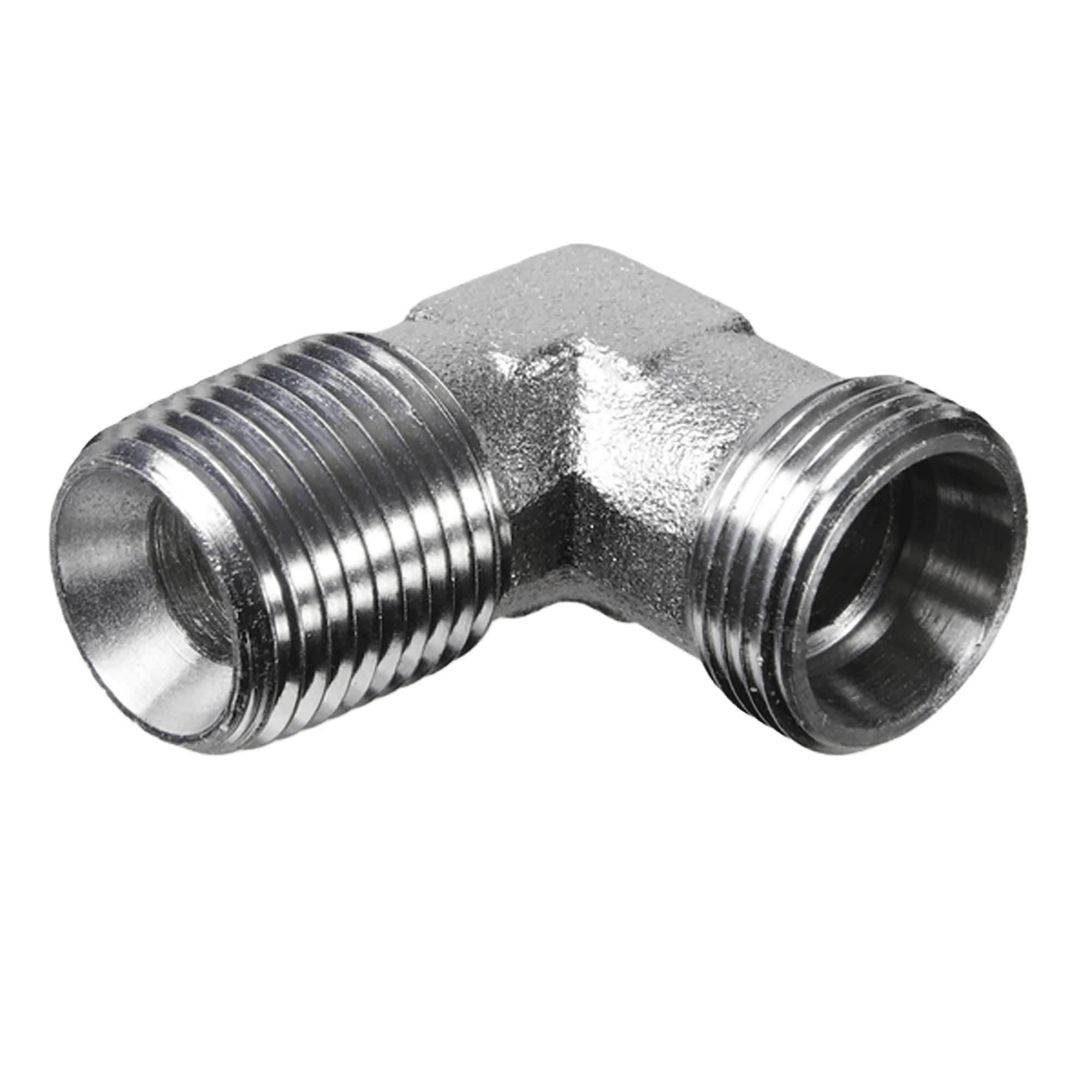

A fitting with MotusCoat, with no red rust
MotusCoat™After a 1000-hour salt spray test according to DIN EN ISO 9227
