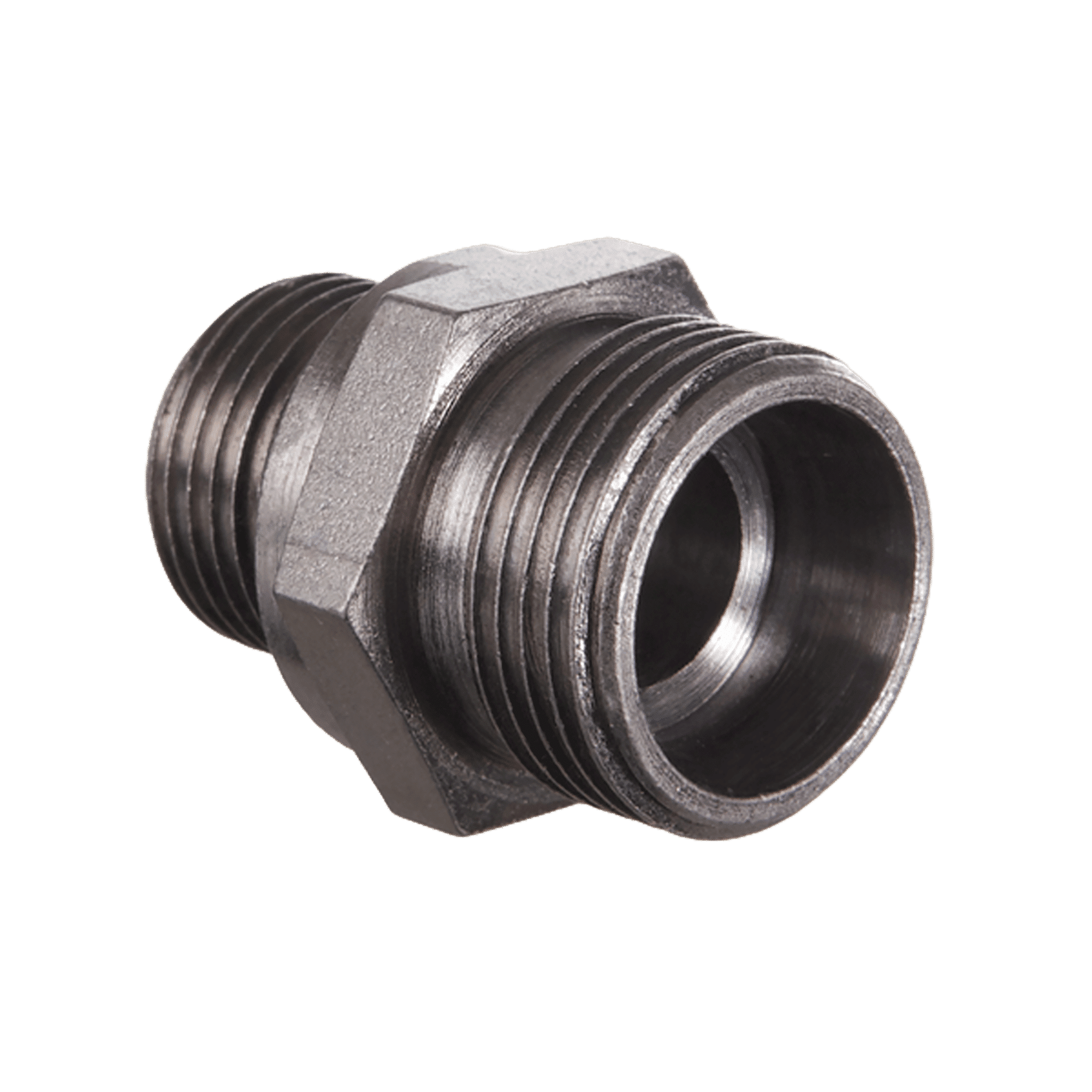

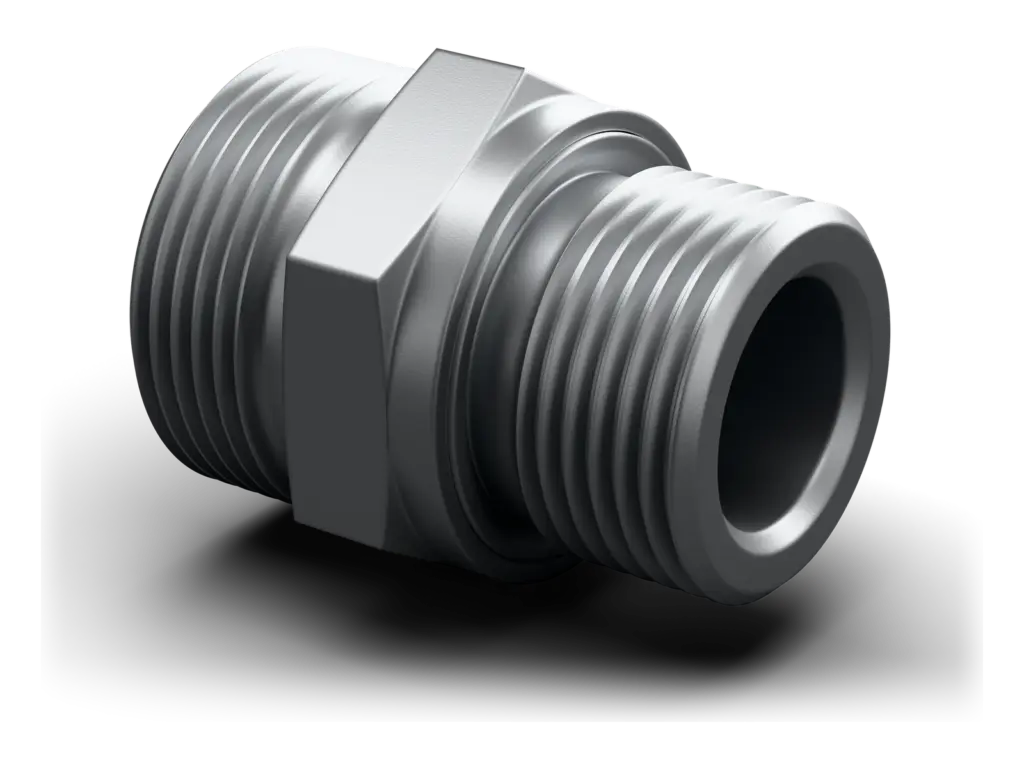

Screw-in fitting. Straight. Metric cylindrical outer thread at both ends. Shape E one end, 24° inner cone the other. To DIN 2353, ISO 8434-1. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 36 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | Series | Working pressure bar | Ø d2 mm | G1 | G2 | Ø d3 mm | i mm | L1 mm | L2 mm | SW mm |
|---|---|---|---|---|---|---|---|---|---|---|
| L | PN 315 | 6 | M 10 x 1 | M 12 x 1.5 | 13.9 | 8 | 23.5 | 8.5 | 14 | |
| L | PN 315 | 6 | M 12 x 1.5 | M 12 x 1.5 | 16.9 | 12 | 28.0 | 9.0 | 17 | |
| L | PN 315 | 8 | M 12 x 1.5 | M 14 x 1.5 | 16.9 | 12 | 29.0 | 10.0 | 17 | |
| L | PN 315 | 10 | M 12 x 1.5 | M 16 x 1.5 | 16.9 | 12 | 30.0 | 11.0 | 19 | |
| L | PN 315 | 10 | M 14 x 1.5 | M 16 x 1.5 | 18.9 | 12 | 30.0 | 11.0 | 19 | |
| L | PN 315 | 12 | M 14 x 1.5 | M 18 x 1.5 | 18.9 | 12 | 31.5 | 12.5 | 22 | |
| L | PN 315 | 8 | M 16 x 1.5 | M 14 x 1.5 | 21.9 | 12 | 30.5 | 11.5 | 22 | |
| L | PN 315 | 10 | M 16 x 1.5 | M 16 x 1.5 | 21.9 | 12 | 31.5 | 12.5 | 22 | |
| L | PN 315 | 12 | M 16 x 1.5 | M 18 x 1.5 | 21.9 | 12 | 31.5 | 12.5 | 22 | |
| L | PN 315 | 15 | M 16 x 1.5 | M 22 x 1.5 | 21.9 | 12 | 32.0 | 13.0 | 24 | |
| L | PN 315 | 8 | M 18 x 1.5 | M 14 x 1.5 | 23.9 | 12 | 30.5 | 11.5 | 24 | |
| L | PN 315 | 10 | M 18 x 1.5 | M 16 x 1.5 | 23.9 | 12 | 31.5 | 12.5 | 24 | |
| L | PN 315 | 12 | M 18 x 1.5 | M 18 x 1.5 | 23.9 | 12 | 32.0 | 13.0 | 24 | |
| L | PN 315 | 15 | M 18 x 1.5 | M 22 x 1.5 | 23.9 | 12 | 32.5 | 13.5 | 24 | |
| L | PN 315 | 18 | M 18 x 1.5 | M 26 x 1.5 | 23.9 | 12 | 33.5 | 14.0 | 27 | |
| L | PN 315 | 10 | M 22 x 1.5 | M 16 x 1.5 | 26.9 | 14 | 35.0 | 14.0 | 27 | |
| L | PN 315 | 12 | M 22 x 1.5 | M 18 x 1.5 | 26.9 | 14 | 35.0 | 14.0 | 27 | |
| L | PN 315 | 15 | M 22 x 1.5 | M 22 x 1.5 | 26.9 | 14 | 35.0 | 14.0 | 27 | |
| L | PN 315 | 18 | M 22 x 1.5 | M 26 x 1.5 | 26.9 | 14 | 36.0 | 14.5 | 27 | |
| L | PN 160 | 22 | M 22 x 1.5 | M 30 x 2 | 26.9 | 14 | 38.0 | 16.5 | 32 | |
| L | PN 160 | 22 | M 26 x 1.5 | M 30 x 2 | 31.9 | 16 | 40.0 | 16.5 | 32 |
| Identification | Series | Working pressure bar | Ø d2 mm | G1 | G2 | Ø d3 mm | i mm | L1 mm | L2 mm | SW mm |
|---|---|---|---|---|---|---|---|---|---|---|
| L | PN 160 | 28 | M 33 x 2 | M 36 x 2 | 39.9 | 18 | 43.0 | 17.5 | 41 | |
| L | PN 160 | 35 | M 42 x 2 | M 45 x 2 | 49.9 | 20 | 48.0 | 17.5 | 50 | |
| L | PN 160 | 42 | M 48 x 2 | M 52 x 2 | 54.9 | 22 | 52.0 | 19.0 | 55 | |
| S | PN 630 | 6 | M 12 x 1.5 | M 14 x 1.5 | 16.9 | 12 | 32.0 | 13.0 | 17 | |
| S | PN 630 | 8 | M 14 x 1.5 | M 16 x 1.5 | 18.9 | 12 | 34.0 | 15.0 | 19 | |
| S | PN 630 | 10 | M 16 x 1.5 | M 18 x 1.5 | 21.9 | 12 | 34.5 | 15.0 | 22 | |
| S | PN 630 | 12 | M 18 x 1.5 | M 20 x 1.5 | 23.9 | 12 | 36.5 | 17.0 | 24 | |
| S | PN 400 | 16 | M 18 x 1.5 | M 24 x 1.5 | 23.9 | 12 | 38.5 | 18.0 | 27 | |
| S | PN 630 | 14 | M 20 x 1.5 | M 22 x 1.5 | 25.9 | 14 | 41.0 | 19.0 | 27 | |
| S | PN 400 | 12 | M 22 x 1.5 | M 20 x 1.5 | 26.9 | 14 | 39.0 | 17.5 | 27 | |
| S | PN 400 | 16 | M 22 x 1.5 | M 24 x 1.5 | 26.9 | 14 | 41.0 | 18.5 | 27 | |
| S | PN 400 | 20 | M 27 x 2 | M 30 x 2 | 31.9 | 16 | 47.0 | 20.5 | 32 | |
| S | PN 400 | 25 | M 33 x 2 | M 36 x 2 | 39.9 | 18 | 53.0 | 23.0 | 41 | |
| S | PN 400 | 30 | M 42 x 2 | M 42 x 2 | 49.9 | 20 | 57.0 | 23.5 | 50 | |
| S | PN 315 | 38 | M 48 x 2 | M 52 x 2 | 54.9 | 22 | 64.0 | 26.0 | 55 |
Series: LL = Very Light L = Light S = Heavy PN = Nominal pressure PB = Max. operating pressure Ø d2 = External pipe diameter
Series: LL = Very Light L = Light S = Heavy PN = Nominal pressure PB = Max. operating pressure Ø d2 = External pipe diameter Product Version: Stainless Steel (SS)
