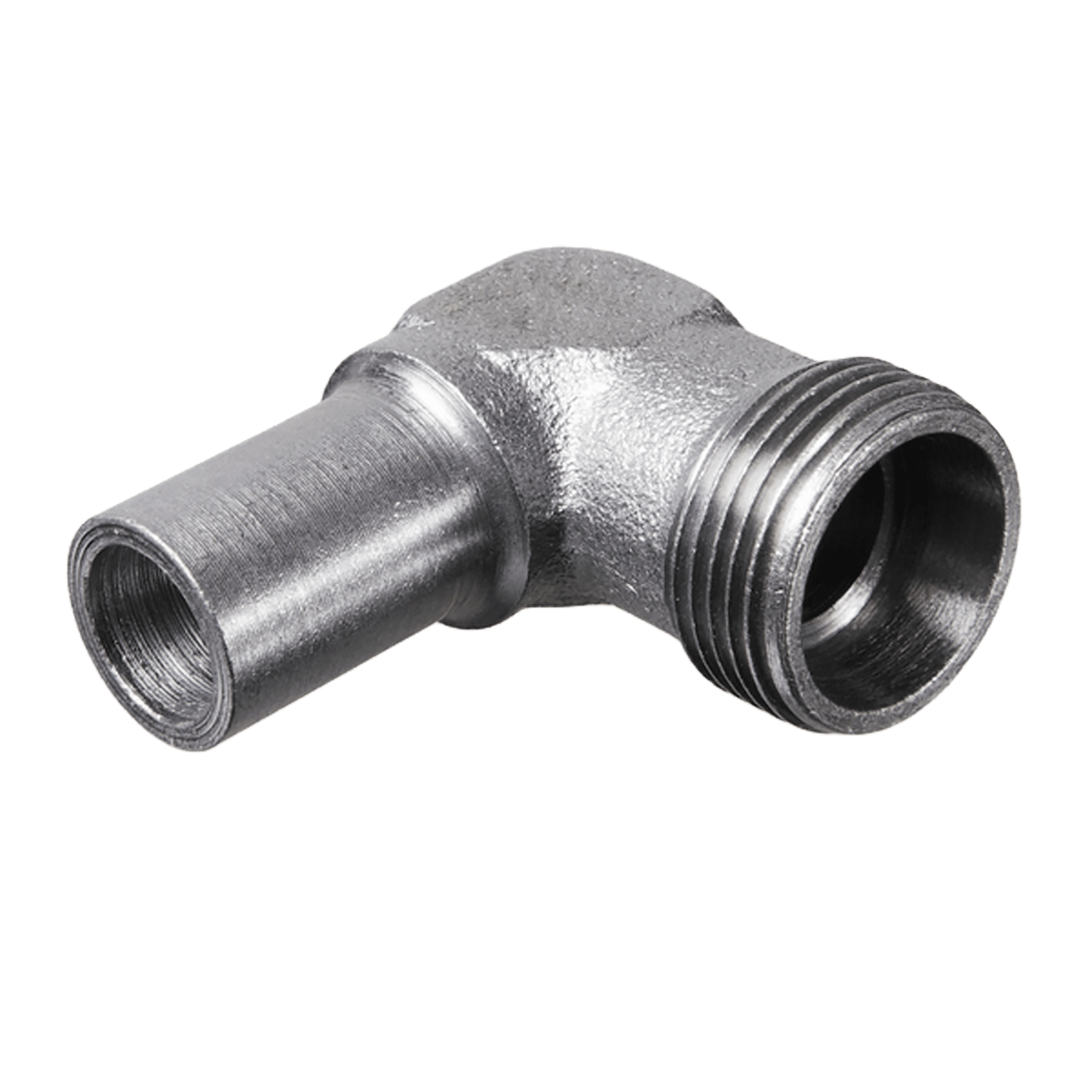

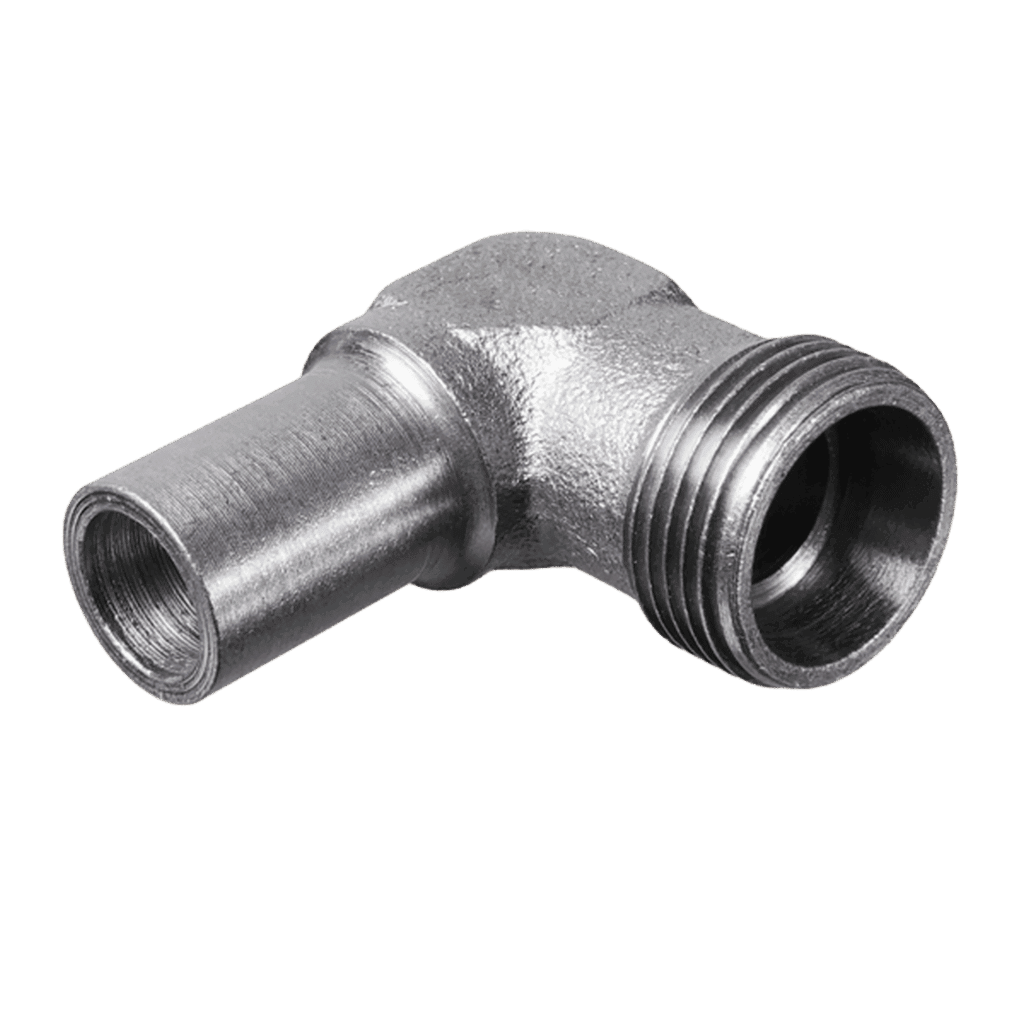

Metric Male / Metric Standpipe 90

Name: Metric Male / Metric Standpipe 90
Brand: Motus Hydraulics
SKU: METRIC-MALE-METRIC-STANDPIPE-90

Fitting, angle 90°. Adjustable direction fitting. Pipe socket not pre-assembled to metric cylindrical outer thread. Cutting ring connection one end, 24° inner cone the other. To ISO 8434-1. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 20 sizes, each with its own part number.

20sizes
MSP-MLM-90C-0612-MC to MSP-MHM-90C-3852-MC

Request a price Data sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

StandardISO 8434-1

SurfaceMotusCoat™

MaterialSteel

Pick your size

Tick the sizes you need, then request a price.

Filter the sizes

Identification	Series	Working pressure bar	Ø d2 mm	M	L1 mm	L2 mm	L7 mm	SW mm	S1 mm
MSP-MLM-90C-0612-MC	L	PN 315	6	M 12 x 1.5	26.0	12.0	19	12	14
MSP-MLM-90C-0814-MC	L	PN 315	8	M 14 x 1.5	27.5	14.0	21	12	17
MSP-MLM-90C-1016-MC	L	PN 315	10	M 16 x 1.5	29.0	15.0	22	14	19
MSP-MLM-90C-1218-MC	L	PN 315	12	M 18 x 1.5	29.5	17.0	24	17	22
MSP-MLM-90C-1522-MC	L	PN 315	15	M 22 x 1.5	32.5	21.0	28	19	27
MSP-MLM-90C-1826-MC	L	PN 315	18	M 26 x 1.5	35.5	23.5	31	24	32
MSP-MLM-90C-2230-MC	L	PN 160	22	M 30 x 2	38.5	27.5	35	27	36
MSP-MLM-90C-2836-MC	L	PN 160	28	M 36 x 2	42.0	30.5	38	36	41
MSP-MLM-90C-3545-MC	L	PN 160	35	M 45 x 2	51.0	34.5	45	41	50
MSP-MLM-90C-4252-MC	L	PN 160	42	M 52 x 2	60.0	40.0	51	50	60
MSP-MHM-90C-0614-MC	S	PN 630	6	M 14 x 1.5	27.0	16.0	23	12	17
MSP-MHM-90C-0816-MC	S	PN 630	8	M 16 x 1.5	27.5	17.0	24	14	19
MSP-MHM-90C-1018-MC	S	PN 630	10	M 18 x 1.5	31.0	17.5	25	17	22
MSP-MHM-90C-1220-MC	S	PN 630	12	M 20 x 1.5	31.0	21.5	29	17	24
MSP-MHM-90C-1422-MC	S	PN 630	14	M 22 x 1.5	35.0	22.0	30	19	27
MSP-MHM-90C-1624-MC	S	PN 400	16	M 24 x 1.5	34.5	24.5	33	24	30
MSP-MHM-90C-2030-MC	S	PN 400	20	M 30 x 2	44.5	26.5	37	27	36
MSP-MHM-90C-2536-MC	S	PN 400	25	M 36 x 2	50.0	30.0	42	36	46
MSP-MHM-90C-3042-MC	S	PN 400	30	M 42 x 2	55.0	35.5	49	41	50
MSP-MHM-90C-3852-MC	S	PN 315	38	M 52 x 2	66.5	41.0	57	50	60

Series: LL = Very Light L = Light S = Heavy PN = Nominal pressure PB = Max. operating pressure Ø d2 = External pipe diameter Product Version: Stainless Steel (SS)

The details

Connection 1: Pipe socket not pre-assembled
Sealing form 1: Cutting ring connection
Connection 2: Metric cylindrical outer thread
Sealing form 2: 24° inner cone
Design: Adjustable direction fitting
Construction: Angle 90°
Standard: ISO 8434-1
Included in scope of supply: Socket (without union nut and cutting ring)
Material: Steel
Surface: MotusCoat™

Downloads

Metric Male / Metric Standpipe 90 data sheetPDF, matches the catalogueDownload

Surface

MotusCoat™

In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.

A fitting with a competitor coating, covered in red rust — Competitor coating after 1000-hour salt spray testing

A fitting with MotusCoat, with no red rust — **MotusCoat™**After a 1000-hour salt spray test according to DIN EN ISO 9227
