Metric Male / BSPP Male Positional 90

Metric Male / BSPP Male Positional 90

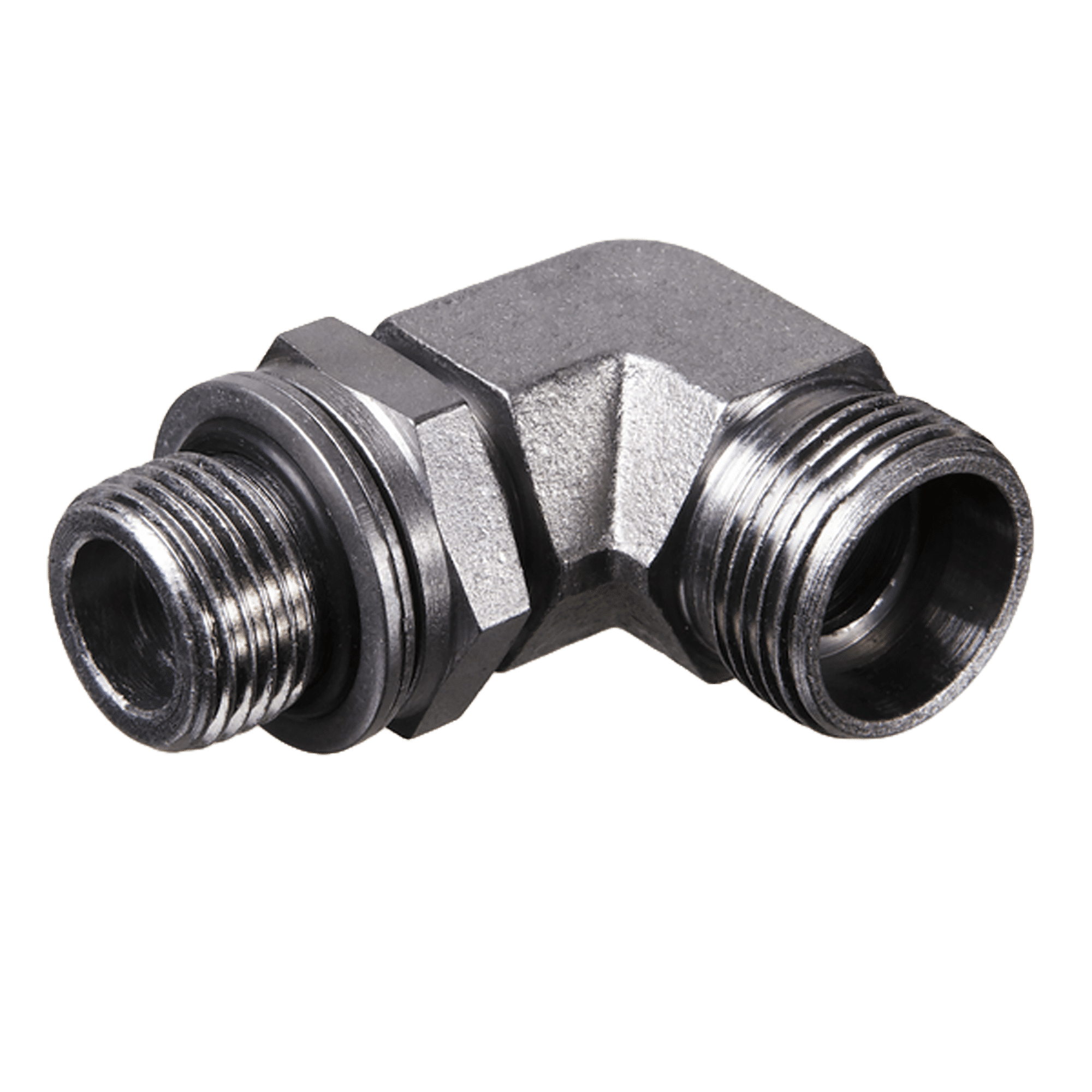

Screw-in fitting, angle 90°. Adjustable direction screw-in fitting. BSP external thread, cylindrical to metric cylindrical outer thread. O-ring and spacer diaphragm ring one end, 24° inner cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 23 sizes, each with its own part number.

23sizes
BPP-MLLM-90C-0208-MC to BPP-MHM-90C-2452-MC
Request a priceData sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

SurfaceMotusCoat™
MaterialSteel

Pick your size

Tick the sizes you need, then request a price.

IdentificationSeriesWorking pressure barØ d2 mmG1G2i mmL4 mmL5 mmL7 mmSW mmS1OR
LLPN 2504G 1/8”–28M 8 x 17.111.3201511147.65 x 1.78
LLPN 2506G 1/8”–28M 10 x 17.111.3201511147.65 x 1.78
LPN 3156G 1/8”–28M 12 x 1.57.014.0192114147.65 x 1.78
LPN 3158G 1/4”–19M 14 x 1.59.016.02323141910.78 x 2.62
LPN 31510G 1/4”–19M 16 x 1.59.017.02524191910.77 x 2.62
LPN 3158G 3/8”–19M 14 x 1.59.016.02323192213.94 x 2.62
LPN 25012G 3/8”–19M 18 x 1.59.019.02826192213.94 x 2.62
LPN 25015G 1/2”–14M 22 x 1.513.021.03028222717.86 x 2.62
LPN 25018G 1/2”–14M 26 x 1.513.024.03631272717.86 x 2.62
LPN 16022G 3/4”–14M 30 x 213.028.03635303623.47 x 2.62
LPN 16028G 1”–11M 36 x 215.031.04438364129.74 x 3.53
LPN 16035G 1.1/4”–11M 45 x 215.038.05048505037.69 x 3.53
LPN 16042G 1.1/2”–11M 52 x 215.038.05249505544.04 x 3.53
SPN 3156G 1/4”–19M 14 x 1.59.015.02322141910.77 x 2.62
SPN 3158G 1/4”–19M 16 x 1.59.017.02724191910.77 x 2.62
SPN 25010G 3/8”–19M 18 x 1.59.018.02925192213.94 x 2.62
SPN 25012G 3/8”–19M 20 x 1.59.022.02929222213.94 x 2.62
SPN 25014G 1/2”–14M 22 x 1.513.025.03633272718.00 x 3.00
SPN 25016G 1/2”–14M 24 x 1.513.025.03633272717.86 x 2.62
SPN 25020G 3/4”–14M 30 x 212.028.03938303623.47 x 2.62
SPN 25025G 1”–11M 36 x 214.030.04442364129.74 x 3.53
SPN 16030G 1.1/4”–11M 42 x 215.036.04949505037.69 x 3.53
SPN 16038G 1.1/2”–11M 52 x 215.034.05550505544.04 x 3.53

Series: LL = Very Light L = Light S = Heavy PN = Nominal pressure PB = Max. operating pressure Ø d2 = External pipe diameter Product Version: Stainless Steel (SS)

The details

Connection 1
BSP external thread, cylindrical
Sealing form 1
O-ring and spacer diaphragm ring
Connection 2
Metric cylindrical outer thread
Sealing form 2
24° inner cone
Design
Adjustable direction screw-in fitting
Construction
Angle 90°
Included in scope of supply
Socket (without union nut and cutting ring)
Material
Steel
Surface
MotusCoat™

Downloads

Metric Male / BSPP Male Positional 90 data sheetPDF, matches the catalogueDownload
Surface

MotusCoat™

In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.

Competitor coating after 1000-hour salt spray testing
A fitting with a competitor coating, covered in red rust
A fitting with MotusCoat, with no red rust
MotusCoat™After a 1000-hour salt spray test according to DIN EN ISO 9227
