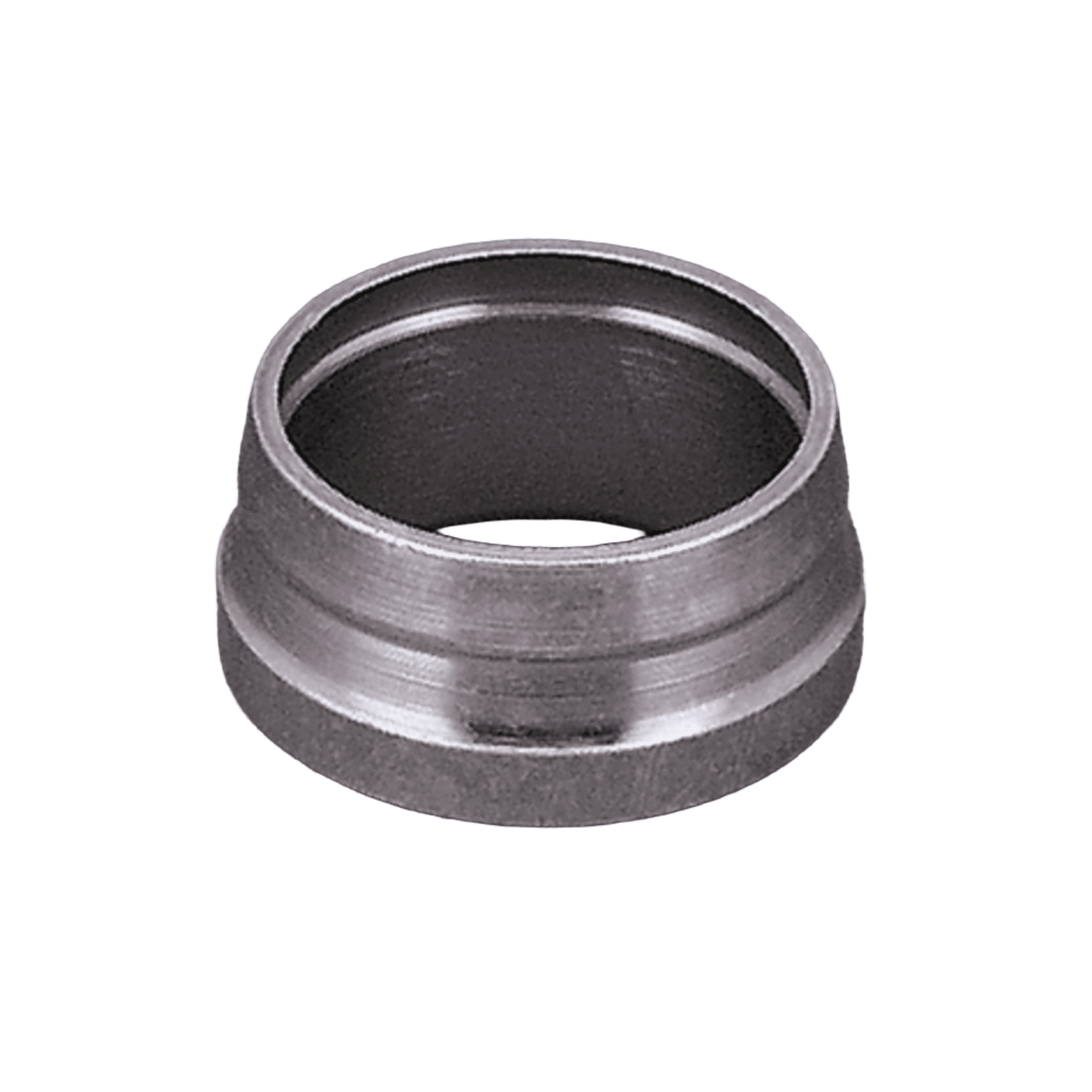

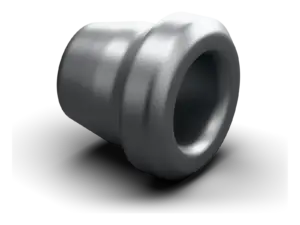

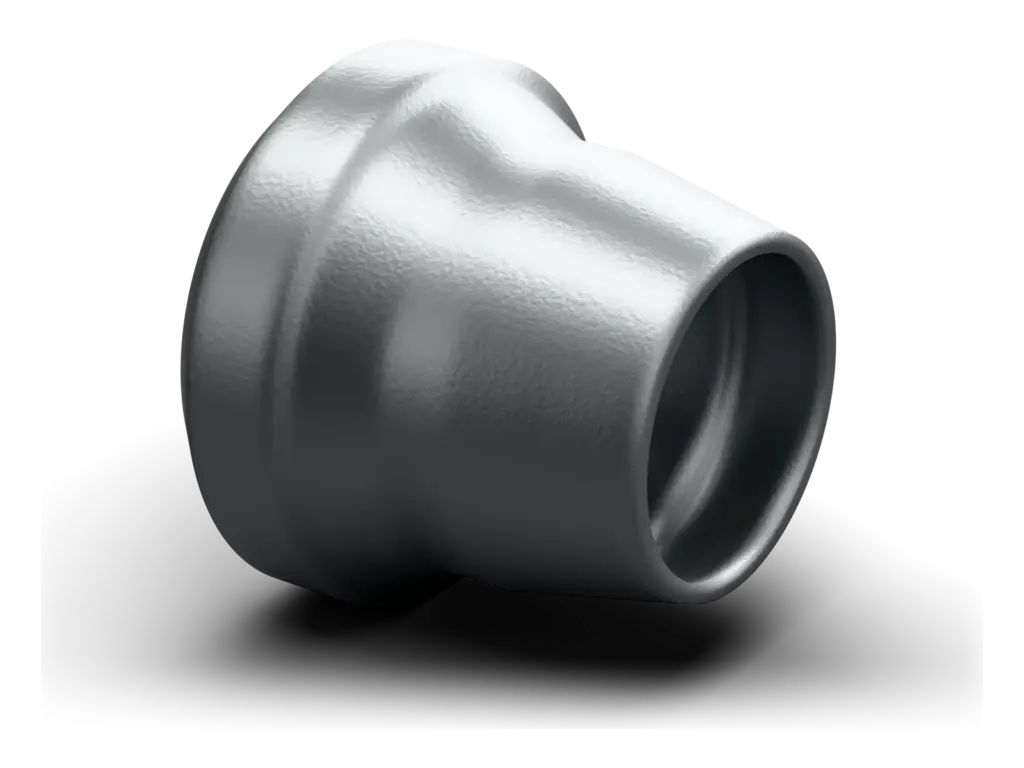

Cutting ring. To DIN 3861 shape B. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 24 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | Series | Ø d2 mm | L1 mm |
|---|---|---|---|
| LL | 4 | 6.0 | |
| LL | 5 | 7.0 | |
| LL | 6 | 7.0 | |
| LL | 8 | 7.0 | |
| LL | 10 | 7.0 | |
| LL | 12 | 7.5 | |
| LL | 16 | 9.0 | |
| L / S | 6 | 9.5 | |
| L / S | 8 | 9.5 | |
| L / S | 10 | 10.0 | |
| L / S | 12 | 10.0 | |
| S | 14 | 10.0 | |
| L | 15 | 10.0 | |
| S | 16 | 10.5 | |
| L | 18 | 10.0 | |
| S | 20 | 12.5 | |
| L | 22 | 10.5 | |
| S | 25 | 12.5 | |
| L | 28 | 10.5 | |
| S | 30 | 13.0 | |
| L | 35 | 13.0 | |
| S | 38 | 13.5 | |
| L | 42 | 13.0 | |
| L | 65 | 21.2 |
Series: LL = Very Light L = Light S = Heavy PN = Nominal pressure PB = Max. operating pressure Ø d2 = External pipe diameter Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
