Compression Fittings

Metric Female / Metric Female (GZ)

Metric Female / Metric Female (GZ)

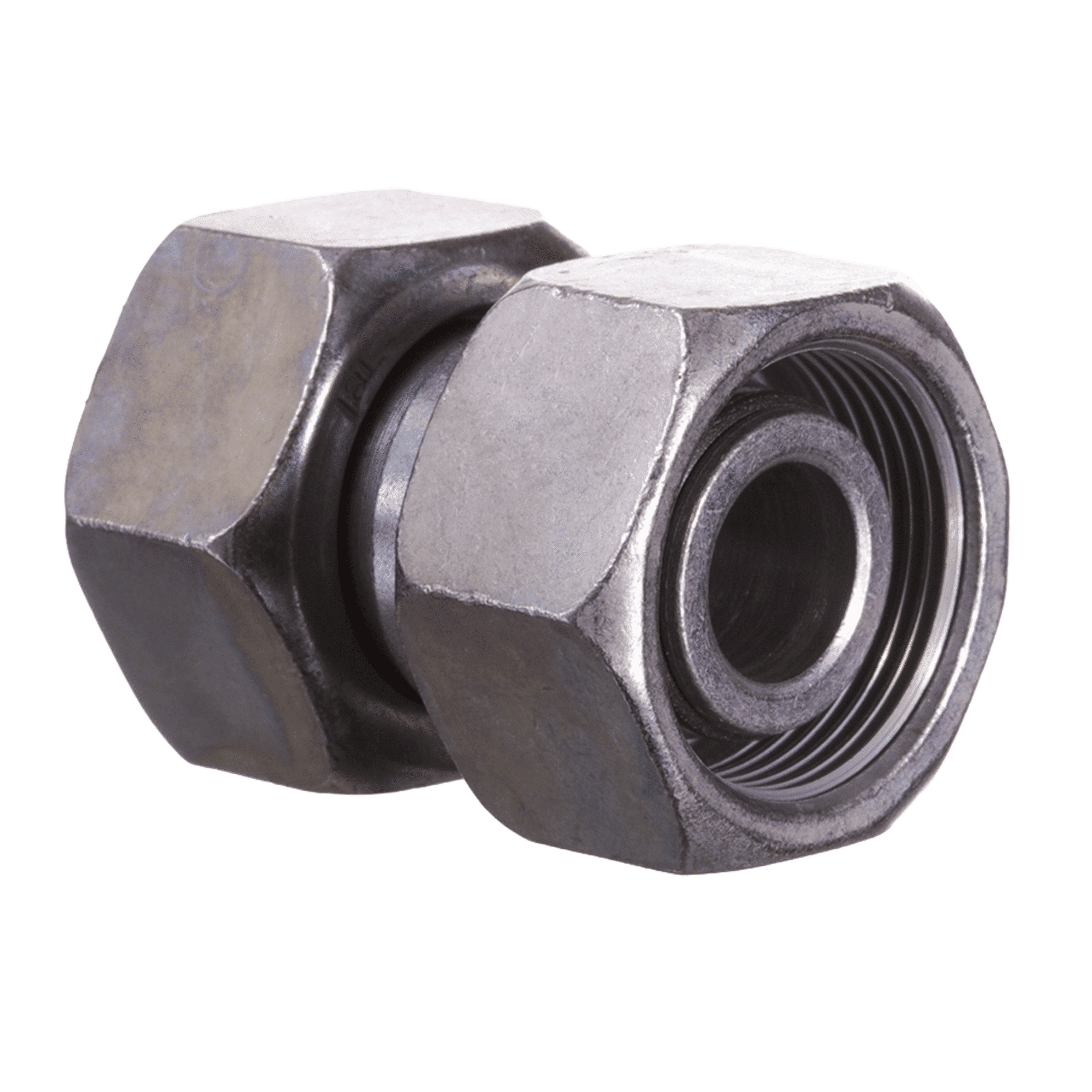

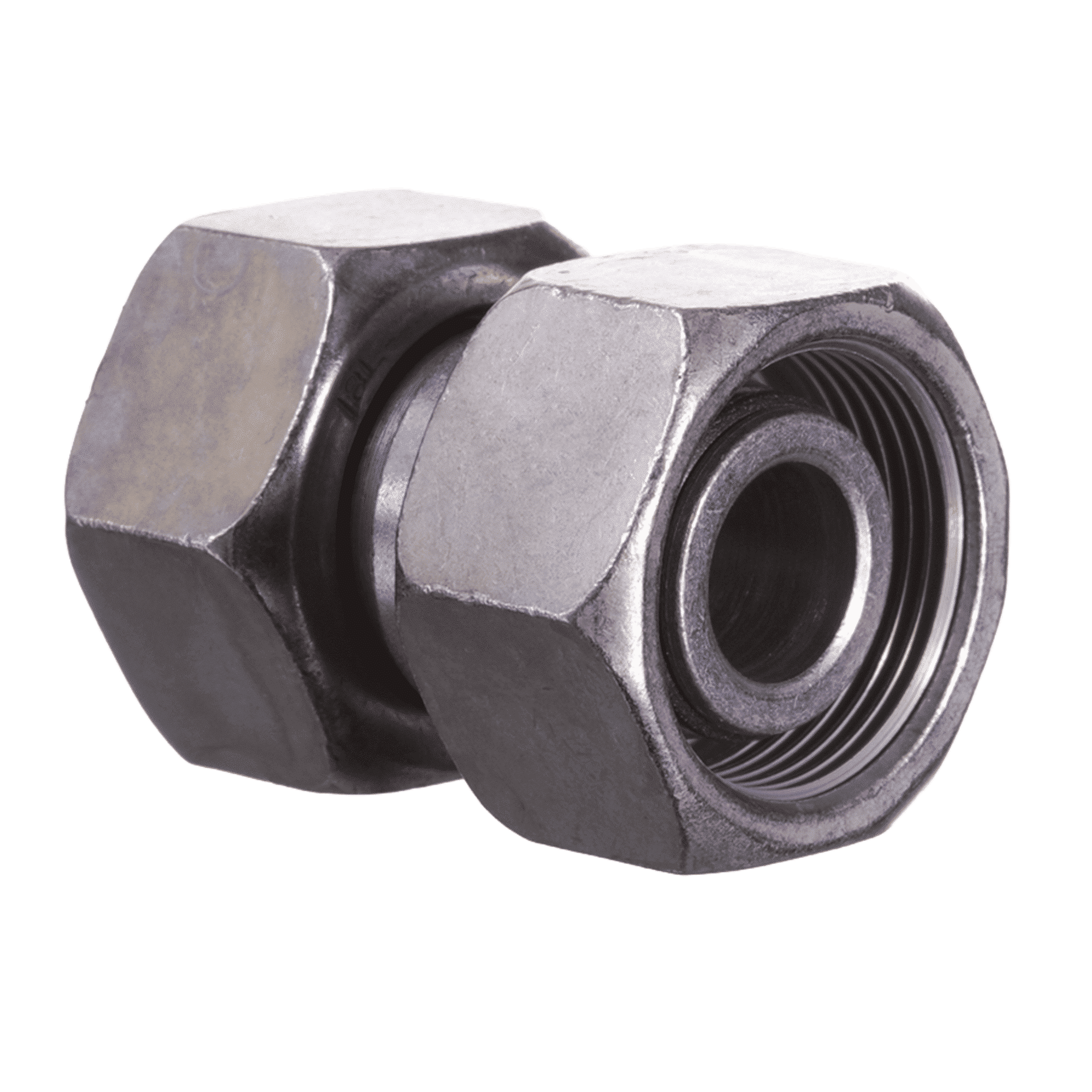

Fitting, double nut. Fitting, double nuts. Straight. Metric nut thread at both ends. 24° outer cone with O-ring. To DIN 2353, ISO 8434-1. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 115 sizes, each with its own part number.

115sizes
MLF-MLF-1212-MC to MHF-MHF-5252-MC
Request a priceData sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

StandardDIN 2353, ISO 8434-1
SurfaceMotusCoat™
MaterialSteel

Pick your size

Tick the sizes you need, then request a price.

IdentificationWorking pressureØ d1 mmØ d2 mmG1G2L mmS1 mmS2 mmOR1OR2
PN 31566M 12 x 1.5M 12 x 1.532.014144.0 x 1.54.0 x 1.5
PN 31568M 12 x 1.5M 14 x 1.532.014174.0 x 1.56.0 x 1.5
PN 315610M 12 x 1.5M 16 x 1.533.014194.0 x 1.57.5 x 1.5
PN 315612M 12 x 1.5M 18 x 1.533.014224.0 x 1.59.0 x 1.5
PN 31588M 14 x 1.5M 14 x 1.532.017176.0 x 1.56.0 x 1.5
PN 315810M 14 x 1.5M 16 x 1.533.017196.0 x 1.57.5 x 1.5
PN 315812M 14 x 1.5M 18 x 1.533.017226.0 x 1.59.0 x 1.5
PN 315815M 14 x 1.5M 22 x 1.534.517276.0 x 1.512.0 x 2.0
PN 315818M 14 x 1.5M 26 x 1.536.017326.0 x 1.515.0 x 2.0
PN 3151010M 16 x 1.5M 16 x 1.534.019197.5 x 1.57.5 x 1.5
PN 3151012M 16 x 1.5M 18 x 1.533.019227.5 x 1.59.0 x 1.5
PN 3151015M 16 x 1.5M 22 x 1.538.019277.5 x 1.512.0 x 2.0
PN 3151018M 16 x 1.5M 26 x 1.536.019327.5 x 1.515.0 x 2.0
PN 3151212M 18 x 1.5M 18 x 1.534.522229.0 x 1.59.0 x 1.5
PN 3151215M 18 x 1.5M 22 x 1.538.022279.0 x 1.512.0 x 2.0
PN 3151218M 18 x 1.5M 26 x 1.536.022329.0 x 1.515.0 x 2.0
PN 1601222M 18 x 1.5M 30 x 240.022369.0 x 1.520.0 x 2.0
PN 3151515M 22 x 1.5M 22 x 1.537.0272712.0 x 2.012.0 x 2.0
PN 3151518M 22 x 1.5M 26 x 1.536.0273212.0 x 2.015.0 x 2.0
PN 1601522M 22 x 1.5M 30 x 242.0273612.0 x 2.020.0 x 2.0
PN 1601528M 22 x 1.5M 36 x 246.0274112.0 x 2.026.0 x 2.0
PN 3151818M 26 x 1.5M 26 x 1.538.5323215.0 x 2.015.0 x 2.0
PN 1601822M 26 x 1.5M 30 x 242.0323615.0 x 2.020.0 x 2.0
PN 1601828M 26 x 1.5M 36 x 246.0324115.0 x 2.026.0 x 2.0
PN 1601835M 26 x 1.5M 45 x 245.0325015.0 x 2.032.0 x 2.5
PN 1602222M 30 x 2M 30 x 242.5363620.0 x 2.020.0 x 2.0
IdentificationWorking pressureØ d1 mmØ d2 mmG1G2L mmS1 mmS2 mmOR1OR2
PN 1602228M 30 x 2M 36 x 246.0364120.0 x 2.026.0 x 2.0
PN 1602235M 30 x 2M 45 x 248.0365020.0 x 2.032.0 x 2.5
PN 1602242M 30 x 2M 52 x 247.5366020.0 x 2.038.0 x 2.5
PN 1602828M 36 x 2M 36 x 244.5414126.0 x 2.026.0 x 2.0
PN 1602835M 36 x 2M 45 x 248.0415026.0 x 2.032.0 x 2.5
PN 1602842M 36 x 2M 52 x 252.0416026.0 x 2.038.0 x 2.5
PN 1603535M 45 x 2M 45 x 251.0505032.0 x 2.532.0 x 2.5
PN 1603542M 45 x 2M 52 x 251.5506032.0 x 2.538.0 x 2.5
PN 1604242M 52 x 2M 52 x 252.0606038.0 x 2.538.0 x 2.5
PN 31566M 12 x 1.5M 14 x 1.533.514174.0 x 1.54.0 x 1.5
PN 31568M 12 x 1.5M 16 x 1.533.014194.0 x 1.56.0 x 1.5
PN 315610M 12 x 1.5M 18 x 1.535.514224.0 x 1.57.5 x 1.5
PN 315612M 12 x 1.5M 20 x 1.538.014244.0 x 1.59.0 x 1.5
PN 31586M 14 x 1.5M 14 x 1.532.017176.0 x 1.54.0 x 1.5
PN 31588M 14 x 1.5M 16 x 1.533.017196.0 x 1.56.0 x 1.5
PN 315810M 14 x 1.5M 18 x 1.533.017226.0 x 1.57.5 x 1.5
PN 315812M 14 x 1.5M 20 x 1.536.017246.0 x 1.59.0 x 1.5
PN 315816M 14 x 1.5M 24 x 1.539.017306.0 x 1.512.0 x 2.0
PN 315106M 16 x 1.5M 14 x 1.533.019177.5 x 1.54.0 x 1.5
PN 315108M 16 x 1.5M 16 x 1.533.019197.5 x 1.56.0 x 1.5
PN 3151010M 16 x 1.5M 18 x 1.533.019227.5 x 1.57.5 x 1.5
PN 3151012M 16 x 1.5M 20 x 1.536.019247.5 x 1.59.0 x 1.5
PN 3151014M 16 x 1.5M 22 x 1.539.019277.5 x 1.510.0 x 2.0
PN 3151016M 16 x 1.5M 24 x 1.539.019307.5 x 1.512.0 x 2.0
PN 3151210M 18 x 1.5M 18 x 1.533.022229.0 x 1.57.5 x 1.5
PN 3151212M 18 x 1.5M 20 x 1.536.022249.0 x 1.59.0 x 1.5
PN 3151214M 18 x 1.5M 22 x 1.539.022279.0 x 1.510.0 x 2.0
PN 3151216M 18 x 1.5M 24 x 1.539.022309.0 x 1.512.0 x 2.0
PN 3151220M 18 x 1.5M 30 x 236.022369.0 x 1.516.3 x 2.4
PN 3151510M 22 x 1.5M 18 x 1.538.0272212.0 x 2.07.5 x 1.5
PN 3151512M 22 x 1.5M 20 x 1.538.0272412.0 x 2.09.0 x 1.5
PN 3151514M 22 x 1.5M 22 x 1.538.0272712.0 x 2.010.0 x 2.0
PN 3151516M 22 x 1.5M 24 x 1.539.0273012.0 x 2.012.0 x 2.0
PN 3151520M 22 x 1.5M 30 x 244.0273612.0 x 2.016.3 x 2.4
PN 3151525M 22 x 1.5M 36 x 247.5274612.0 x 2.020.3 x 2.4
PN 3151812M 26 x 1.5M 20 x 1.538.0322415.0 x 2.09.0 x 1.5
PN 3151814M 26 x 1.5M 22 x 1.541.0322715.0 x 2.010.0 x 2.0
PN 3151816M 26 x 1.5M 24 x 1.539.0323015.0 x 2.012.0 x 2.0
PN 3151820M 26 x 1.5M 30 x 244.0323615.0 x 2.016.3 x 2.4
PN 3151825M 26 x 1.5M 36 x 248.0324615.0 x 2.020.3 x 2.4
PN 3151830M 26 x 1.5M 42 x 250.0325015.0 x 2.025.3 x 2.4
PN 1602216M 30 x 2M 24 x 1.542.0363020.0 x 2.012.0 x 2.0
PN 1602220M 30 x 2M 30 x 244.0363620.0 x 2.016.3 x 2.4
PN 1602225M 30 x 2M 36 x 246.0364620.0 x 2.020.3 x 2.4
PN 1602230M 30 x 2M 42 x 252.0365020.0 x 2.025.3 x 2.4
PN 1602238M 30 x 2M 52 x 252.0366020.0 x 2.033.3 x 2.4
IdentificationWorking pressureØ d1 mmØ d2 mmG1G2L mmS1 mmS2 mmOR1OR2
PN 1602816M 36 x 2M 24 x 1.546.0413026.0 x 2.012.0 x 2.0
PN 1602820M 36 x 2M 30 x 246.0413626.0 x 2.016.3 x 2.4
PN 1602825M 36 x 2M 36 x 246.0414626.0 x 2.020.3 x 2.4
PN 1602830M 36 x 2M 42 x 252.0415026.0 x 2.025.3 x 2.4
PN 1602838M 36 x 2M 52 x 251.0416026.0 x 2.033.3 x 2.4
PN 1603520M 45 x 2M 30 x 248.0503632.0 x 2.516.3 x 2.4
PN 1603525M 45 x 2M 36 x 248.0504632.0 x 2.520.3 x 2.4
PN 1603530M 45 x 2M 42 x 252.0505032.0 x 2.525.3 x 2.4
PN 1603538M 45 x 2M 52 x 252.0506032.0 x 2.533.3 x 2.4
PN 1604230M 52 x 2M 42 x 252.0605038.0 x 2.525.3 x 2.4
PN 1604238M 52 x 2M 52 x 252.0606038.0 x 2.533.3 x 2.4
PN 63066M 14 x 1.5M 14 x 1.535.017174.0 x 1.54.0 x 1.5
PN 63068M 14 x 1.5M 16 x 1.533.017194.0 x 1.56.0 x 1.5
PN 630610M 14 x 1.5M 18 x 1.532.017224.0 x 1.57.5 x 1.5
PN 630612M 14 x 1.5M 20 x 1.537.517244.0 x 1.59.0 x 1.5
PN 63088M 16 x 1.5M 16 x 1.535.019196.0 x 1.56.0 x 1.5
PN 630810M 16 x 1.5M 18 x 1.533.019226.0 x 1.57.5 x 1.5
PN 630812M 16 x 1.5M 20 x 1.536.019246.0 x 1.59.0 x 1.5
PN 6301010M 18 x 1.5M 18 x 1.539.022227.5 x 1.57.5 x 1.5
PN 6301012M 18 x 1.5M 20 x 1.536.022247.5 x 1.59.0 x 1.5
PN 6301014M 18 x 1.5M 22 x 1.539.022277.5 x 1.510.0 x 2.0
PN 4001016M 18 x 1.5M 24 x 1.539.022307.5 x 1.512.0 x 2.0
PN 6301212M 20 x 1.5M 20 x 1.540.024249.0 x 1.59.0 x 1.5
PN 6301214M 20 x 1.5M 22 x 1.539.024279.0 x 1.510.0 x 2.0
PN 4001216M 20 x 1.5M 24 x 1.539.024309.0 x 1.512.0 x 2.0
IdentificationWorking pressureØ d1 mmØ d2 mmG1G2L mmS1 mmS2 mmOR1OR2
PN 4001220M 20 x 1.5M 30 x 239.024369.0 x 1.516.3 x 2.4
PN 6301414M 22 x 1.5M 22 x 1.543.0272710.0 x 2.010.0 x 2.0
PN 4001416M 22 x 1.5M 24 x 1.539.0273010.0 x 2.012.0 x 2.0
PN 4001420M 22 x 1.5M 30 x 244.0273610.0 x 2.016.3 x 2.4
PN 4001616M 24 x 1.5M 24 x 1.544.0303012.0 x 2.012.0 x 2.0
PN 4001620M 24 x 1.5M 30 x 244.0303612.0 x 2.016.3 x 2.4
PN 4001625M 24 x 1.5M 36 x 246.0304612.0 x 2.020.3 x 2.4
PN 4001630M 24 x 1.5M 42 x 252.0305012.0 x 2.025.3 x 2.4
PN 4002020M 30 x 2M 30 x 253.5363616.3 x 2.416.3 x 2.4
PN 4002025M 30 x 2M 36 x 246.0364616.3 x 2.420.3 x 2.4
PN 4002030M 30 x 2M 42 x 252.0365016.3 x 2.425.3 x 2.4
PN 3152038M 30 x 2M 52 x 252.0366016.3 x 2.433.3 x 2.4
PN 4002525M 36 x 2M 36 x 257.5464620.3 x 2.420.3 x 2.4
PN 4002530M 36 x 2M 42 x 252.0465020.3 x 2.425.3 x 2.4
PN 3152538M 36 x 2M 52 x 252.0466020.3 x 2.433.3 x 2.4
PN 4003030M 42 x 2M 42 x 260.5505025.3 x 2.425.3 x 2.4
PN 3153038M 42 x 2M 52 x 252.0506025.3 x 2.433.3 x 2.4
PN 3153838M 52 x 2M 52 x 265.5606033.3 x 2.433.3 x 2.4

Series: LL = Very Light L = Light S = Heavy PN = Nominal pressure PB = Max. operating pressure Ø d2 = External pipe diameter

Series: LL = Very Light L = Light S = Heavy PN = Nominal pressure PB = Max. operating pressure Ø d2 = External pipe diameter Product Version: Stainless Steel (SS)

The details

Connection 1
Metric nut thread
Sealing form 1
24° outer cone with O-ring
Connection 2
Metric nut thread
Sealing form 2
24° outer cone with O-ring
Design
Fitting, double nuts
Construction
Straight
Standard
DIN 2353, ISO 8434-1
Material
Steel
Surface
MotusCoat™

Downloads

Metric Female / Metric Female (GZ) data sheetPDF, matches the catalogueDownload
Surface

MotusCoat™

In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.

Competitor coating after 1000-hour salt spray testing
A fitting with a competitor coating, covered in red rust
A fitting with MotusCoat, with no red rust
MotusCoat™After a 1000-hour salt spray test according to DIN EN ISO 9227
