Metric Female / BSP Parallel Male (EVGE – R – ED)

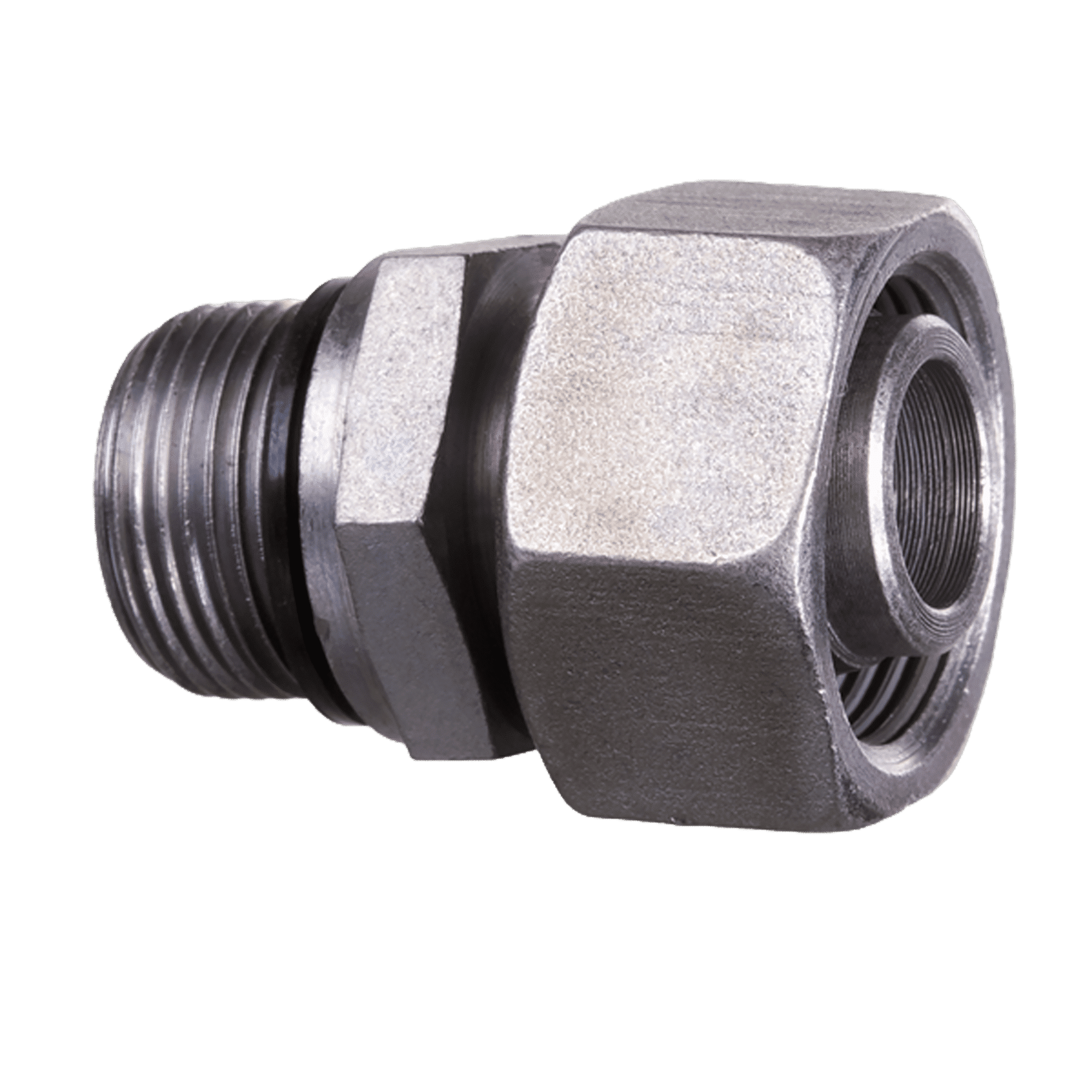

Name: Metric Female / BSP Parallel Male (EVGE – R – ED)
Brand: Motus Hydraulics
SKU: METRIC-FEMALE-BSP-PARALLEL-MALE-173

Screw-in fitting. Straight. BSP external thread, cylindrical to metric nut thread. Shape E one end, pipe socket with cutting ring the other. To DIN 2353, ISO 8434-1. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 24 sizes, each with its own part number.

24sizes
EDB-MLF-0212-MC to EDB-MHF-2452-MC

Request a price Data sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

StandardDIN 2353, ISO 8434-1

SurfaceMotusCoat™

MaterialSteel

Pick your size

Tick the sizes you need, then request a price.

Filter the sizes

Identification	Series	Working pressure bar	Ø d2 mm	G1	G2	Ø d3 mm	i mm	L2 mm	SW mm	S1 mm
EDB-MLF-0212-MC	L	PN 315	6	G 1/8”–28	M 12 x 1.5	13.9	8	24.5	14	14
EDB-MLF-0414-MC	L	PN 315	8	G 1/4”–19	M 14 x 1.5	18.9	12	27.0	19	17
EDB-MLF-0416-MC	L	PN 315	10	G 1/4”–19	M 16 x 1.5	18.9	12	27.5	19	19
EDB-MLF-0418-MC	L	PN 315	12	G 1/4”–19	M 18 x 1.5	18.9	12	28.5	19	22
EDB-MLF-0618-MC	L	PN 315	12	G 3/8”–19	M 18 x 1.5	21.9	12	30.0	22	22
EDB-MLF-0622-MC	L	PN 315	15	G 3/8”–19	M 22 x 1.5	21.9	12	30.0	22	27
EDB-MLF-0818-MC	L	PN 315	12	G 1/2”–14	M 18 x 1.5	26.9	14	30.5	27	22
EDB-MLF-0822-MC	L	PN 315	15	G 1/2”–14	M 22 x 1.5	26.9	14	30.5	27	27
EDB-MLF-0826-MC	L	PN 315	18	G 1/2”–14	M 26 x 1.5	26.9	14	31.5	27	32
EDB-MLF-1230-MC	L	PN 160	22	G 3/4”–14	M 30 x 2	31.9	16	32.5	32	36
EDB-MLF-1636-MC	L	PN 160	28	G 1”–11	M 36 x 2	39.9	18	35.0	41	41
EDB-MLF-2045-MC	L	PN 160	35	G 1.1/4”–11	M 45 x 2	49.9	20	42.5	50	50
EDB-MLF-2452-MC	L	PN 160	42	G 1.1/2”–11	M 52 x 2	54.9	22	47.0	55	60
EDB-MHF-0414-MC	S	PN 630	6	G 1/4”–19	M 14 x 1.5	18.9	12	27.0	19	17
EDB-MHF-0416-MC	S	PN 630	8	G 1/4”–19	M 16 x 1.5	18.9	12	27.0	19	19
EDB-MHF-0618-MC	S	PN 630	10	G 3/8”–19	M 18 x 1.5	21.9	12	32.0	22	22
EDB-MHF-0620-MC	S	PN 630	12	G 3/8”–19	M 20 x 1.5	21.9	12	32.0	22	24
EDB-MHF-0820-MC	S	PN 630	12	G 1/2”–14	M 20 x 1.5	26.9	14	35.0	27	24
EDB-MHF-0822-MC	S	PN 630	14	G 1/2”–14	M 22 x 1.5	26.9	14	36.5	27	27
EDB-MHF-0824-MC	S	PN 400	16	G 1/2”–14	M 24 x 1.5	26.9	14	37.0	27	30
EDB-MHF-1230-MC	S	PN 400	20	G 3/4”–14	M 30 x 2	31.9	16	43.0	32	36
EDB-MHF-1636-MC	S	PN 400	25	G 1”–11	M 36 x 2	39.9	18	48.0	41	46
EDB-MHF-2042-MC	S	PN 400	30	G 1.1/4”–11	M 42 x 2	49.9	20	51.0	50	50
EDB-MHF-2452-MC	S	PN 315	38	G 1.1/2”–11	M 52 x 2	54.9	22	60.0	55	60

Series: LL = Very Light L = Light S = Heavy PN = Nominal pressure PB = Max. operating pressure Ø d2 = External pipe diameter Product Version: Stainless Steel (SS)

The details

Connection 1: BSP external thread, cylindrical
Sealing form 1: Shape E
Connection 2: Metric nut thread
Sealing form 2: Pipe socket with cutting ring
Design: Screw-in fitting
Construction: Straight
Standard: DIN 2353, ISO 8434-1
Included in scope of supply: Pipe socket with union nut and preassembled cutting ring
Material: Steel
Surface: MotusCoat™

Downloads

Metric Female / BSP Parallel Male (EVGE – R – ED) data sheetPDF, matches the catalogueDownload

Surface

MotusCoat™

In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.

A fitting with a competitor coating, covered in red rust — Competitor coating after 1000-hour salt spray testing

A fitting with MotusCoat, with no red rust — **MotusCoat™**After a 1000-hour salt spray test according to DIN EN ISO 9227

Goes with

Metric Female / Metric Female (GZ)115 sizes

Metric Female / Metric Male (RED)206 sizes

Metric Hex Plug14 sizes
