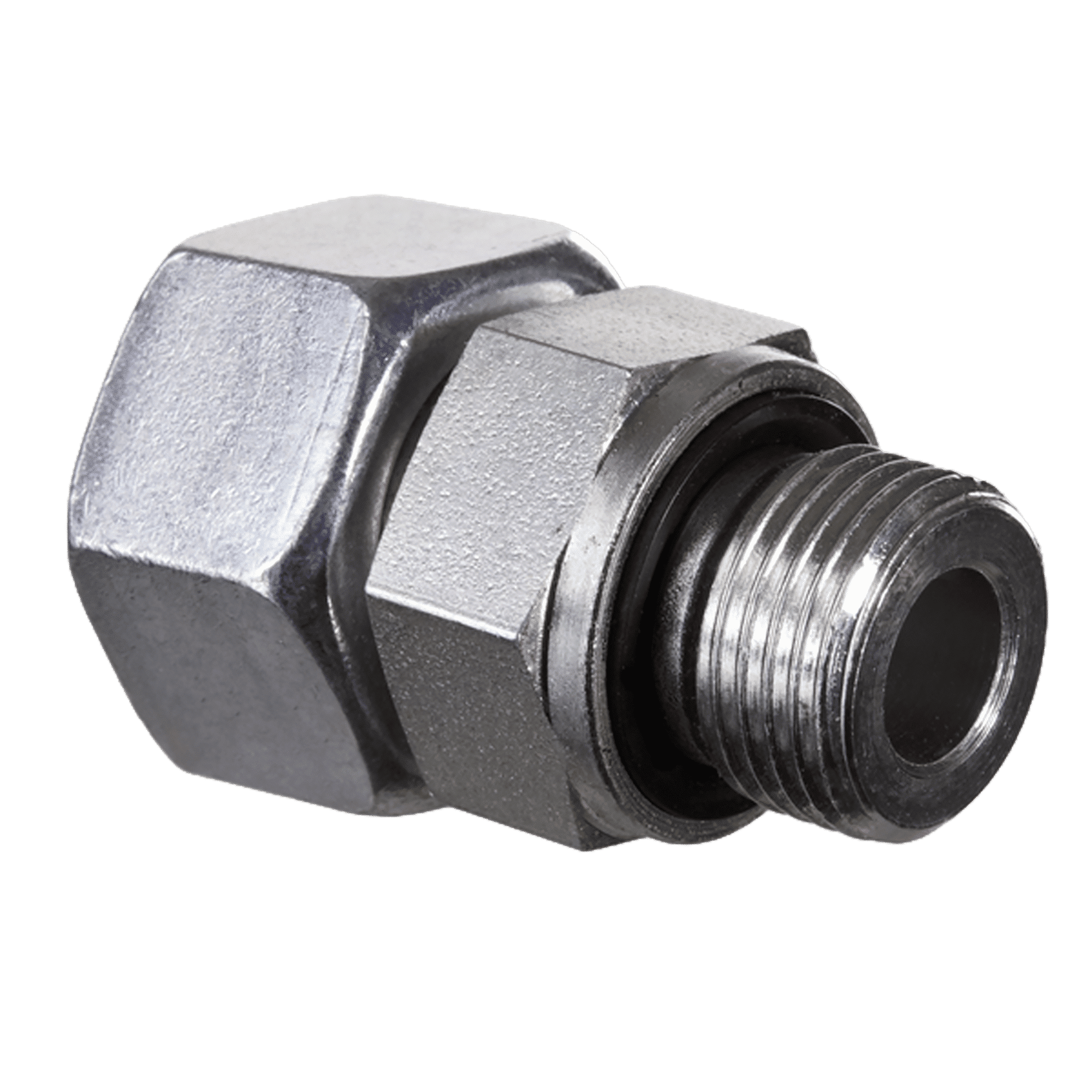

Screw-in fitting. Straight. Metric nut thread to bSP cylindrical external threads. 24° outer cone with O-ring one end, shape E the other. To DIN 2353, ISO 8434-1. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 23 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | Series | Working pressure bar | Ø d1 mm | G1 | G2 | Ø d3 mm | i mm | L2 mm | SW mm | S1 mm | OR mm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| L | PN 315 | 6 | M 12 x 1.5 | G 1/8”–28 | 13.9 | 8 | 24.5 | 14 | 14 | 4.0 x 1.5 | |
| L | PN 315 | 8 | M 14 x 1.5 | G 1/4”–19 | 18.9 | 12 | 29.5 | 19 | 17 | 6.0 x 1.5 | |
| L | PN 315 | 10 | M 16 x 1.5 | G 1/4”–19 | 18.9 | 12 | 27.5 | 19 | 19 | 7.5 x 1.5 | |
| L | PN 315 | 12 | M 18 x 1.5 | G 1/4”–19 | 18.9 | 12 | 30.0 | 19 | 22 | 9.0 x 1.5 | |
| L | PN 315 | 12 | M 18 x 1.5 | G 1/2”–14 | 26.9 | 14 | 34.0 | 27 | 22 | 9.0 x 1.5 | |
| L | PN 315 | 12 | M 18 x 1.5 | G 3/8”–19 | 21.9 | 12 | 34.0 | 22 | 22 | 9.0 x 1.5 | |
| L | PN 315 | 15 | M 22 x 1.5 | G 1/2”–14 | 26.9 | 14 | 32.0 | 27 | 27 | 12.0 x 2.0 | |
| L | PN 315 | 18 | M 26 x 1.5 | G 1/2”–14 | 26.9 | 14 | 31.5 | 27 | 32 | 15.0 x 2.0 | |
| L | PN 160 | 22 | M 30 x 2 | G 3/4”–14 | 31.9 | 16 | 32.5 | 32 | 36 | 20.0 x 2.0 | |
| L | PN 160 | 28 | M 36 x 2 | G 1”–11 | 39.9 | 18 | 35.0 | 41 | 41 | 26.0 x 2.0 | |
| L | PN 160 | 35 | M 45 x 2 | G 1.1/4”–11 | 49.9 | 20 | 42.5 | 50 | 50 | 32.0 x 2.5 | |
| L | PN 160 | 42 | M 52 x 2 | G 1.1/2”–11 | 54.9 | 22 | 46.5 | 55 | 60 | 38.0 x 2.5 | |
| S | PN 630 | 6 | M 14 x 1.5 | G 1/4”–19 | 18.9 | 12 | 27.0 | 19 | 17 | 4.0 x 1.5 | |
| S | PN 630 | 8 | M 16 x 1.5 | G 1/4”–19 | 18.9 | 12 | 29.5 | 19 | 19 | 6.0 x 1.5 | |
| S | PN 630 | 10 | M 18 x 1.5 | G 3/8”–19 | 21.9 | 12 | 32.0 | 22 | 22 | 7.5 x 1.5 | |
| S | PN 630 | 12 | M 20 x 1.5 | G 1/2”–14 | 26.9 | 14 | 35.0 | 27 | 24 | 9.0 x 1.5 | |
| S | PN 630 | 12 | M 20 x 1.5 | G 3/8”–19 | 21.9 | 12 | 34.0 | 22 | 24 | 9.0 x 1.5 | |
| S | PN 630 | 14 | M 22 x 1.5 | G 1/2”–14 | 26.9 | 14 | 36.5 | 27 | 27 | 10.0 x 2.0 | |
| S | PN 400 | 16 | M 24 x 1.5 | G 1/2”–14 | 26.9 | 14 | 37.0 | 27 | 30 | 12.0 x 2.0 | |
| S | PN 400 | 20 | M 30 x 2 | G 3/4”–14 | 31.9 | 16 | 43.0 | 32 | 36 | 16.3 x 2.4 | |
| S | PN 400 | 25 | M 36 x 2 | G 1”–11 | 39.9 | 18 | 48.0 | 41 | 46 | 20.3 x 2.4 | |
| S | PN 400 | 30 | M 42 x 2 | G 1.1/4”–11 | 49.9 | 20 | 51.0 | 50 | 50 | 25.3 x 2.4 | |
| S | PN 315 | 38 | M 52 x 2 | G 1.1/2”–11 | 54.9 | 22 | 60.0 | 55 | 60 | 33.3 x 2.4 |
Series: LL = Very Light L = Light S = Heavy PN = Nominal pressure PB = Max. operating pressure Ø d2 = External pipe diameter Product Version: Stainless Steel (SS)
