Hydraulic Adaptors

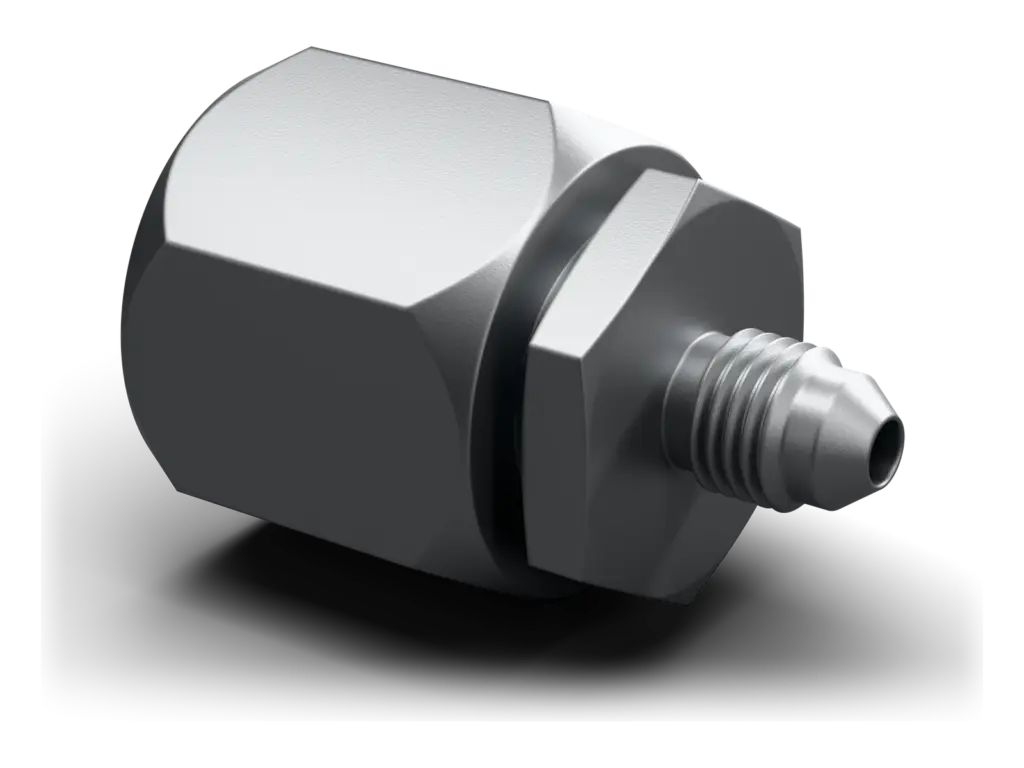

JIC Swivel Female / Male

JIC Swivel Female / Male

Connectors. Straight. UN / UNF inner thread to uN / UNF external threads. 74° inner cone one end, 74° outer cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 41 sizes, each with its own part number.

41sizes
JIF-JIM-0404-MC to JIF-JIM-3224-MC
Request a priceData sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

SurfaceMotusCoat™
MaterialSteel

Pick your size

Tick the sizes you need, then request a price.

IdentificationG1G2SW mmS1
7/16”-20 UNF7/16”-20 UNF1217
7/16”-20 UNF9/16”-18 UNF1717
1/2”-20 UNF7/16”-20 UNF1417
1/2”-20 UNF1/2”-20 UNF1417
9/16”-18 UNF7/16”-20 UNF1717
9/16”-18 UNF1/2”-20 UNF1719
9/16”-18 UNF9/16”-18 UNF1719
9/16”-18 UNF3/4”-16 UNF2219
3/4”-16 UNF7/16”-20 UNF1922
3/4”-16 UNF1/2”-20 UNF2222
3/4”-16 UNF9/16”-18 UNF1922
3/4”-16 UNF3/4”-16 UNF2224
3/4”-16 UNF7/8”-14 UNF2424
3/4”-16 UNF1.1/16”–12 UN2424
7/8”-14 UNF7/16”-20 UNF1927
7/8”-14 UNF1/2”-20 UNF1927
7/8”-14 UNF9/16”-18 UNF2427
7/8”-14 UNF3/4”-16 UNF2227
7/8”-14 UNF7/8”-14 UNF2427
7/8”-14 UNF1.1/16”–12 UN2827
1.1/16”–12 UN7/16”-20 UNF2432
1.1/16”–12 UN1/2”-20 UNF2432
1.1/16”–12 UN9/16”-18 UNF2732
1.1/16”–12 UN3/4”-16 UNF2932
1.1/16”–12 UN7/8”-14 UNF2732
1.1/16”–12 UN1.1/16”–12 UN3232
1.1/16”–12 UN1.5/16”–12 UN2732
1.3/16”–12 UN1.1/16”–12 UN3235
IdentificationG1G2SW mmS1
1.5/16”–12 UN3/4”-16 UNF3641
1.5/16”–12 UN7/8”-14 UNF3641
1.5/16”–12 UN1.1/16”–12 UN3641
1.5/16”–12 UN1.3/16”–12 UN3641
1.5/16”–12 UN1.5/16”–12 UN3641
1.5/8”–12 UN7/8”-14 UNF4650
1.5/8”–12 UN1.1/16”–12 UN4141
1.5/8”–12 UN1.3/16”–12 UN4650
1.5/8”–12 UN1.5/16”–12 UN4650
1.5/8”–12 UN1.5/8”–12 UN4650
1.7/8”–12 UN1.5/8”–12 UN5055
1.7/8”–12 UN1.7/8”–12 UN5055
2.1/2”–12 UN1.7/8”–12 UN6570

SW, S1, S2 = Width across flats

Product Version: Stainless Steel (SS)

The details

Connection 1
UN / UNF inner thread
Sealing form 1
74° inner cone
Connection 2
UN / UNF external threads
Sealing form 2
74° outer cone
Design
Connectors
Construction
Straight
Material
Steel
Surface
MotusCoat™

Downloads

JIC Swivel Female / Male data sheetPDF, matches the catalogueDownload
Surface

MotusCoat™

In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.

Competitor coating after 1000-hour salt spray testing
A fitting with a competitor coating, covered in red rust
A fitting with MotusCoat, with no red rust
MotusCoat™After a 1000-hour salt spray test according to DIN EN ISO 9227
