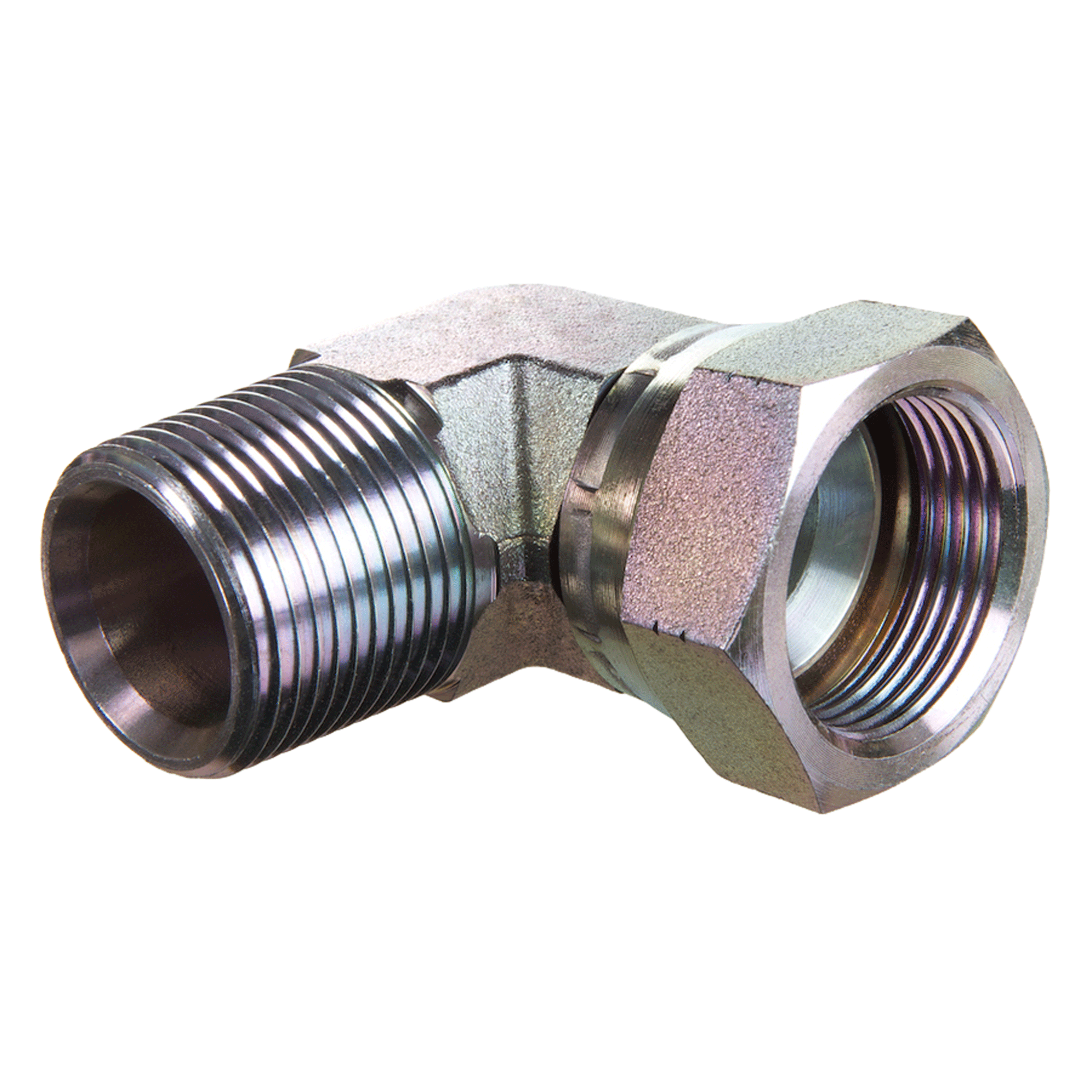

Screw-in socket, angle 90°. Screw-in sockets. NPT external threads to uN / UNF external threads. Thread seal one end, 74° outer cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 9 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 | G2 | SW mm | S1 |
|---|---|---|---|---|
| 1/8”–27 NPT | 7/16”-20 UNF | 13 | 14 | |
| 1/8”–27 NPT | 1/2”-20 UNF | 14 | 16 | |
| 1/4”–18 NPT | 7/16”-20 UNF | 14 | 14 | |
| 1/4”–18 NPT | 9/16”-18 UNF | 16 | 19 | |
| 3/8”–18 NPT | 9/16”-18 UNF | 19 | 19 | |
| 3/8”–18 NPT | 3/4”-16 UNF | 19 | 22 | |
| 1/2”–14 NPT | 7/8”-14 UNF | 24 | 27 | |
| 3/4”–14 NPT | 1.1/16”–12 UN | 27 | 32 | |
| 1”–11.5 NPT | 1.5/16”–12 UN | 36 | 38 |
SW, S1, S2 = Width across flats
Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
