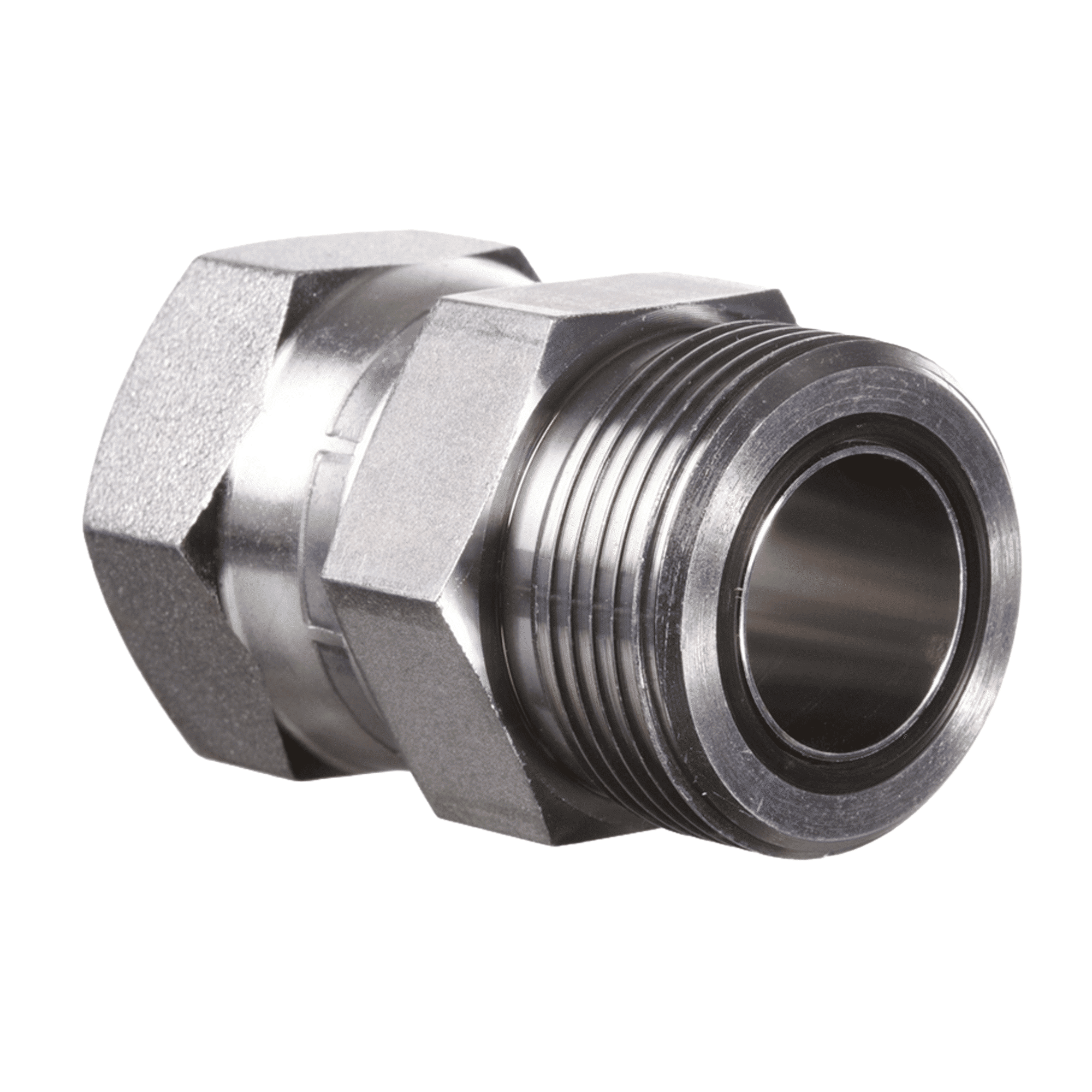

Connectors. Straight. Metric cylindrical outer thread to oRFS external threads. 74° inner cone one end, flat seal with O-ring the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 6 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 | G2 | SW mm | S1 | OR |
|---|---|---|---|---|---|
| 7/16”-20 UNF | 9/16”-18 UNF | 16 | 14 | 7.65 x 1.78 | |
| 9/16”-18 UNF | 11/16”-16 UN | 19 | 18 | 9.25 x 1.78 | |
| 3/4”-16 UNF | 13/16”-16 UN | 22 | 22 | 12.42 x 1.78 | |
| 7/8”-14 UNF | 1”-14 UNS | 27 | 25 | 15.60 x 1.78 | |
| 1.1/16”-12 UN | 1.3/16”-12 UN | 32 | 32 | 18.77 x 1.78 | |
| 1.5/16”-12 UN | 1.7/16”-12 UN | 38 | 38 | 23.52 x 1.78 |
SW, S1, S2 = Width across flats
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
