Hydraulic Adaptors

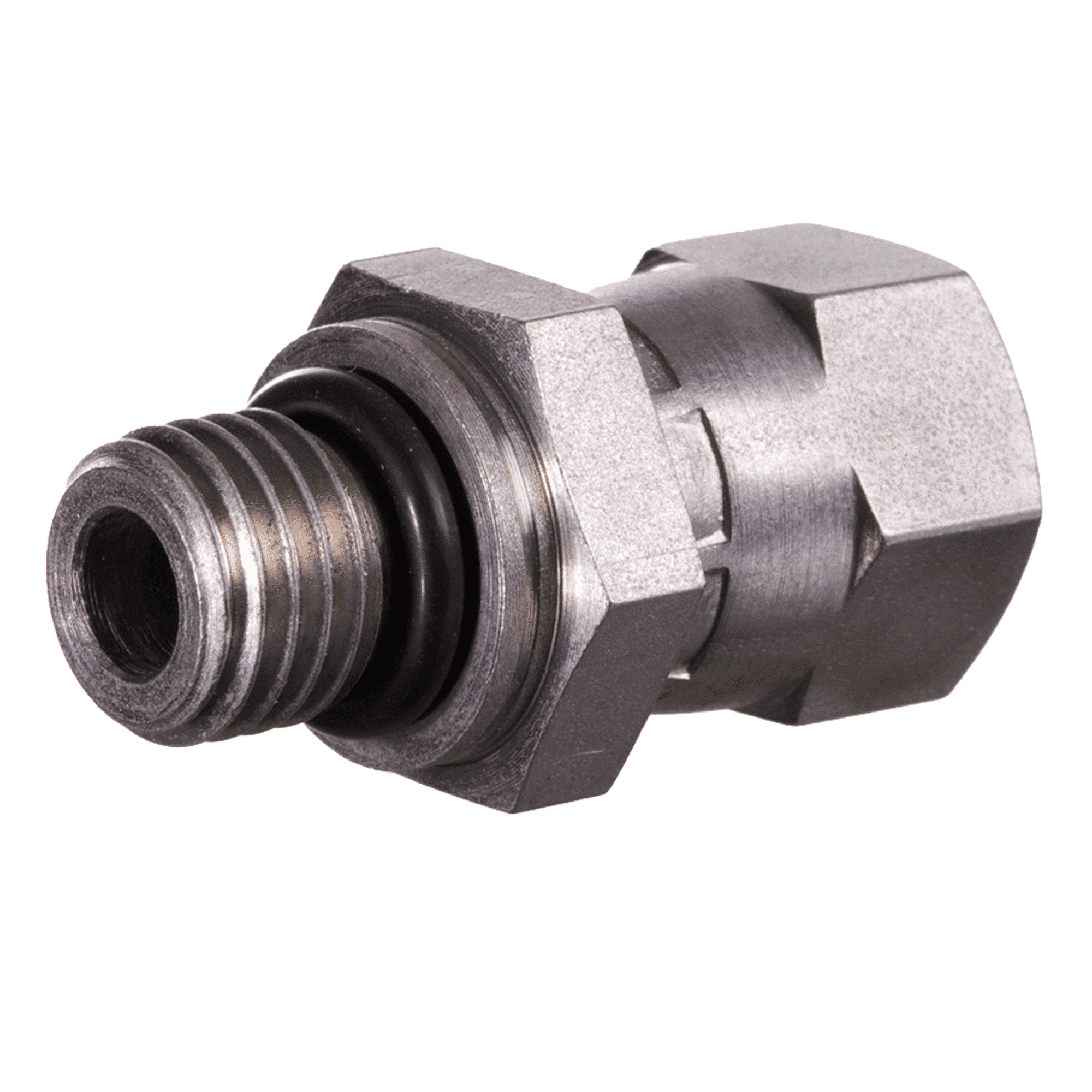

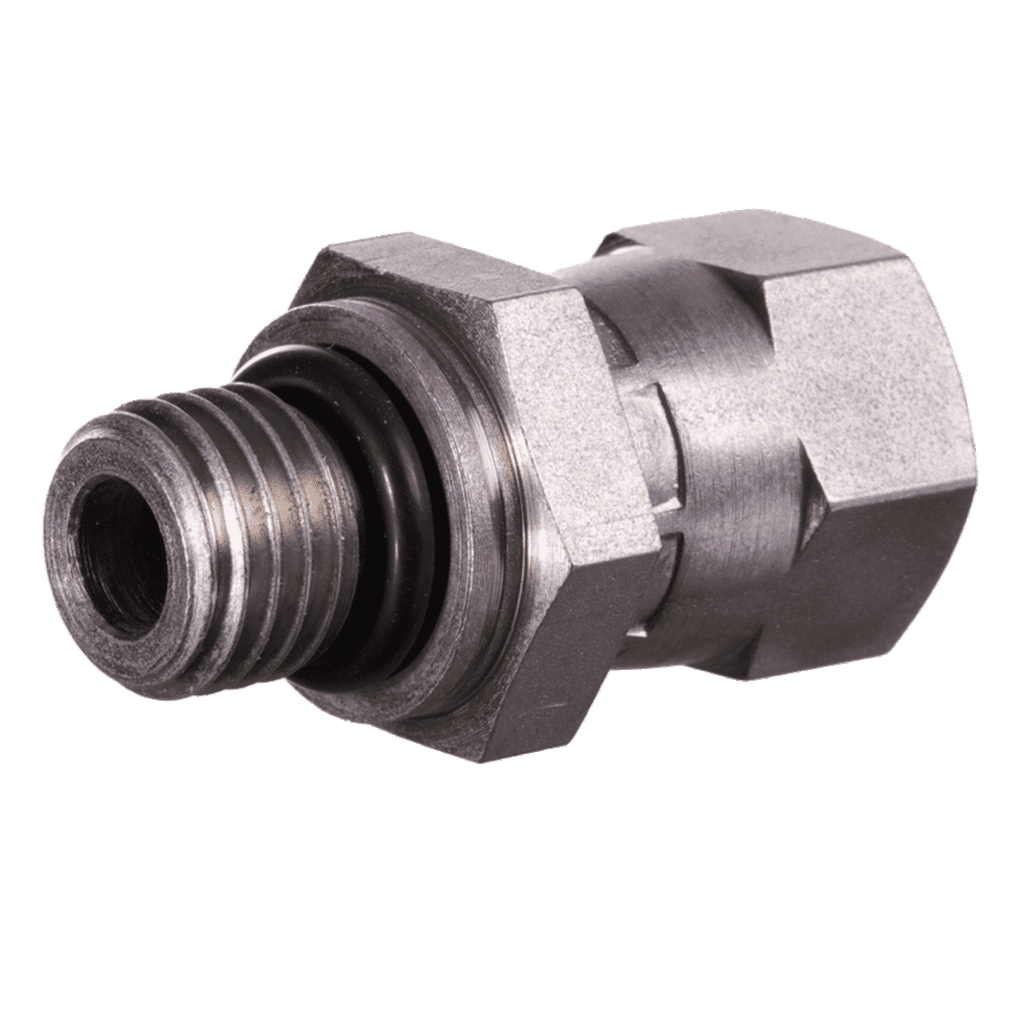

JIC Swivel Female / UNO Male

JIC Swivel Female / UNO Male

Screw-in sockets. Straight. UN / UNF external threads to uN / UNF nut threads. O-ring seal on screw-in socket one end, 74° inner cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 23 sizes, each with its own part number.

23sizes
UNM-JIF-0404-MC to UNM-JIF-2424-MC
Request a priceData sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

SurfaceMotusCoat™
MaterialSteel

Pick your size

Tick the sizes you need, then request a price.

IdentificationG1G2SW mmS1OR
7/16”-20 UNF7/16”-20 UNF14168.92 x 1.83
1/2”-20 UNF7/16”-20 UNF171610.52 x 1.83
1/2”-20 UNF1/2”-20 UNF171710.52 x 1.83
9/16”-18 UNF7/16”-20 UNF171611.90 x 1.98
9/16”-18 UNF9/16”-18 UNF171911.90 x 1.98
9/16”-18 UNF3/4”-16 UNF172210.89 x 1.98
3/4”-16 UNF9/16”-18 UNF221916.36 x 2.20
3/4”-16 UNF3/4”-16 UNF222216.36 x 2.20
3/4”-16 UNF7/8”-14 UNF222716.36 x 2.20
3/4”-16 UNF1.1/16”-12 UN223216.36 x 2.20
7/8”-14 UNF3/4”-16 UNF272219.18 x 2.46
7/8”-14 UNF7/8”-14 UNF272719.18 x 2.46
7/8”-14 UNF1.1/16”-12 UN273219.18 x 2.46
1.1/16”-12 UN3/4”-16 UNF322223.47 x 2.95
1.1/16”-12 UN7/8”-14 UNF322723.47 x 2.95
1.1/16”-12 UN1.1/16”-12 UN323223.47 x 2.95
1.1/16”-12 UN1.5/16”-12 UN323823.47 x 2.95
1.3/16”-12 UN1.3/16”-12 UN413626.59 x 2.95
1.5/16”-12 UN1.1/16”-12 UN413229.74 x 2.95
1.5/16”-12 UN1.5/16”-12 UN413829.74 x 2.95
1.5/8”–12 UN1.5/16”-12 UN503837.47 x 3.00
1.5/8”–12 UN1.5/8”–12 UN505037.47 x 3.00
1.7/8”–12 UN1.7/8”–12 UN546043.69 x 3.00

SW, S1, S2 = Width across flats

The details

Connection 1
UN / UNF external threads
Sealing form 1
O-ring seal on screw-in socket
Connection 2
UN / UNF nut threads
Sealing form 2
74° inner cone
Design
Screw-in sockets
Construction
Straight
Material
Steel
Surface
MotusCoat™

Downloads

JIC Swivel Female / UNO Male data sheetPDF, matches the catalogueDownload
Surface

MotusCoat™

In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.

Competitor coating after 1000-hour salt spray testing
A fitting with a competitor coating, covered in red rust
A fitting with MotusCoat, with no red rust
MotusCoat™After a 1000-hour salt spray test according to DIN EN ISO 9227
