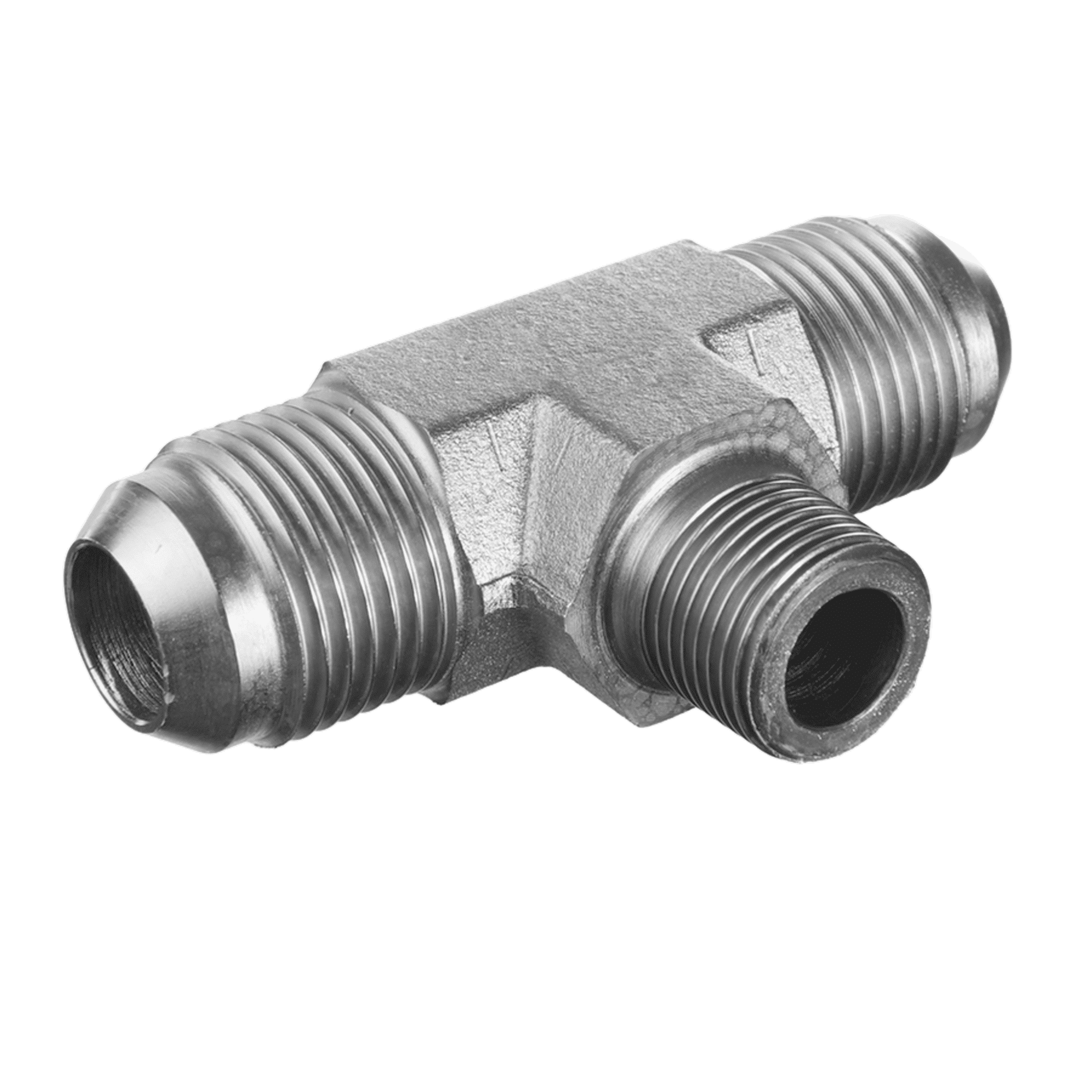

Screw-in socket, T shaped. Adjustable direction screw-in socket. BSPT conical external threads to uN / UNF external threads. Thread seal one end, 74° outer cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 14 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 + G2 | G3 | SW mm |
|---|---|---|---|
| 7/16”-20 UNF | R 1/8”K | 11 | |
| 7/16”-20 UNF | R 1/4”K | 14 | |
| 1/2”-20 UNF | R 1/8”K | 13 | |
| 1/2”-20 UNF | R 1/4”K | 14 | |
| 9/16”-18 UNF | R 1/4”K | 14 | |
| 9/16”-18 UNF | R 3/8”K | 19 | |
| 3/4”-16 UNF | R 3/8”K | 19 | |
| 3/4”-16 UNF | R 1/2”K | 22 | |
| 7/8”-14 UNF | R 3/8”K | 19 | |
| 7/8”-14 UNF | R 1/2”K | 22 | |
| 7/8”-14 UNF | R 3/4”K | 27 | |
| 1.1/16”–12 UN | R 1/2”K | 27 | |
| 1.1/16”–12 UN | R 3/4”K | 27 | |
| 1.5/16”–12 UN | R 1”K | 33 |
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
