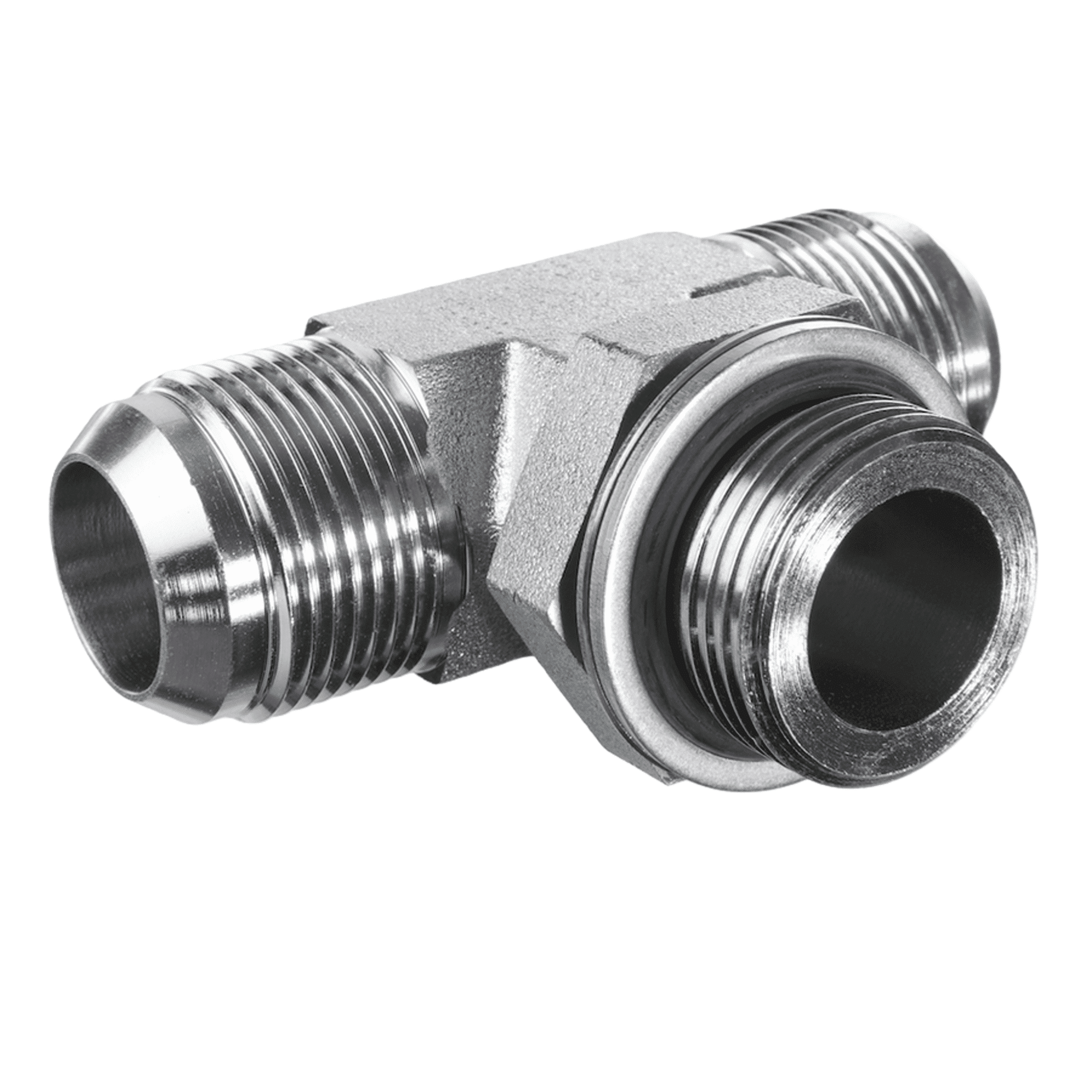

Screw-in socket, T shaped. Adjustable direction screw-on socket. Metric cylindrical outer thread to uN / UNF external threads. Thread socket with O-ring + spacer diaphragm ring one end, 74° outer cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 17 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 + G2 | G3 | SW mm | S1 | OR |
|---|---|---|---|---|---|
| 7/16”-20 UNF | M 10 x 1 | 11 | 13 | 8.00 x 1.50 | |
| 7/16”-20 UNF | M 12 x 1.5 | 13 | 17 | 9.25 x 1.78 | |
| 1/2”-20 UNF | M 10 x 1 | 13 | 14 | 8.00 x 1.50 | |
| 1/2”-20 UNF | M 12 x 1.5 | 13 | 17 | 9.25 x 1.78 | |
| 1/2”-20 UNF | M 14 x 1.5 | 14 | 17 | 10.82 x 1.78 | |
| 9/16”-18 UNF | M 14 x 1.5 | 14 | 17 | 10.82 x 1.78 | |
| 9/16”-18 UNF | M 16 x 1.5 | 19 | 22 | 13.46 x 2.08 | |
| 9/16”-18 UNF | M 18 x 1.5 | 19 | 24 | 15.54 x 2.62 | |
| 3/4”-16 UNF | M 16 x 1.5 | 19 | 19 | 13.46 x 2.08 | |
| 7/8”-14 UNF | M 18 x 1.5 | 22 | 24 | 15.54 x 2.62 | |
| 7/8”-14 UNF | M 22 x 1.5 | 22 | 27 | 18.77 x 1.78 | |
| 1.1/16”–12 UN | M 22 x 1.5 | 27 | 27 | 18.77 x 1.78 | |
| 1.1/16”–12 UN | M 27 x 2 | 27 | 32 | 23.47 x 2.62 | |
| 1.5/16”–12 UN | M 27 x 2 | 33 | 32 | 23.47 x 2.62 | |
| 1.5/16”–12 UN | M 33 x 2 | 33 | 38 | 28.24 x 2.62 | |
| 1.5/8”–12 UN | M 42 x 2 | 41 | 50 | 37.77 x 2.62 | |
| 1.7/8”–12 UN | M 48 x 2 | 48 | 55 | 44.12 x 2.62 |
SW, S1, S2 = Width across flats
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
