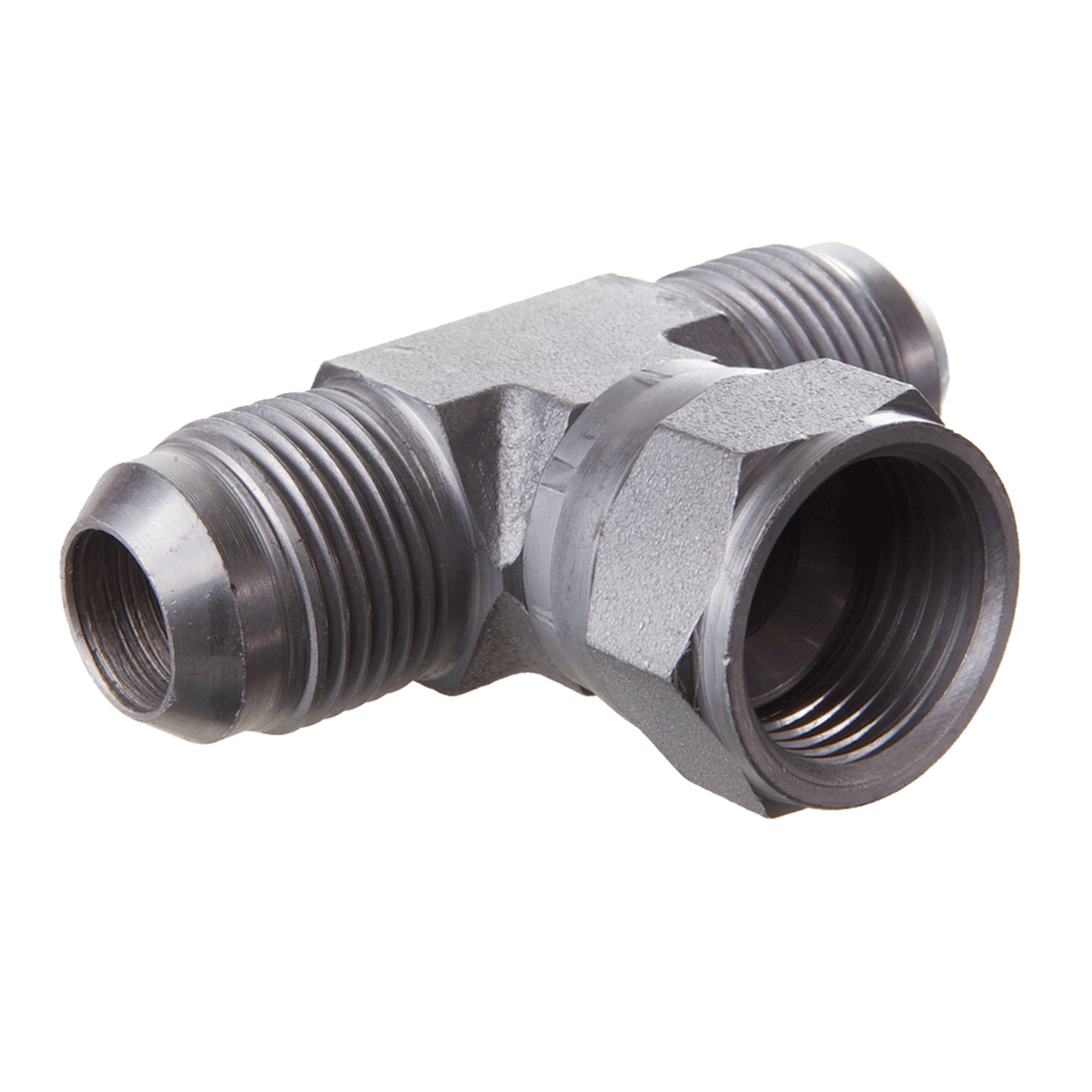

Screw-on socket, T shaped. Adjustable direction screw-on socket. UN / UNF nut threads to uN / UNF external threads. 74° inner cone one end, 74° outer cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 9 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 | G2 + G3 | SW mm | S1 |
|---|---|---|---|---|
| 7/16”-20 UNF | 7/16”-20 UNF | 11 | 16 | |
| 1/2”-20 UNF | 1/2”-20 UNF | 13 | 17 | |
| 9/16”-18 UNF | 9/16”-18 UNF | 14 | 19 | |
| 3/4”-16 UNF | 3/4”-16 UNF | 19 | 22 | |
| 7/8”-14 UNF | 7/8”-14 UNF | 22 | 27 | |
| 1.1/16”–12 UN | 1.1/16”–12 UN | 27 | 32 | |
| 1.5/16”–12 UN | 1.5/16”–12 UN | 33 | 38 | |
| 1.5/8”–12 UN | 1.5/8”–12 UN | 41 | 50 | |
| 1.7/8”–12 UN | 1.7/8”–12 UN | 48 | 55 |
SW, S1, S2 = Width across flats
Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
