Hydraulic Adaptors

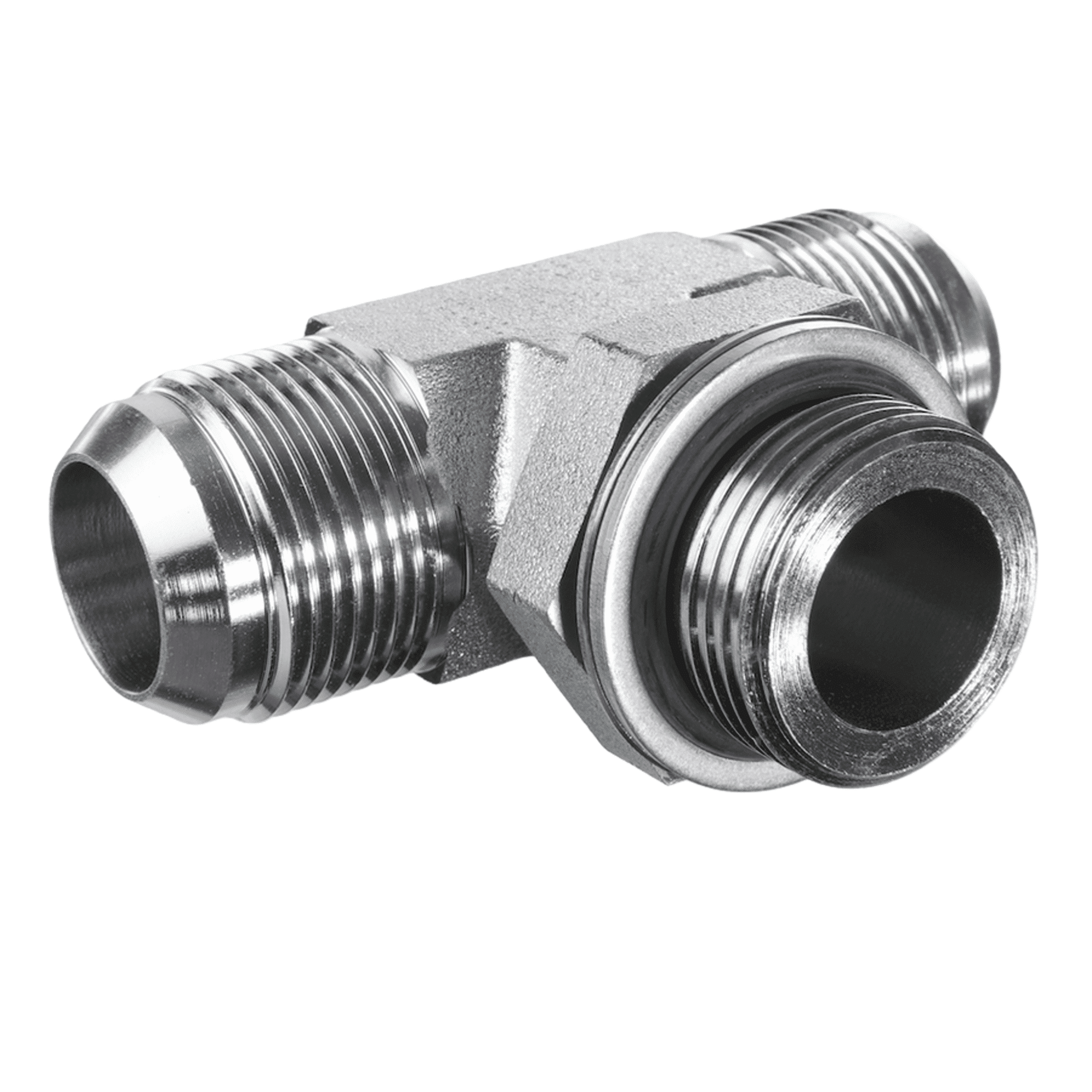

JIC Male Tee / BSPP Male Positional Branch

JIC Male Tee / BSPP Male Positional Branch

Screw-in socket, T shaped. Adjustable direction screw-in socket. BSP external thread, cylindrical to uN / UNF external threads. Thread socket with O-ring + spacer diaphragm ring one end, 74° outer cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 27 sizes, each with its own part number.

27sizes
JIM-JIM-BPP-020404-MC to JIM-JIM-BPP-242424-MC
Request a priceData sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

SurfaceMotusCoat™
MaterialSteel

Pick your size

Tick the sizes you need, then request a price.

IdentificationG1 + G2G3SW mmS1OR
7/16”-20 UNFG 1/8”–2811148.00 x 2.00
1/2”-20 UNFG 1/8”–2814148.00 x 2.00
7/16”-20 UNFG 1/4”–19141910.77 x 2.62
1/2”-20 UNFG 1/4”–19141410.77 x 2.62
9/16”-18 UNFG 1/4”–19141910.77 x 2.62
3/4”-16 UNFG 1/4”–19191910.77 x 2.62
7/16”-20 UNFG 3/8”–19192213.94 x 2.62
1/2”-20 UNFG 3/8”–19192213.94 x 2.62
9/16”-18 UNFG 3/8”–19192213.94 x 2.62
3/4”-16 UNFG 3/8”–19222213.94 x 2.62
7/8”-14 UNFG 3/8”–19222213.94 x 2.62
7/16”-20 UNFG 1/2”–14222717.86 x 2.62
9/16”-18 UNFG 1/2”–14222717.86 x 2.62
3/4”-16 UNFG 1/2”–14222717.86 x 2.62
7/8”-14 UNFG 1/2”–14222717.86 x 2.62
1.1/16”–12 UNG 1/2”–14272717.86 x 2.62
3/4”-16 UNFG 3/4”–14273623.47 x 2.62
7/8”-14 UNFG 3/4”–14273623.47 x 2.62
1.1/16”–12 UNG 3/4”–14273623.47 x 2.62
1.5/16”–12 UNG 3/4”–14333623.47 x 2.62
1.1/16”–12 UNG 1”–11334129.74 x 3.53
1.5/16”–12 UNG 1”–11334129.74 x 3.53
1.5/8”–12 UNG 1”–11414129.74 x 3.53
1.5/16”–12 UNG 1.1/4”–11415037.69 x 3.53
1.5/8”–12 UNG 1.1/4”–11415037.69 x 3.53
1.7/8”–12 UNG 1.1/4”–11485037.69 x 3.53
1.7/8”–12 UNG 1.1/2”–11486044.04 x 3.53

SW, S1, S2 = Width across flats Product Version: Stainless Steel (SS)

The details

Connection 1
BSP external thread, cylindrical
Sealing form 1
Thread socket with O-ring + spacer diaphragm ring
Connection 2+3
UN / UNF external threads
Sealing form 2+3
74° outer cone
Design
Adjustable direction screw-in socket
Construction
T shaped
Material
Steel
Surface
MotusCoat™

Downloads

JIC Male Tee / BSPP Male Positional Branch data sheetPDF, matches the catalogueDownload
Surface

MotusCoat™

In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.

Competitor coating after 1000-hour salt spray testing
A fitting with a competitor coating, covered in red rust
A fitting with MotusCoat, with no red rust
MotusCoat™After a 1000-hour salt spray test according to DIN EN ISO 9227
