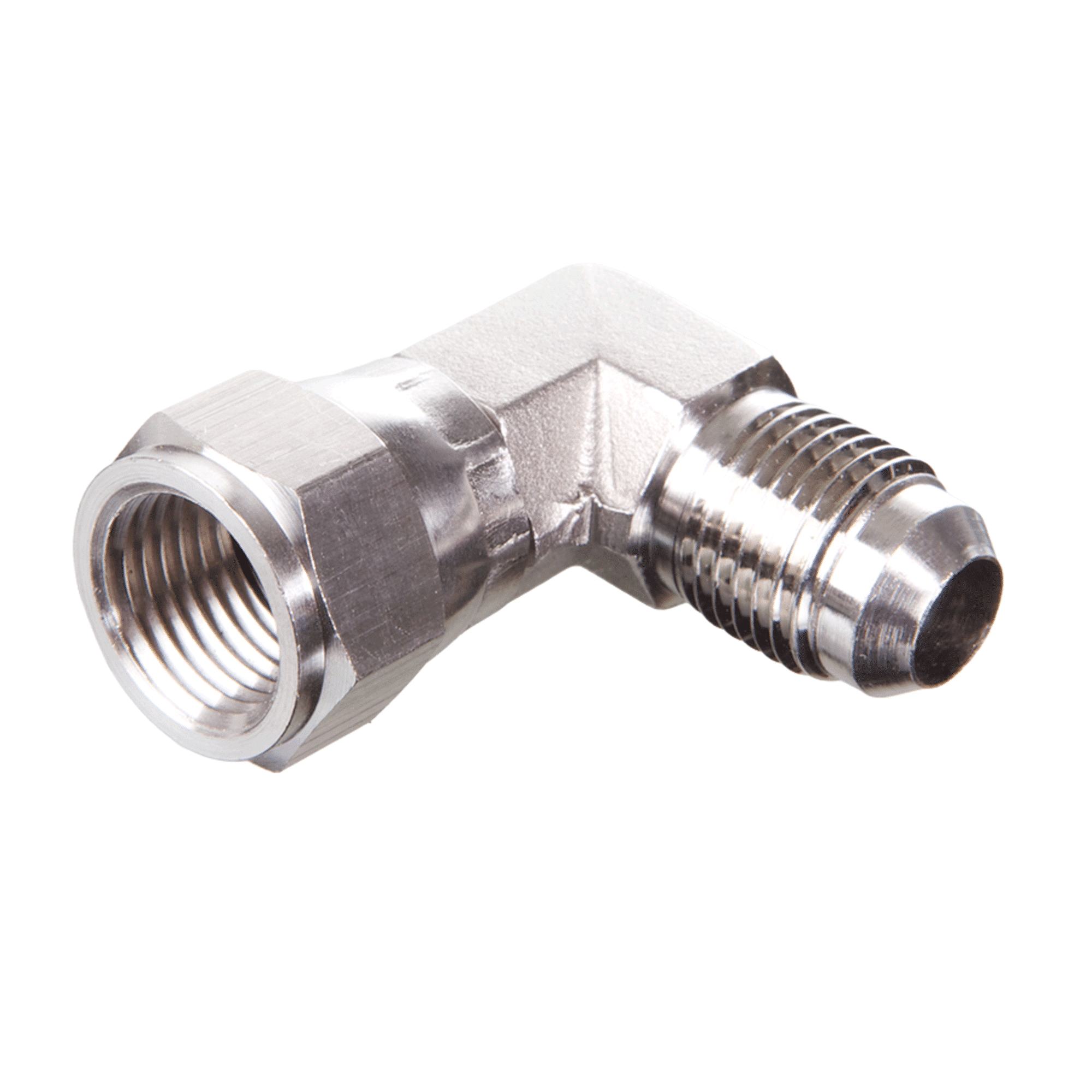

JIC Male / Swivel Female 90 – Screw-on socket, angle 90°. Part of the Motus Hydraulic Adaptors range.
excl. GST
Not sure which model you need? Talk to Motus.
PRODUCT INFORMATION
JIC Male / Swivel Female 90 is part of the Motus Hydraulic Adaptors range. Screw-on socket, angle 90°.
| Connection 1 | UN / UNF nut threads |
| Sealing form 1 | 74° inner cone |
| Connection 2 | UN / UNF external threads |
| Sealing form 2 | 74° outer cone |
| Design | Screw-on socket |
| Construction | Angle 90° |
| Material | Steel |
| Surface | MotusCoat™ |
| Product Version | Stainless Steel (SS) |
Catalogue page: 324
JIC Male / Swivel Female 90 – Screw-on socket, angle 90°. Part of the Motus Hydraulic Adaptors range.
Confirm both connection thread types and sizes, sealing form, fitting configuration and system pressure before ordering.
Not sure which size, configuration or hydraulic component you need? Tell us what you’re working with and the Motus team will help match the right product to the application.
TECHNICAL RESOURCES
Download available product drawings and technical files.
