Hydraulic Adaptors

JIC Male / UNO Male positional 90

JIC Male / UNO Male positional 90

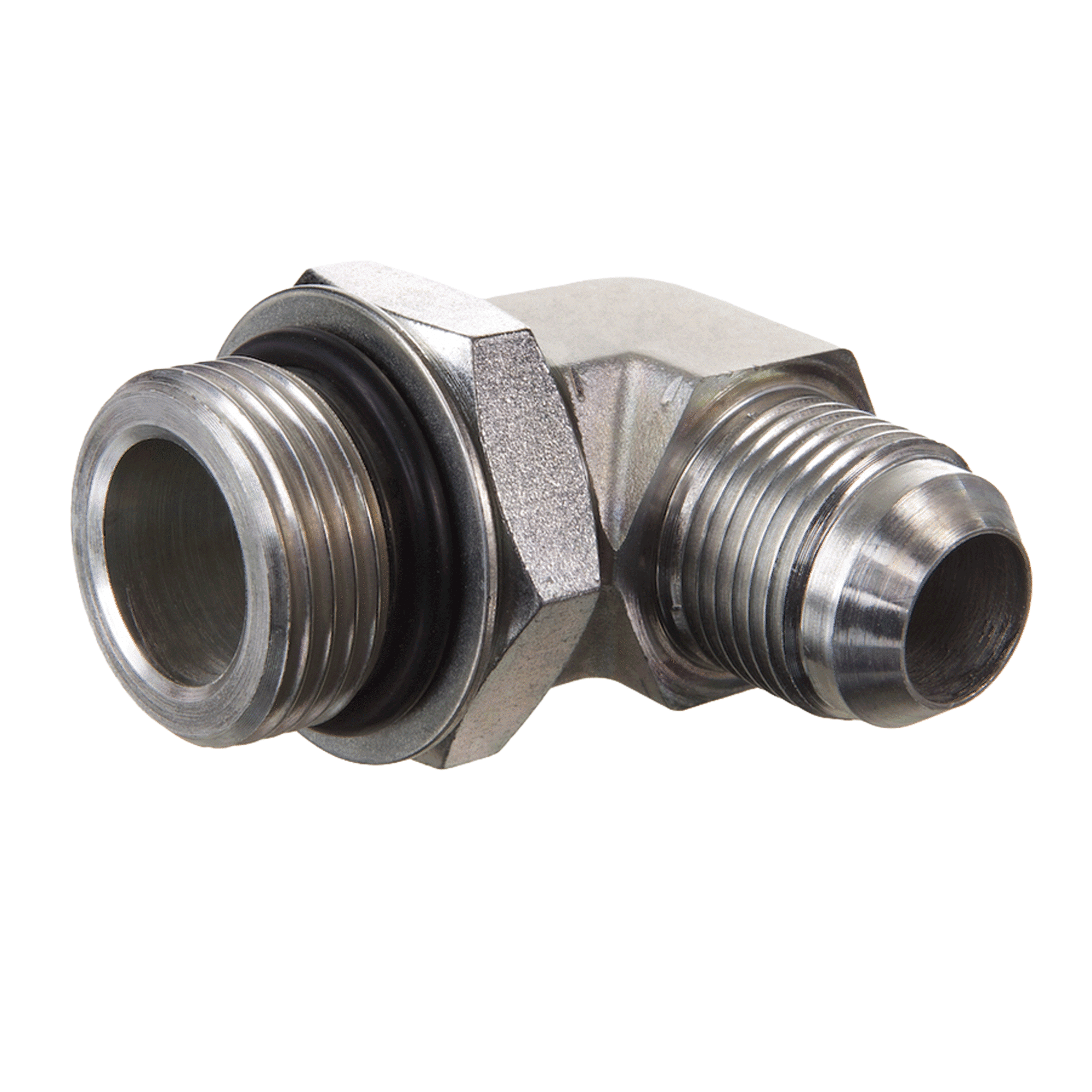

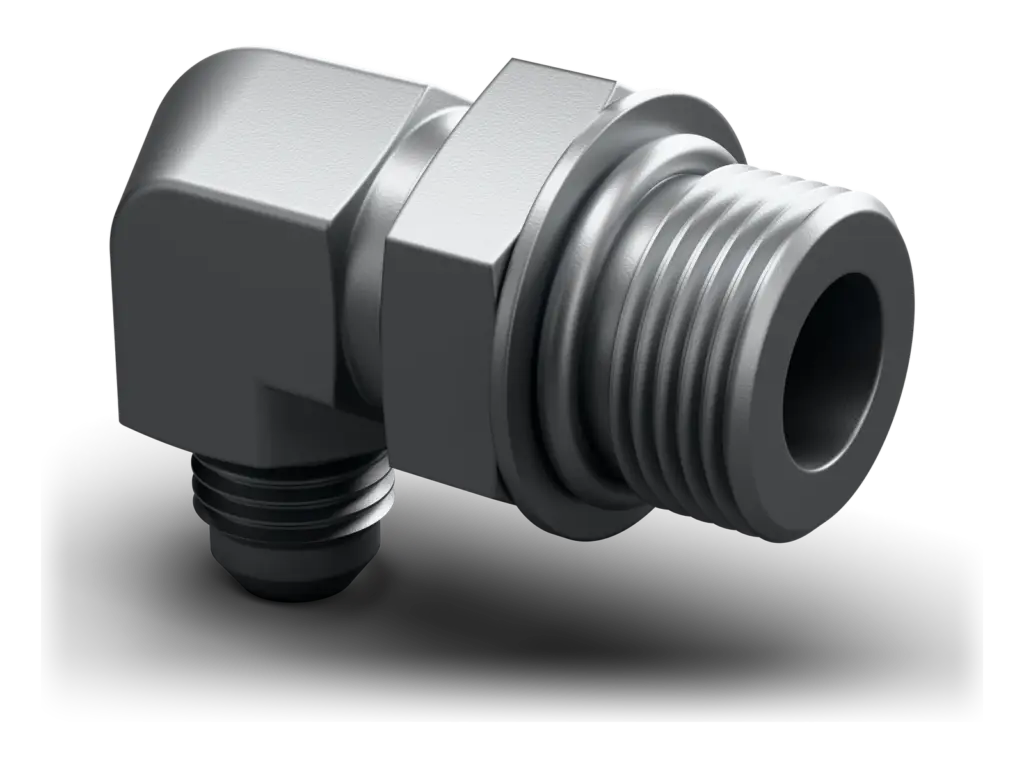

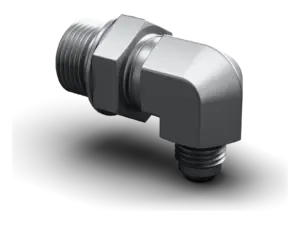

Screw-in socket, AGJ, angle 90°. Adjustable direction screw-in socket. Screw-in socket, AGJ, angle 90° to uN / UNF external threads. O-ring seal on screw-in socket one end, 74° outer cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 29 sizes, each with its own part number.

29sizes
UNP-JIM-90C-0404-MC to UNP-JIM-90C-3232-MC
Request a priceData sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

SurfaceMotusCoat™
MaterialSteel

Pick your size

Tick the sizes you need, then request a price.

IdentificationG1G2SW mmS1OR
7/16”-20 UNF7/16”-20 UNF12149.17 x 1.63
7/16”-20 UNF1/2”-20 UNF12149.17 x 1.63
7/16”-20 UNF9/16”-18 UNF12149.17 x 1.63
1/2”-20 UNF7/16”-20 UNF131710.52 x 1.83
1/2”-20 UNF1/2”-20 UNF131710.52 x 1.83
1/2”-20 UNF9/16”-18 UNF131710.52 x 1.83
9/16”-18 UNF7/16”-20 UNF141711.90 x 1.98
9/16”-18 UNF1/2”-20 UNF141711.90 x 1.98
9/16”-18 UNF9/16”-18 UNF141711.90 x 1.98
9/16”-18 UNF3/4”-16 UNF141711.90 x 1.98
3/4”-16 UNF9/16”-18 UNF192216.36 x 2.20
3/4”-16 UNF3/4”-16 UNF192216.36 x 2.20
3/4”-16 UNF7/8”-14 UNF192216.36 x 2.20
3/4”-16 UNF1.1/16”-12 UN192216.36 x 2.20
7/8”-14 UNF9/16”-18 UNF222719.18 x 2.46
7/8”-14 UNF3/4”-16 UNF222719.18 x 2.46
7/8”-14 UNF7/8”-14 UNF222719.18 x 2.46
7/8”-14 UNF1.1/16”-12 UN222719.18 x 2.46
1.1/16”-12 UN3/4”-16 UNF273223.47 x 2.95
1.1/16”-12 UN7/8”-14 UNF273223.47 x 2.95
1.1/16”-12 UN1.1/16”-12 UN273223.47 x 2.95
1.1/16”-12 UN1.5/16”-12 UN273223.47 x 2.95
1.5/16”-12 UN1.1/16”-12 UN334129.74 x 2.95
1.5/16”-12 UN1.5/16”-12 UN334129.74 x 2.95
1.5/16”-12 UN1.5/8”-12 UN334129.74 x 2.95
1.5/8”-12 UN1.5/16”-12 UN415037.47 x 3.00
1.5/8”-12 UN1.5/8”-12 UN415037.47 x 3.00
1.7/8”-12 UN1.7/8”-12 UN485543.69 x 3.00
2.1/2”-12 UN2.1/2”-12 UN657059.36 x 3.00

SW, S1, S2 = Width across flats Product Version: Stainless Steel (SS)

The details

Connection 1
Screw-in socket, AGJ, angle 90°
Sealing form 1
O-ring seal on screw-in socket
Connection 2
UN / UNF external threads
Sealing form 2
74° outer cone
Design
Adjustable direction screw-in socket
Construction
Angle 90°
Material
Steel
Surface
MotusCoat™

Downloads

JIC Male / UNO Male positional 90 data sheetPDF, matches the catalogueDownload
Surface

MotusCoat™

In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.

Competitor coating after 1000-hour salt spray testing
A fitting with a competitor coating, covered in red rust
A fitting with MotusCoat, with no red rust
MotusCoat™After a 1000-hour salt spray test according to DIN EN ISO 9227

Goes with

JIC Male Blanking PlugJIC Male Blanking Plug11 sizesJIC Male CrossJIC Male Cross9 sizesJIC Male TeeJIC Male Tee11 sizes
