Hydraulic Adaptors

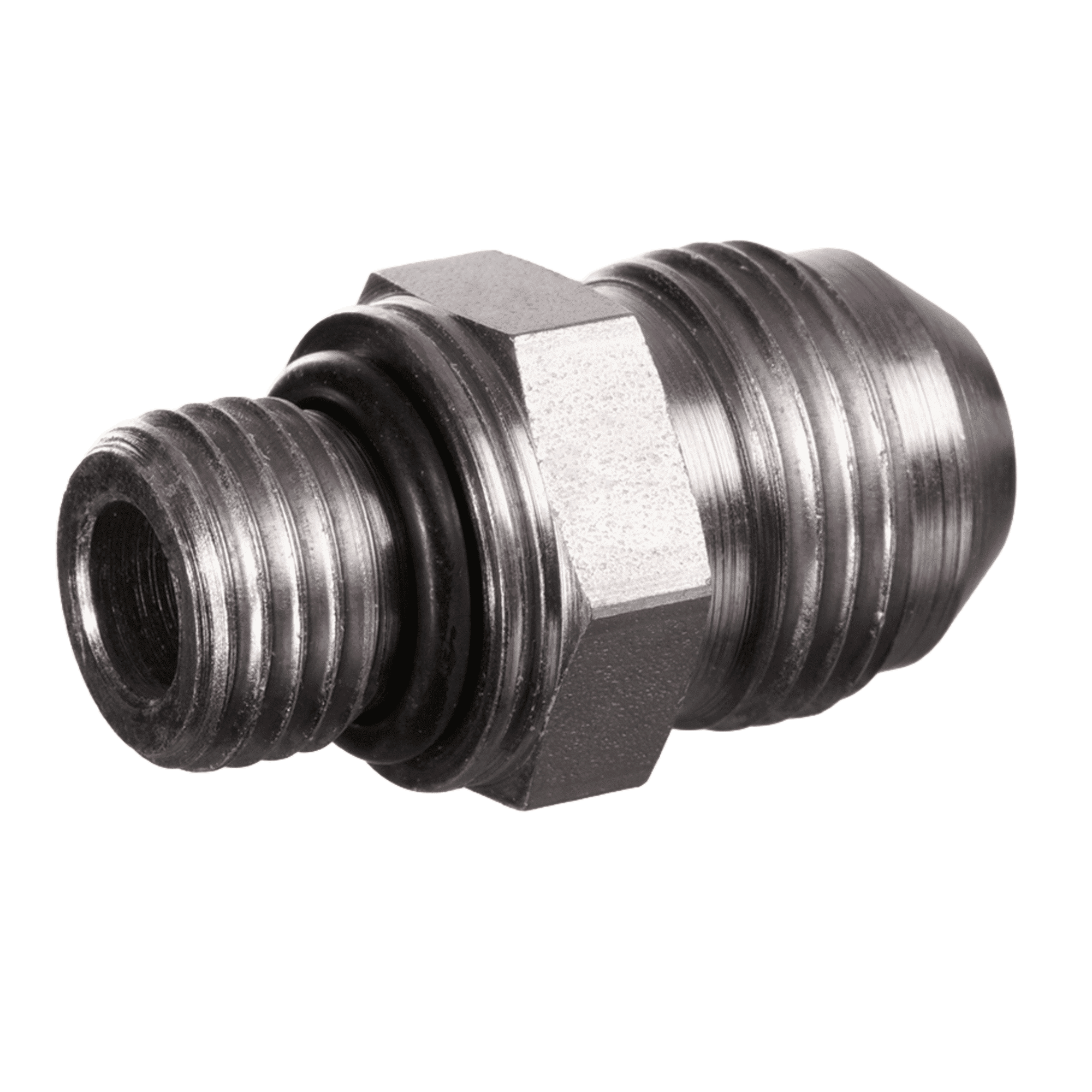

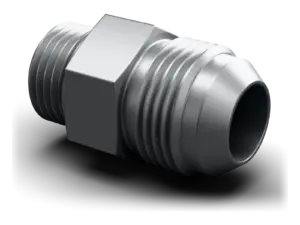

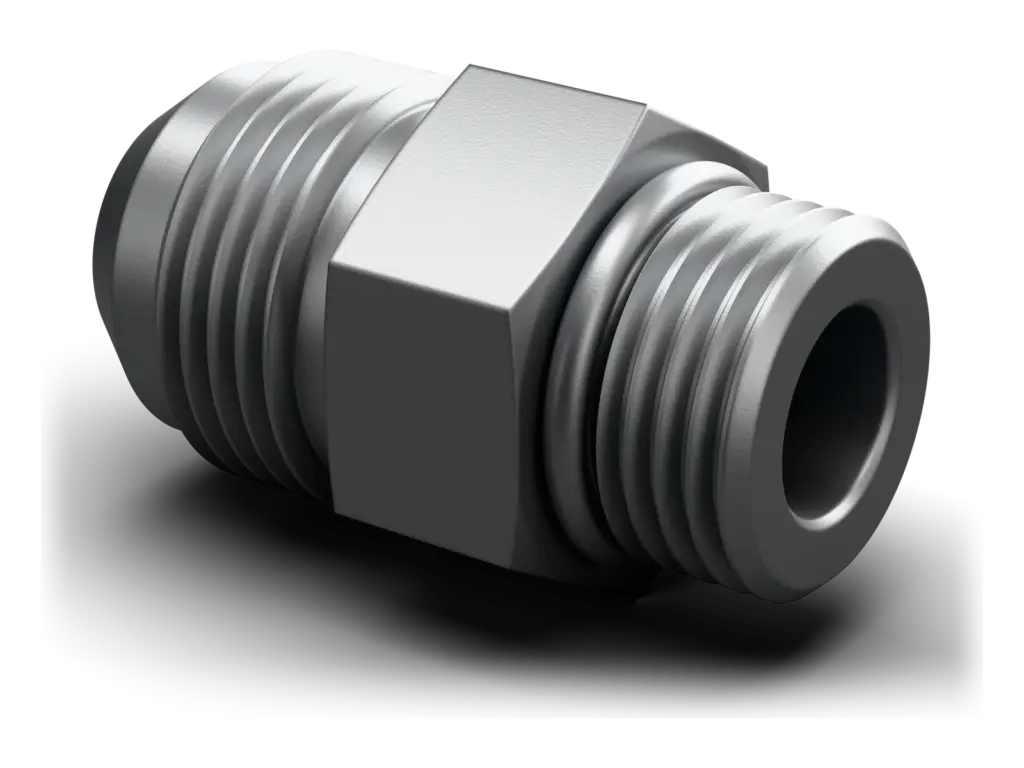

JIC Male / UNO Male

JIC Male / UNO Male

Screw-in sockets. Straight. UN / UNF external threads to uN / UNF inner thread. O-ring seal on screw-in socket one end, 74° inner cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 40 sizes, each with its own part number.

40sizes
UNM-JIM-0304-MC to UNM-JIM-3232-MC
Request a priceData sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

SurfaceMotusCoat™
MaterialSteel

Pick your size

Tick the sizes you need, then request a price.

SW
Width across flats
IdentificationG1G2SW mmOR mm
3/8”-24 UNF7/16”-20 UNF147.65 x 1.78
7/16”-20 UNF7/16”-20 UNF148.92 x 1.83
7/16”-20 UNF1/2”-20 UNF148.92 x 1.83
7/16”-20 UNF9/16”-18 UNF168.92 x 1.83
1/2”-20 UNF7/16”-20 UNF1610.52 x 1.83
1/2”-20 UNF1/2”-20 UNF1610.52 x 1.83
1/2”-20 UNF9/16”-18 UNF1610.52 x 1.83
9/16”-18 UNF7/16”-20 UNF1711.90 x 1.98
9/16”-18 UNF1/2”-20 UNF1711.90 x 1.98
9/16”-18 UNF9/16”-18 UNF1711.90 x 1.98
9/16”-18 UNF3/4”-16 UNF1911.90 x 1.98
3/4”-16 UNF7/16”-20 UNF2216.36 x 2.20
3/4”-16 UNF1/2”-20 UNF2216.36 x 2.20
3/4”-16 UNF9/16”-18 UNF2216.36 x 2.20
3/4”-16 UNF3/4”-16 UNF2216.36 x 2.20
3/4”-16 UNF7/8”-14 UNF2416.36 x 2.20
3/4”-16 UNF1.1/16”-12 UN2916.36 x 2.20
7/8”-14 UNF3/4”-16 UNF2719.18 x 2.46
7/8”-14 UNF9/16”-18 UNF2519.18 x 2.46
7/8”-14 UNF7/8”-14 UNF2719.18 x 2.46
7/8”-14 UNF1.1/16”-12 UN2719.18 x 2.46
7/8”-14 UNF1.5/16”-12 UN3519.18 x 2.46
1.1/16”-12 UN9/16”-18 UNF3223.47 x 2.95
1.1/16”-12 UN3/4”-16 UNF3223.47 x 2.95
1.1/16”-12 UN7/8”-14 UNF3223.47 x 2.95
1.1/16”-12 UN1.1/16”-12 UN3223.47 x 2.95
1.1/16”-12 UN1.5/16”-12 UN3623.47 x 2.95
1.3/16”-12 UN1.1/16”-12 UN3526.59 x 2.95
1.3/16”-12 UN1.3/16”-12 UN3526.59 x 2.95
1.5/16”-12 UN7/8”-14 UNF4129.74 x 2.95
IdentificationG1G2SW mmOR mm
1.5/16”-12 UN1.1/16”-12 UN3829.74 x 2.95
1.5/16”-12 UN1.5/16”-12 UN3829.74 x 2.95
1.5/16”-12 UN1.5/8”-12 UN4329.74 x 2.95
1.5/16”-12 UN1.7/8”-12 UN5529.74 x 2.95
1.5/8”-12 UN1.5/16”-12 UN3537.47 x 3.00
1.5/8”-12 UN1.5/8”-12 UN5037.47 x 3.00
1.5/8”-12 UN1.7/8”-12 UN5137.47 x 3.00
1.7/8”-12 UN1.5/8”-12 UN5143.69 x 3.00
1.7/8”-12 UN1.7/8”-12 UN5543.69 x 3.00
2.1/2”–12 UN2.1/2”–12 UN7043.69 x 3.00

Product Version: Stainless Steel (SS)

The details

Connection 1
UN / UNF external threads
Sealing form 1
O-ring seal on screw-in socket
Connection 2
UN / UNF inner thread
Sealing form 2
74° inner cone
Design
Screw-in sockets
Construction
Straight
Material
Steel
Surface
MotusCoat™

Downloads

JIC Male / UNO Male data sheetPDF, matches the catalogueDownload
Surface

MotusCoat™

In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.

Competitor coating after 1000-hour salt spray testing
A fitting with a competitor coating, covered in red rust
A fitting with MotusCoat, with no red rust
MotusCoat™After a 1000-hour salt spray test according to DIN EN ISO 9227
