JIC Male / UNO Male Positional 45

JIC Male / UNO Male Positional 45

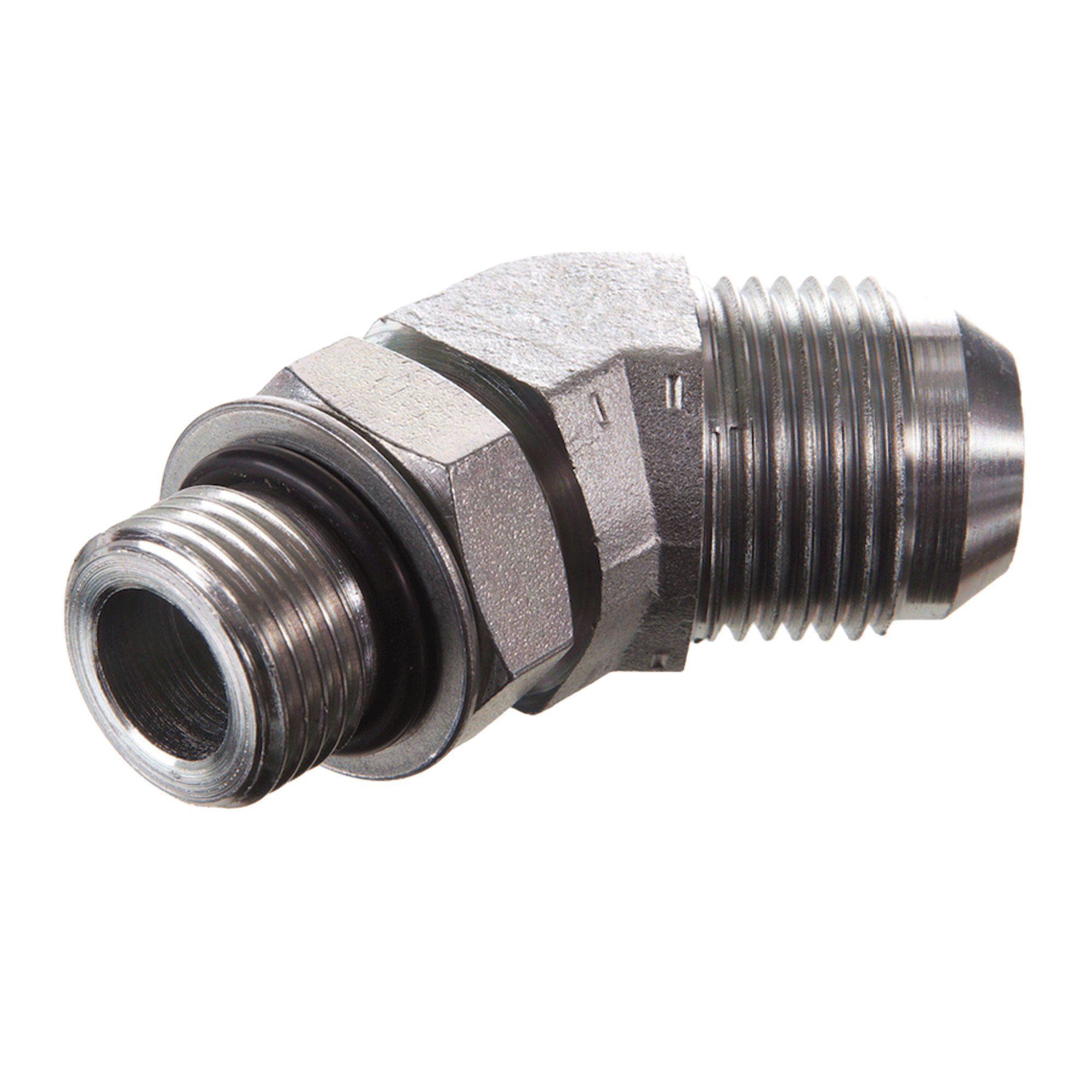

Screw-in socket, angle 45°. Adjustable direction screw-in socket. UN / UNF external threads at both ends. O-ring seal on screw-in socket one end, 74° outer cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 23 sizes, each with its own part number.

23sizes
UNP-JIM-45C-0404-MC to UNP-JIM-45C-3232-MC
Request a priceData sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

SurfaceMotusCoat™
MaterialSteel

Pick your size

Tick the sizes you need, then request a price.

IdentificationG1G2SW mmS1OR
7/16”-20 UNF7/16”-20 UNF11148.92 x 1.83
1/2”-20 UNF7/16”-20 UNF131610.52 x 1.83
1/2”-20 UNF1/2”-20 UNF131610.52 x 1.83
9/16”-18 UNF9/16”-18 UNF141711.90 x 1.98
9/16”-18 UNF3/4”-16 UNF191711.90 x 1.98
3/4”-16 UNF9/16”-18 UNF192216.36 x 2.20
3/4”-16 UNF3/4”-16 UNF192216.36 x 2.20
3/4”-16 UNF7/8”-14 UNF222216.36 x 2.20
3/4”-16 UNF1.1/16”-12 UN222716.36 x 2.20
7/8”-14 UNF3/4”-16 UNF222519.18 x 2.46
7/8”-14 UNF7/8”-14 UNF222719.18 x 2.46
7/8”-14 UNF1.1/16”-12 UN272519.18 x 2.46
1.1/16”-12 UN3/4”-16 UNF223223.47 x 2.95
1.1/16”-12 UN7/8”-14 UNF322223.47 x 2.95
1.1/16”-12 UN1.1/16”-12 UN273223.47 x 2.95
1.1/16”-12 UN1.5/16”-12 UN333223.47 x 2.95
1.5/16”-12 UN1.1/16”-12 UN382729.74 x 2.95
1.5/16”-12 UN1.5/16”-12 UN333829.74 x 2.95
1.5/16”-12 UN1.5/8”-12 UN413829.74 x 2.95
1.5/8”-12 UN1.5/16”-12 UN334837.47 x 3.00
1.5/8”-12 UN1.5/8”-12 UN414837.47 x 3.00
1.7/8”-12 UN1.7/8”-12 UN485443.69 x 3.00
2.1/2”-12 UN2.1/2”-12 UN667059.36 x 3.00

SW, S1, S2 = Width across flats

Product Version: Stainless Steel (SS)

The details

Connection 1
UN / UNF external threads
Sealing form 1
O-ring seal on screw-in socket
Connection 2
UN / UNF external threads
Sealing form 2
74° outer cone
Design
Adjustable direction screw-in socket
Construction
Angle 45°
Material
Steel
Surface
MotusCoat™

Downloads

JIC Male / UNO Male Positional 45 data sheetPDF, matches the catalogueDownload
Surface

MotusCoat™

In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.

Competitor coating after 1000-hour salt spray testing
A fitting with a competitor coating, covered in red rust
A fitting with MotusCoat, with no red rust
MotusCoat™After a 1000-hour salt spray test according to DIN EN ISO 9227
