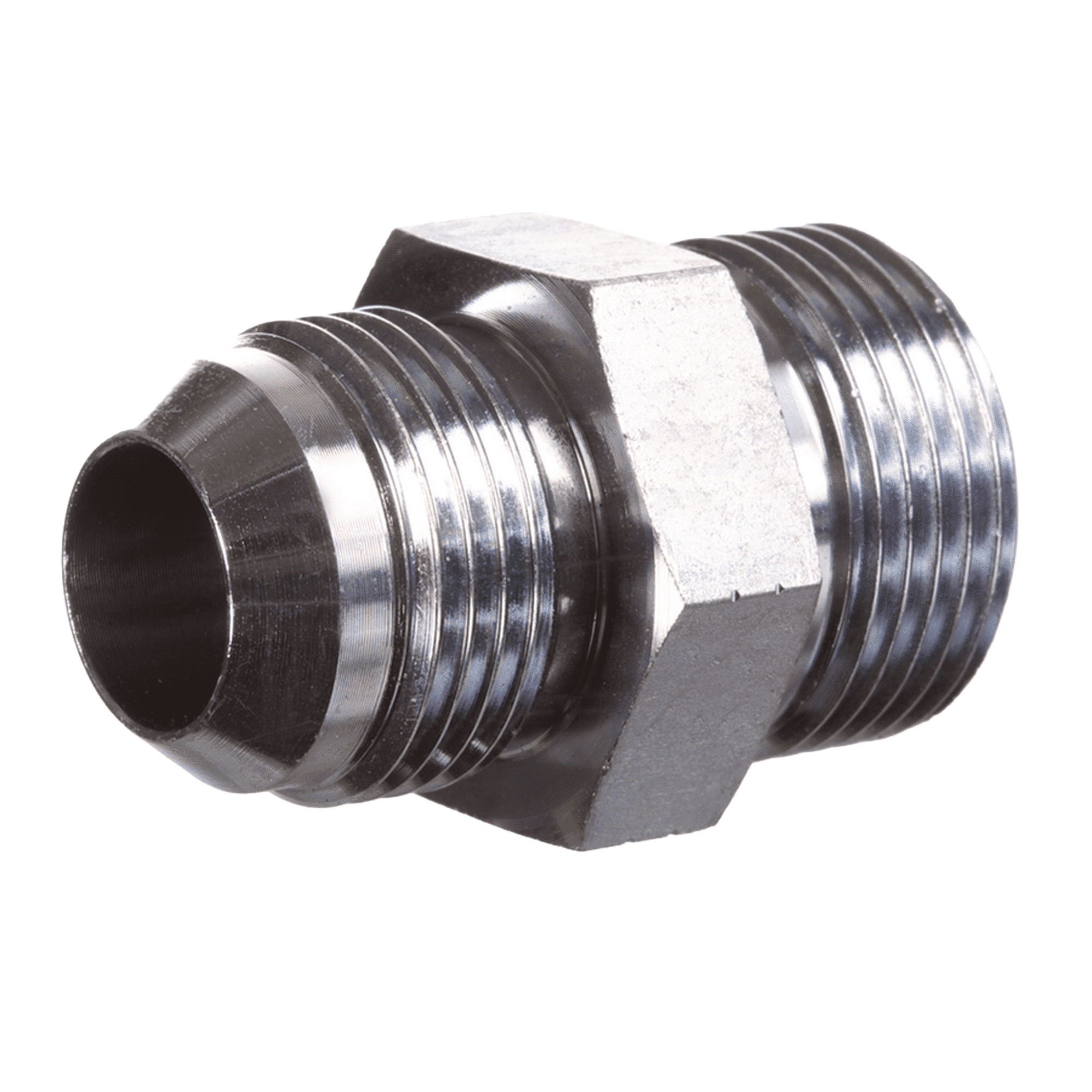

Connection sockets. Straight. UN / UNF external threads to oRFS external threads. 74° inner cone one end, flat seal with O-ring the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 9 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 | G2 | SW mm | OR |
|---|---|---|---|---|
| 7/16”-20 UNF | 9/16”-18 UNF | 16 | 7.65 x 1.78 | |
| 1/2”-20 UNF | 11/16”-16 UN | 19 | 9.25 x 1.78 | |
| 9/16”-18 UNF | 11/16”-16 UN | 19 | 9.25 x 1.78 | |
| 3/4”-16 UNF | 13/16”-16 UN | 22 | 12.42 x 1.78 | |
| 7/8”-14 UNF | 1”–14 UNS | 27 | 15.60 x 1.78 | |
| 1.1/16”-12 UN | 1.3/16”-12 UN | 32 | 18.77 x 1.78 | |
| 1.5/16”-12 UN | 1.7/16”-12 UN | 38 | 23.52 x 1.78 | |
| 1.5/8”-12 UN | 1.11/16”-12 UN | 45 | 29.87 x 1.78 | |
| 1.7/8”-12 UN | 2"-12 UN | 54 | 37.82 x 1.78 |
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
