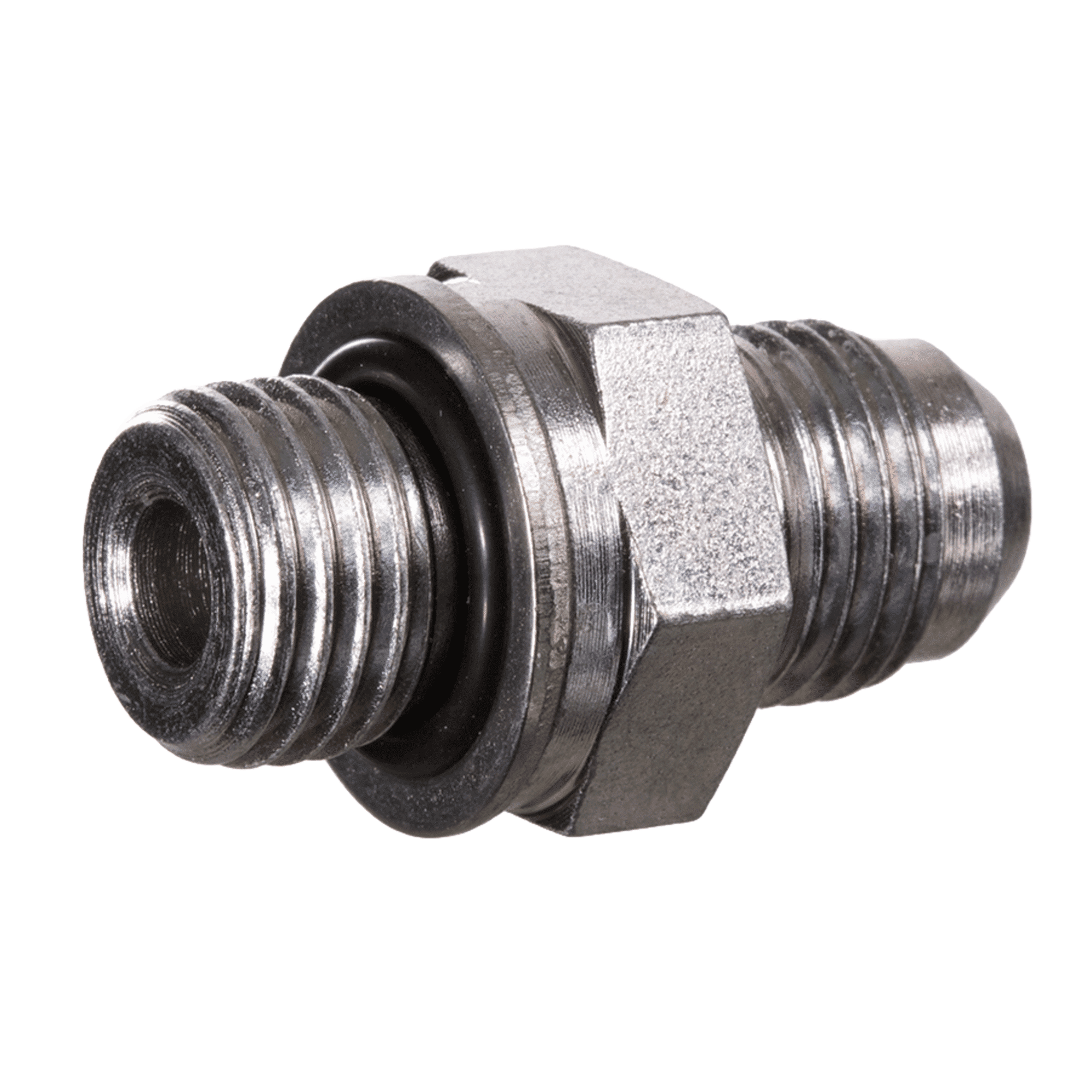

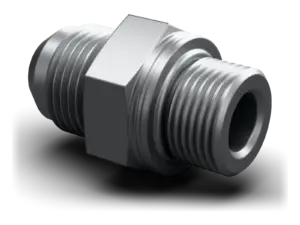

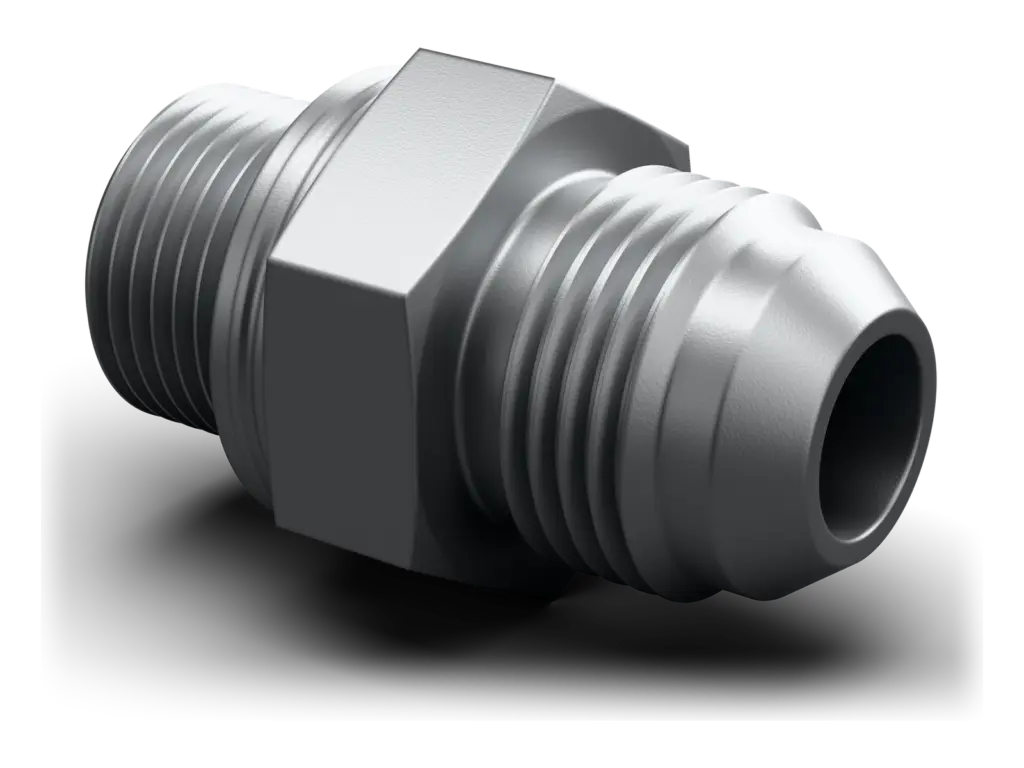

Screw-in sockets. Straight. Metric cylindrical outer thread to uN / UNF nut threads. Thread socket with O-ring + spacer diaphragm ring one end, 74° outer cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 25 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 | G2 | SW mm | OR |
|---|---|---|---|---|
| M 10 x 1 | 7/16”-20 UNF | 14 | 8.00 x 1.50 | |
| M 10 x 1 | 1/2”-20 UNF | 14 | 8.00 x 1.50 | |
| M 12 x 1.5 | 7/16”-20 UNF | 17 | 9.30 x 2.30 | |
| M 12 x 1.5 | 1/2”-20 UNF | 19 | 9.30 x 2.30 | |
| M 14 x 1.5 | 1/2”-20 UNF | 19 | 11.30 x 2.30 | |
| M 14 x 1.5 | 9/16”-18 UNF | 19 | 11.30 x 2.30 | |
| M 14 x 1.5 | 3/4”-16 UNF | 19 | 11.30 x 2.30 | |
| M 16 x 1.5 | 9/16”-18 UNF | 22 | 13.30 x 2.30 | |
| M 16 x 1.5 | 3/4”-16 UNF | 22 | 13.30 x 2.30 | |
| M 18 x 1.5 | 3/4”-16 UNF | 24 | 15.30 x 2.30 | |
| M 18 x 1.5 | 7/8”-14 UNF | 24 | 15.30 x 2.30 | |
| M 18 x 1.5 | 1.1/16”-12 UN | 27 | 15.30 x 2.30 | |
| M 20 x 1.5 | 7/8”-14 UNF | 27 | 17.30 x 2.30 | |
| M 22 x 1.5 | 3/4”-16 UNF | 27 | 19.30 x 2.30 | |
| M 22 x 1.5 | 7/8”-14 UNF | 27 | 19.30 x 2.30 | |
| M 22 x 1.5 | 1.1/16”-12 UN | 27 | 19.30 x 2.30 | |
| M 26 x 1.5 | 3/4”-16 UNF | 27 | 23.50 x 2.60 | |
| M 26 x 1.5 | 1.1/16”-12 UN | 32 | 23.50 x 2.60 | |
| M 26 x 1.5 | 1.3/16”-12 UN | 32 | 23.50 x 2.60 | |
| M 26 x 1.5 | 1.5/16”-12 UN | 36 | 23.50 x 2.60 | |
| M 27 x 2 | 1.1/16”-12 UN | 32 | 23.47 x 2.95 | |
| M 27 x 2 | 1.5/16”-12 UN | 36 | 23.47 x 2.95 | |
| M 33 x 2 | 1.5/16”-12 UN | 41 | 29.74 x 2.95 | |
| M 42 x 2 | 1.5/8”-12 UN | 50 | 38.00 x 3.00 | |
| M 48 x 2 | 1.7/8”-12 UN | 55 | 44.00 x 3.00 |
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
