Hydraulic Adaptors

JIC Male / NPT Male

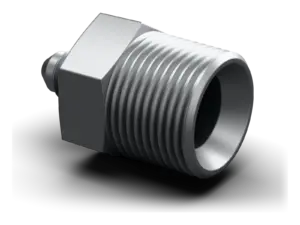

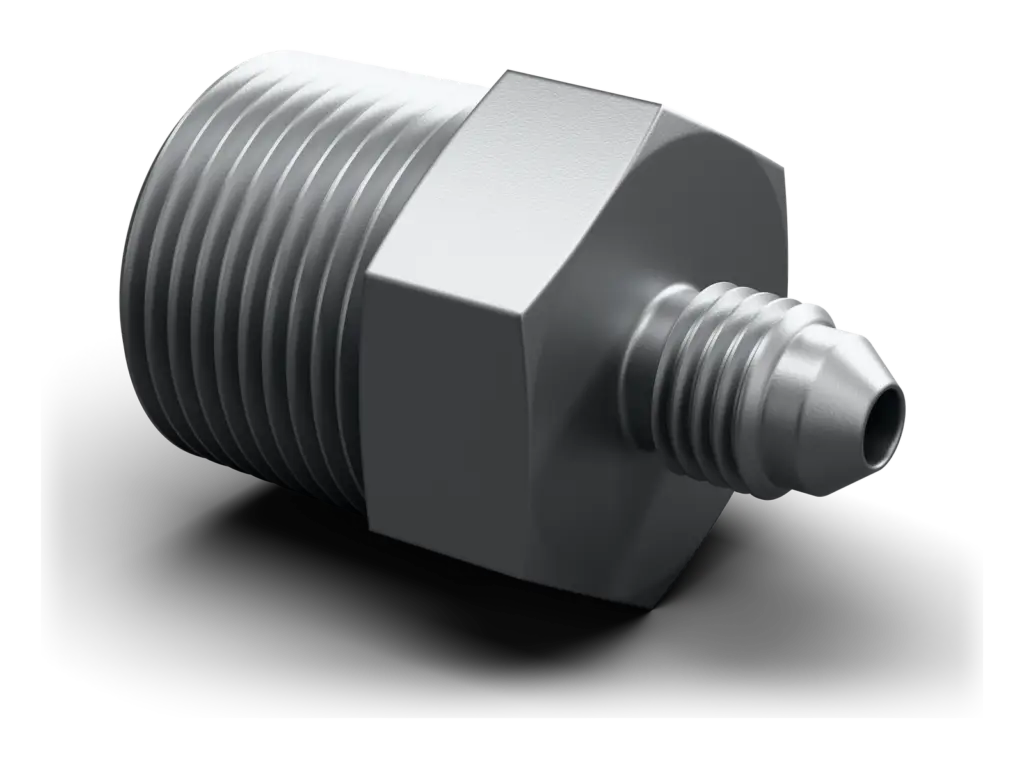

JIC Male / NPT Male

Screw-in sockets. Straight. NPT external threads to uN / UNF external threads. Thread seal one end, 74° outer cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 45 sizes, each with its own part number.

45sizes
NTM-JIM-0203-MC to NTM-JIM-3232-MC
Request a priceData sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

SurfaceMotusCoat™
MaterialSteel

Pick your size

Tick the sizes you need, then request a price.

SW
Width across flats
IdentificationG1G2SW mm
1/8”-27 NPT3/8”-24 UNF12
1/8”-27 NPT7/16”-20 UNF12
1/8”-27 NPT1/2”-20 UNF14
1/8”-27 NPT9/16”-18 UNF17
1/8”-27 NPT3/4”-16 UNF19
1/4”-18 NPT7/16”-20 UNF14
1/4”-18 NPT1/2”-20 UNF14
1/4”-18 NPT9/16”-18 UNF17
1/4”-18 NPT3/4”-16 UNF19
3/8”-18 NPT9/16”-18 UNF19
3/8”-18 NPT7/16”-20 UNF19
3/8”-18 NPT1/2”-20 UNF19
3/8”-18 NPT3/4”-16 UNF19
3/8”-18 NPT7/8”-14 UNF24
3/8”-18 NPT1.1/16”-12 UN27
1/2”-14 NPT7/16”-20 UNF24
1/2”-14 NPT1/2”-20 UNF24
1/2”-14 NPT9/16”-18 UNF24
1/2”-14 NPT3/4”-16 UNF24
1/2”-14 NPT7/8”-14 UNF24
1/2”-14 NPT1.1/16”-12 UN27
1/2”-14 NPT1.5/16”-12 UN36
3/4”-14 NPT7/16”-20 UNF27
3/4”-14 NPT9/16”-18 UNF27
3/4”-14 NPT3/4”-16 UNF27
3/4”-14 NPT7/8”-14 UNF27
3/4”-14 NPT1.1/16”-12 UN27
3/4”-14 NPT1.3/16”-12 UN32
3/4”-14 NPT1.5/16”-12 UN36
IdentificationG1G2SW mm
1"-11.5 NPT1.5/16”-12 UN36
1"-11.5 NPT1.1/16”-12 UN36
1"-11.5 NPT1.5/8”-12 UN46
1"-11.5 NPT1.7/8”-12 UN50
1.1/4”-11.5 NPT1.1/16”-12 UN46
1.1/4”-11.5 NPT1.5/16”-12 UN46
1.1/4”-11.5 NPT1.5/8”-12 UN46
1.1/4”-11.5 NPT1.7/8”-12 UN50
1.1/4”-11.5 NPT2.1/2”-12 UN65
1.1/2”-11.5 NPT1.1/16”-12 UN50
1.1/2”-11.5 NPT1.5/16”-12 UN50
1.1/2”-11.5 NPT1.5/8”-12 UN50
1.1/2”–11.5 NPT1.7/8”–12 UN50
1.1/2”–11.5 NPT2.1/2”–12 UN65
2”–11.5 NPT1.7/8”–12 UN65
2”–11.5 NPT2.1/2”–12 UN65

Product Version: Stainless Steel (SS)

The details

Connection 1
NPT external threads
Sealing form 1
Thread seal
Connection 2
UN / UNF external threads
Sealing form 2
74° outer cone
Design
Screw-in sockets
Construction
Straight
Material
Steel
Surface
MotusCoat™

Downloads

JIC Male / NPT Male data sheetPDF, matches the catalogueDownload
Surface

MotusCoat™

In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.

Competitor coating after 1000-hour salt spray testing
A fitting with a competitor coating, covered in red rust
A fitting with MotusCoat, with no red rust
MotusCoat™After a 1000-hour salt spray test according to DIN EN ISO 9227
