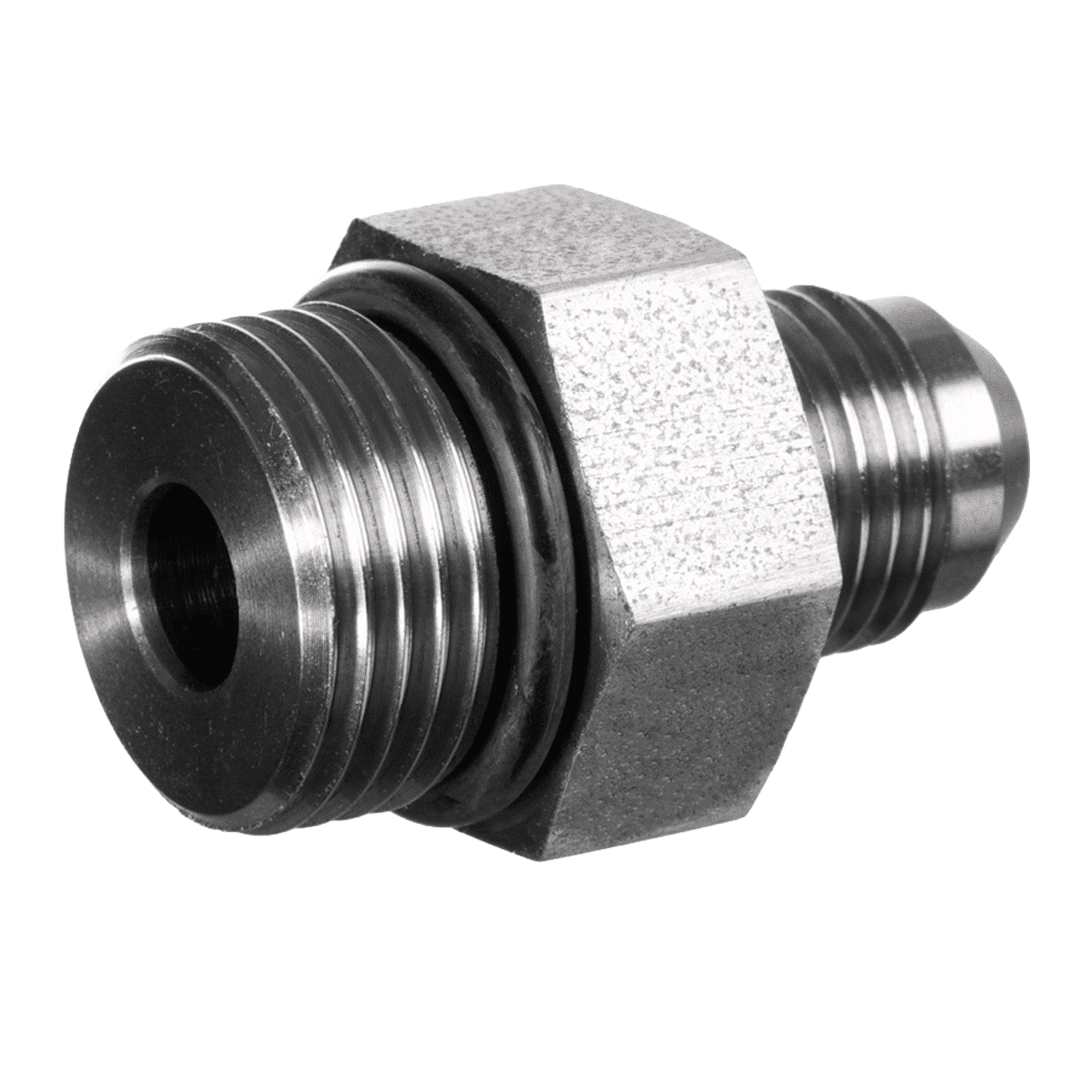

Screw-in sockets. Straight. Metric cylindrical outer thr to uN / UNF external threads. O-ring seal on screw-in socket one end, 74° outer cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 19 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 | G2 | SW mm | OR |
|---|---|---|---|---|
| M 10 x 1 | 7/16”-20 UNF | 14 | 8.1 x 1.6 | |
| M 10 x 1 | 1/2”-20 UNF | 14 | 8.1 x 1.6 | |
| M 12 x 1.5 | 7/16”-20 UNF | 17 | 9.3 x 2.2 | |
| M 12 x 1.5 | 1/2”-20 UNF | 17 | 9.3 x 2.2 | |
| M 14 x 1.5 | 1/2”-20 UNF | 19 | 11.3 x 2.2 | |
| M 14 x 1.5 | 9/16”-18 UNF | 19 | 11.3 x 2.2 | |
| M 14 x 1.5 | 3/4”-16 UNF | 19 | 11.3 x 2.2 | |
| M 16 x 1.5 | 9/16”-18 UNF | 22 | 13.3 x 2.2 | |
| M 16 x 1.5 | 3/4”-16 UNF | 22 | 13.3 x 2.2 | |
| M 18 x 1.5 | 9/16”-18 UNF | 24 | 15.3 x 2.2 | |
| M 18 x 1.5 | 3/4”-16 UNF | 24 | 15.3 x 2.2 | |
| M 18 x 1.5 | 7/8”-14 UNF | 24 | 15.3 x 2.2 | |
| M 22 x 1.5 | 7/8”-14 UNF | 27 | 19.3 x 2.2 | |
| M 22 x 1.5 | 1.1/16”-12 UN | 27 | 19.3 x 2.2 | |
| M 27 x 2 | 1.1/16”-12 UN | 32 | 23.6 x 2.9 | |
| M 27 x 2 | 1.5/16”-12 UN | 36 | 23.6 x 2.9 | |
| M 33 x 2 | 1.5/16”-12 UN | 41 | 29.6 x 2.9 | |
| M 42 x 2 | 1.5/8”-12 UN | 50 | 38.6 x 2.9 | |
| M 48 x 2 | 1.7/8”-12 UN | 55 | 44.6 x 2.9 |
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
