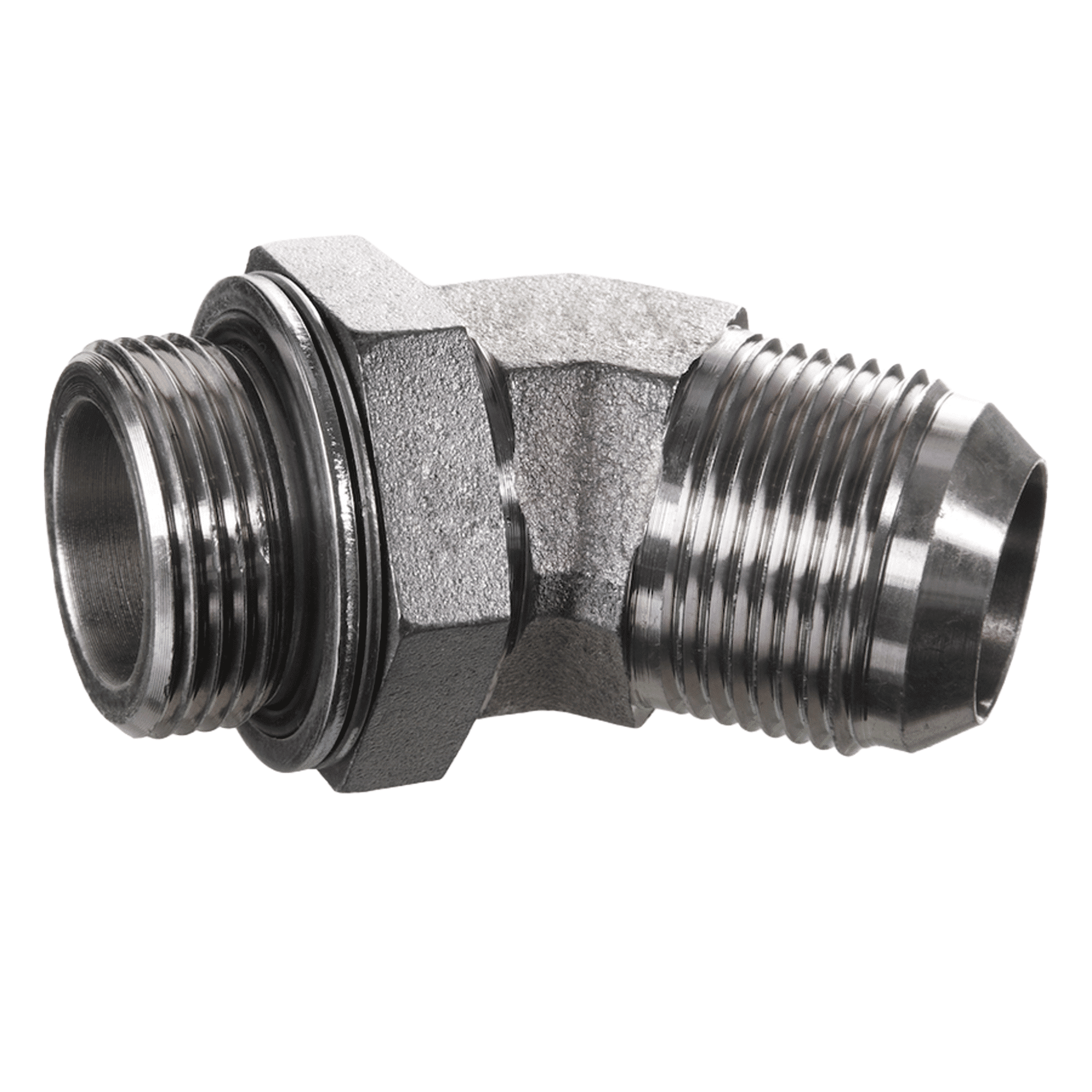

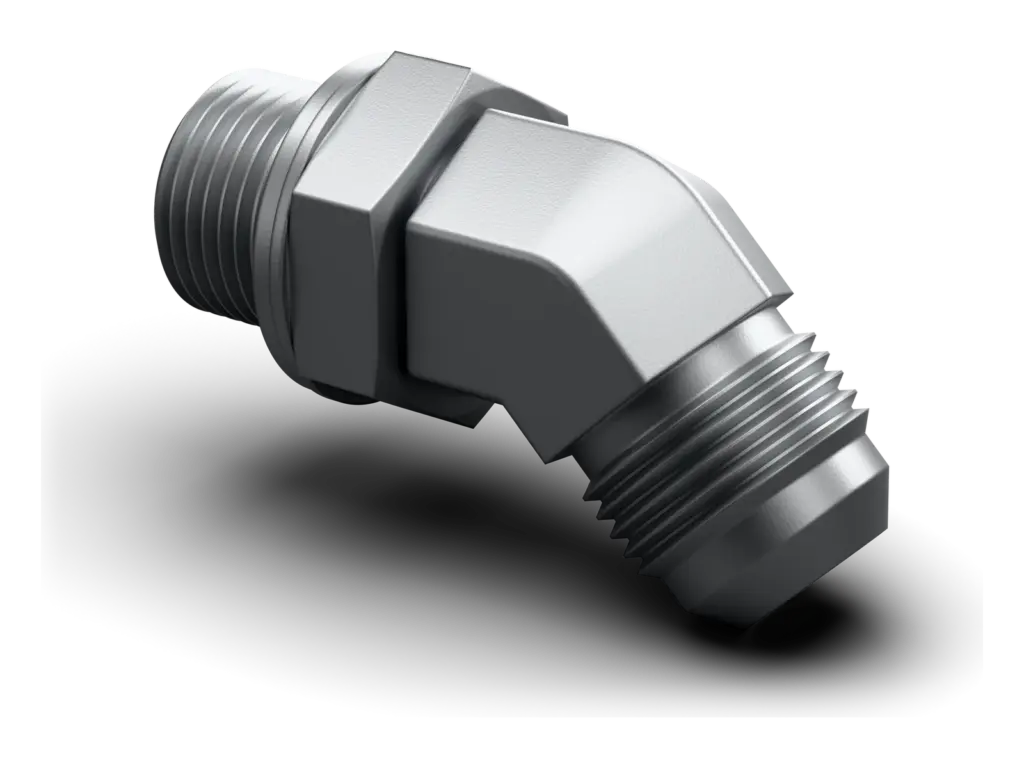

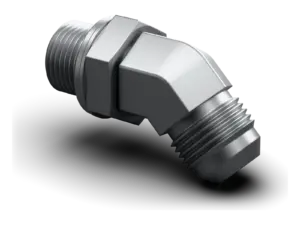

JIC Male / BSPP Male Positional 45 – Screw-in socket, angle 45°. Part of the Motus Hydraulic Adaptors range.
excl. GST
Not sure which model you need? Talk to Motus.
PRODUCT INFORMATION
JIC Male / BSPP Male Positional 45 is part of the Motus Hydraulic Adaptors range. Screw-in socket, angle 45°.
| Connection 1 | BSP external thread, cylindrical |
| Sealing form 1 | Thread socket with O-ring + spacer diaphragm ring |
| Connection 2 | UN / UNF external threads |
| Sealing form 2 | 74° inner cone |
| Design | Adjustable direction screw-in socket |
| Construction | Angle 45° |
| Material | Steel |
| Surface | MotusCoat™ |
Catalogue page: 322
JIC Male / BSPP Male Positional 45 – Screw-in socket, angle 45°. Part of the Motus Hydraulic Adaptors range.
Confirm both connection thread types and sizes, sealing form, fitting configuration and system pressure before ordering.
Not sure which size, configuration or hydraulic component you need? Tell us what you’re working with and the Motus team will help match the right product to the application.
