Hydraulic Adaptors

JIC Male / BSPP Male Positional 90

JIC Male / BSPP Male Positional 90

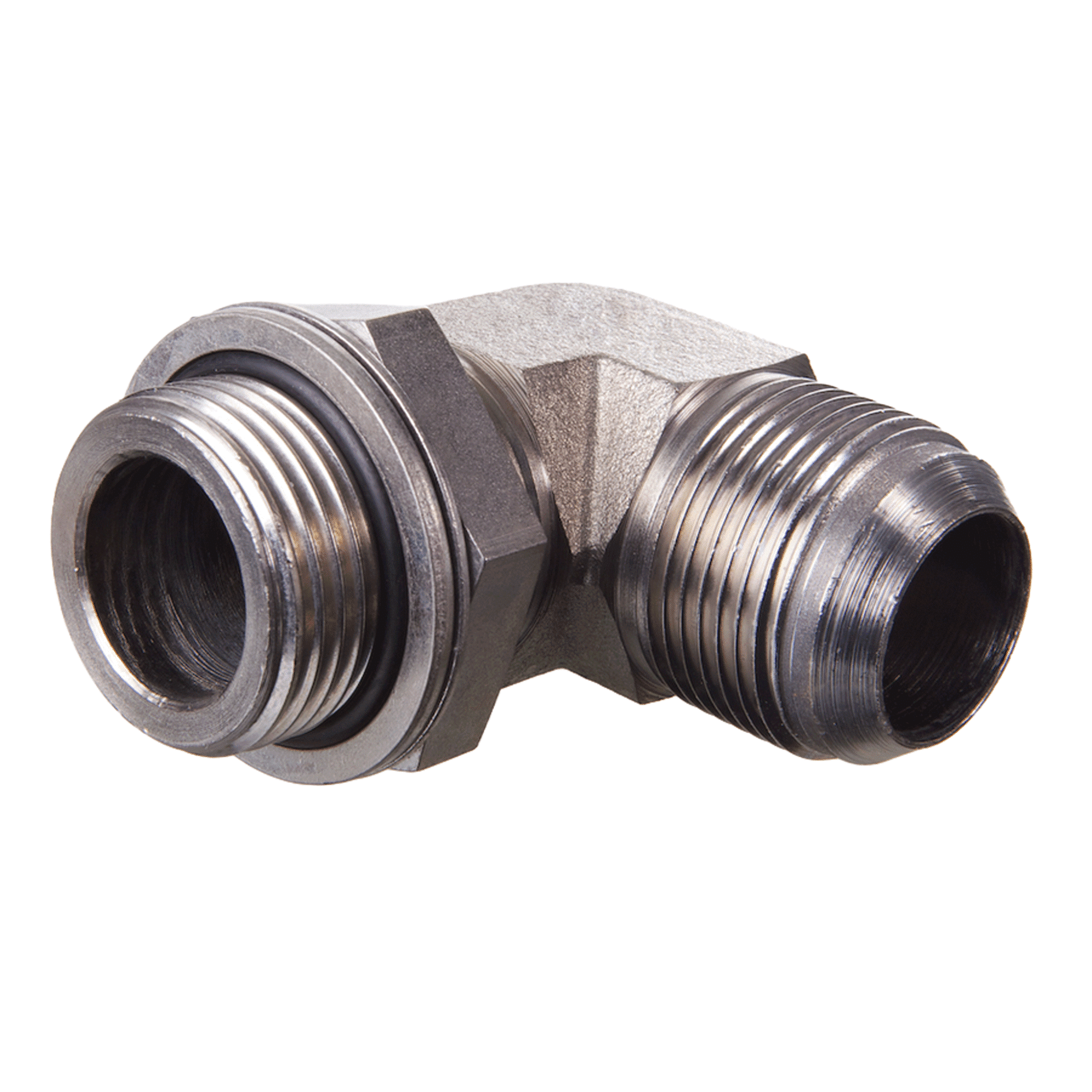

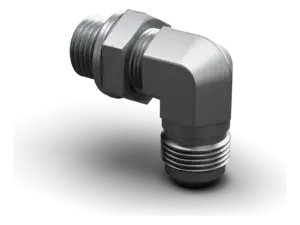

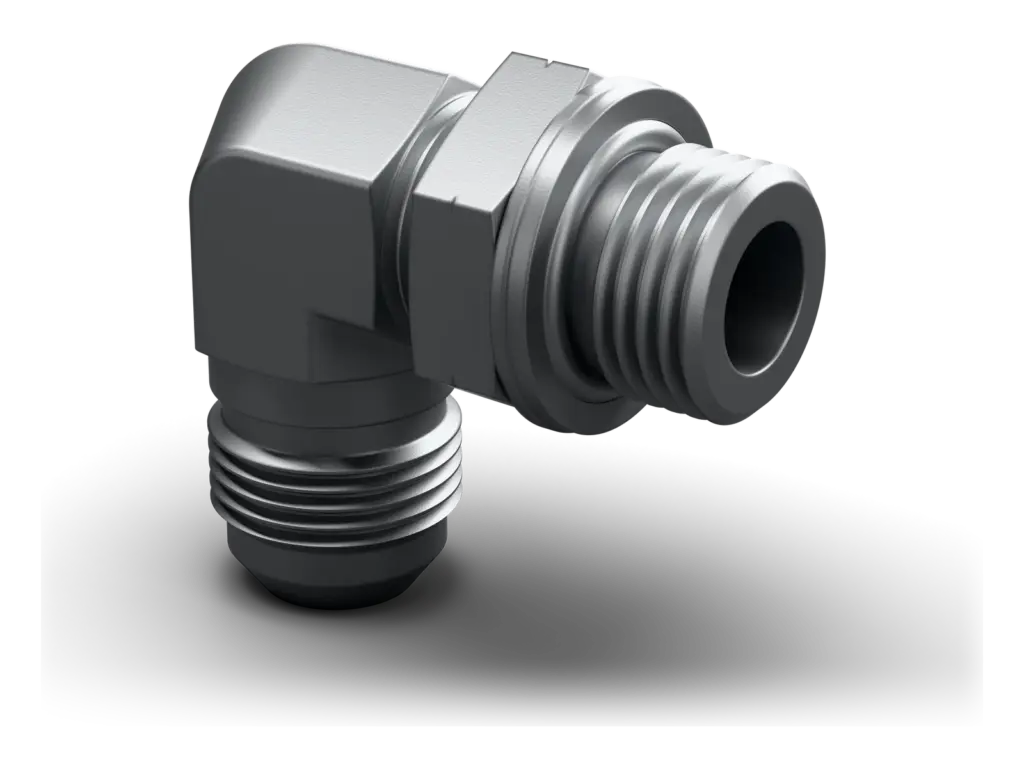

Screw-in socket, angle 90°. Adjustable direction screw-in socket. BSP external thread, cylindrical to uN / UNF external threads. Thread socket with O-ring + spacer diaphragm ring one end, 74° outer cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 29 sizes, each with its own part number.

29sizes
BPP-JIM-90C-0204-MC to BPP-JIM-90C-2424-MC
Request a priceData sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

SurfaceMotusCoat™
MaterialSteel

Pick your size

Tick the sizes you need, then request a price.

IdentificationG1G2SW mmS1OR
G 1/8”–287/16”-20 UNF12147.97 x 1.88
G 1/8”–281/2”-20 UNF14147.97 x 1.88
G 1/4”–197/16”-20 UNF141910.77 x 2.62
G 1/4”–191/2”-20 UNF141910.77 x 2.62
G 1/4”–199/16”-18 UNF141910.77 x 2.62
G 1/4”–193/4”-16 UNF191910.77 x 2.62
G 3/8”–197/16”-20 UNF192213.94 x 2.62
G 3/8”–191/2”-20 UNF192213.94 x 2.62
G 3/8”–199/16”-18 UNF192213.94 x 2.62
G 3/8”–193/4”-16 UNF192213.94 x 2.62
G 3/8”–197/8”-14 UNF222213.94 x 2.62
G 1/2”–147/16”-20 UNF192717.86 x 2.62
G 1/2”–149/16”-18 UNF222717.86 x 2.62
G 1/2”–143/4”-16 UNF222717.86 x 2.62
G 1/2”–147/8”-14 UNF222717.86 x 2.62
G 1/2”–141.1/16”–12 UN272717.86 x 2.62
G 5/8”–147/8”-14 UNF223019.70 x 2.62
G 3/4”–143/4”-16 UNF273623.47 x 2.62
G 3/4”–147/8”-14 UNF273623.47 x 2.62
G 3/4”–141.1/16”–12 UN273623.47 x 2.62
G 3/4”–141.3/16”–12 UN333623.47 x 2.62
G 3/4”–141.5/16”–12 UN333623.47 x 2.62
G 1”–111.1/16”–12 UN334129.74 x 3.53
G 1”–111.5/16”–12 UN334129.74 x 3.53
G 1”–111.5/8”–12 UN414129.74 x 3.53
G 1.1/4”–111.5/16”–12 UN415037.69 x 3.53
G 1.1/4”–111.5/8”–12 UN415037.69 x 3.53
G 1.1/4”–111.7/8”–12 UN485037.69 x 3.53
G 1.1/2”–111.7/8”–12 UN485544.04 x 3.53

SW, S1, S2 = Width across flats Product Version: Stainless Steel (SS)

The details

Connection 1
BSP external thread, cylindrical
Sealing form 1
Thread socket with O-ring + spacer diaphragm ring
Connection 2
UN / UNF external threads
Sealing form 2
74° outer cone
Design
Adjustable direction screw-in socket
Construction
Angle 90°
Material
Steel
Surface
MotusCoat™

Downloads

JIC Male / BSPP Male Positional 90 data sheetPDF, matches the catalogueDownload
Surface

MotusCoat™

In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.

Competitor coating after 1000-hour salt spray testing
A fitting with a competitor coating, covered in red rust
A fitting with MotusCoat, with no red rust
MotusCoat™After a 1000-hour salt spray test according to DIN EN ISO 9227

Goes with
