Hydraulic Adaptors

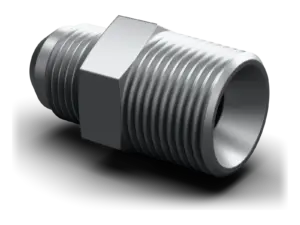

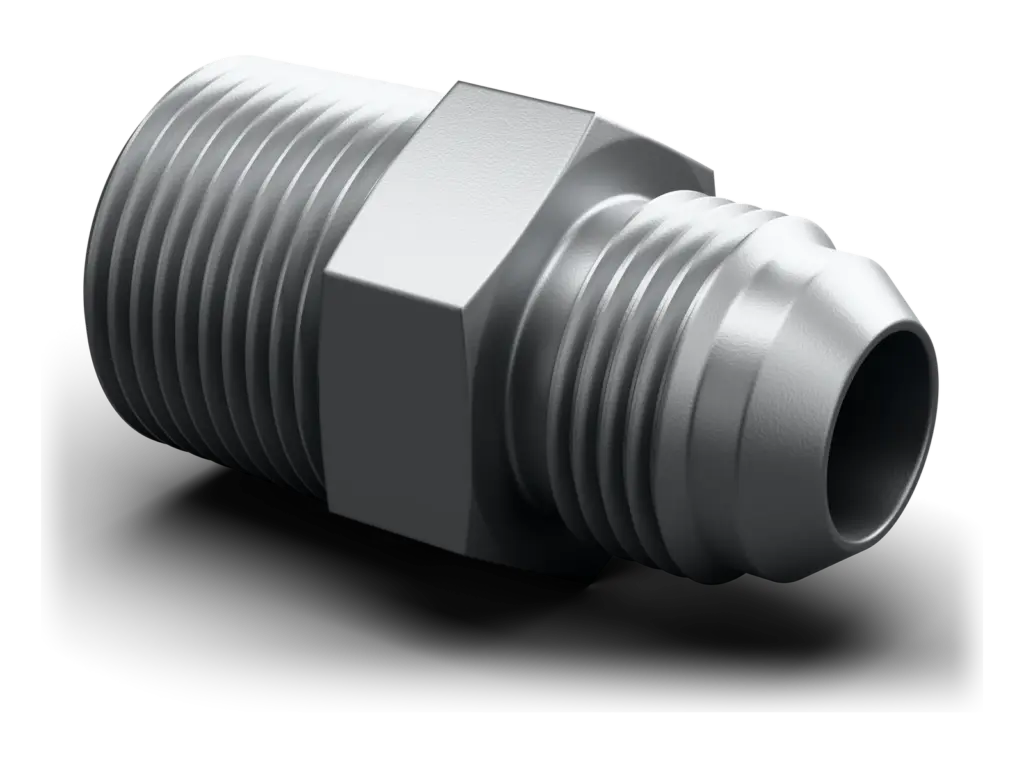

JIC Male / BSPT Male

JIC Male / BSPT Male

Screw-in sockets. Straight. BSPT conical external threads to uN / UNF external threads. Thread seal one end, 74° outer cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 40 sizes, each with its own part number.

40sizes
BTM-JIM-0204-MC to BTM-JIM-4848-MC
Request a priceData sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

SurfaceMotusCoat™
MaterialSteel

Pick your size

Tick the sizes you need, then request a price.

SW
Width across flats
IdentificationG1G2SW mm
R 1/8”K7/16”-20 UNF14
R 1/8”K1/2”-20 UNF14
R 1/4”K7/16”-20 UNF14
R 1/4”K1/2”-20 UNF14
R 1/4”K9/16”-18 UNF19
R 1/4”K3/4”-16 UNF22
R 3/8”K7/16”-20 UNF19
R 3/8”K1/2”-20 UNF19
R 3/8”K9/16”-18 UNF19
R 3/8”K3/4”-16 UNF22
R 3/8”K7/8”-14 UNF24
R 3/8”K1.1/16”-12 UN27
R 1/2”K9/16”-18 UNF22
R 1/2”K3/4”-16 UNF22
R 1/2”K7/8”-14 UNF24
R 1/2”K1.1/16”-12 UN27
R 1/2”K1.5/16”-12 UN36
R 5/8”K7/8”-14 UNF24
R 3/4”K9/16”-18 UNF27
R 3/4”K3/4”-16 UNF27
R 3/4”K7/8”-14 UNF27
R 3/4”K1.1/16”-12 UN27
R 3/4”K1.5/16”-12 UN36
R 3/4”K1.5/8”-12 UN46
R 1”K3/4”-16 UNF36
R 1”K7/8”-14 UNF36
R 1”K1.1/16”-12 UN36
R 1”K1.5/16”-12 UN36
R 1”K1.5/8”-12 UN46
IdentificationG1G2SW mm
R 1.1/4”K1.1/16”-12 UN46
R 1.1/4”K1.5/16”-12 UN46
R 1.1/4”K1.5/8”-12 UN46
R 1.1/4”K1.7/8”-12 UN50
R 1.1/2”K1.5/16”-12 UN50
R 1.1/2”K1.5/8”-12 UN50
R 1.1/2”K1.7/8”-12 UN50
R 1.1/2”K2.1/2”-12 UN65
R 2”K2.1/2”-12 UN65
R 2.1/2”K3”–11 UN70
R 3”K3.1/2”–11 UN80

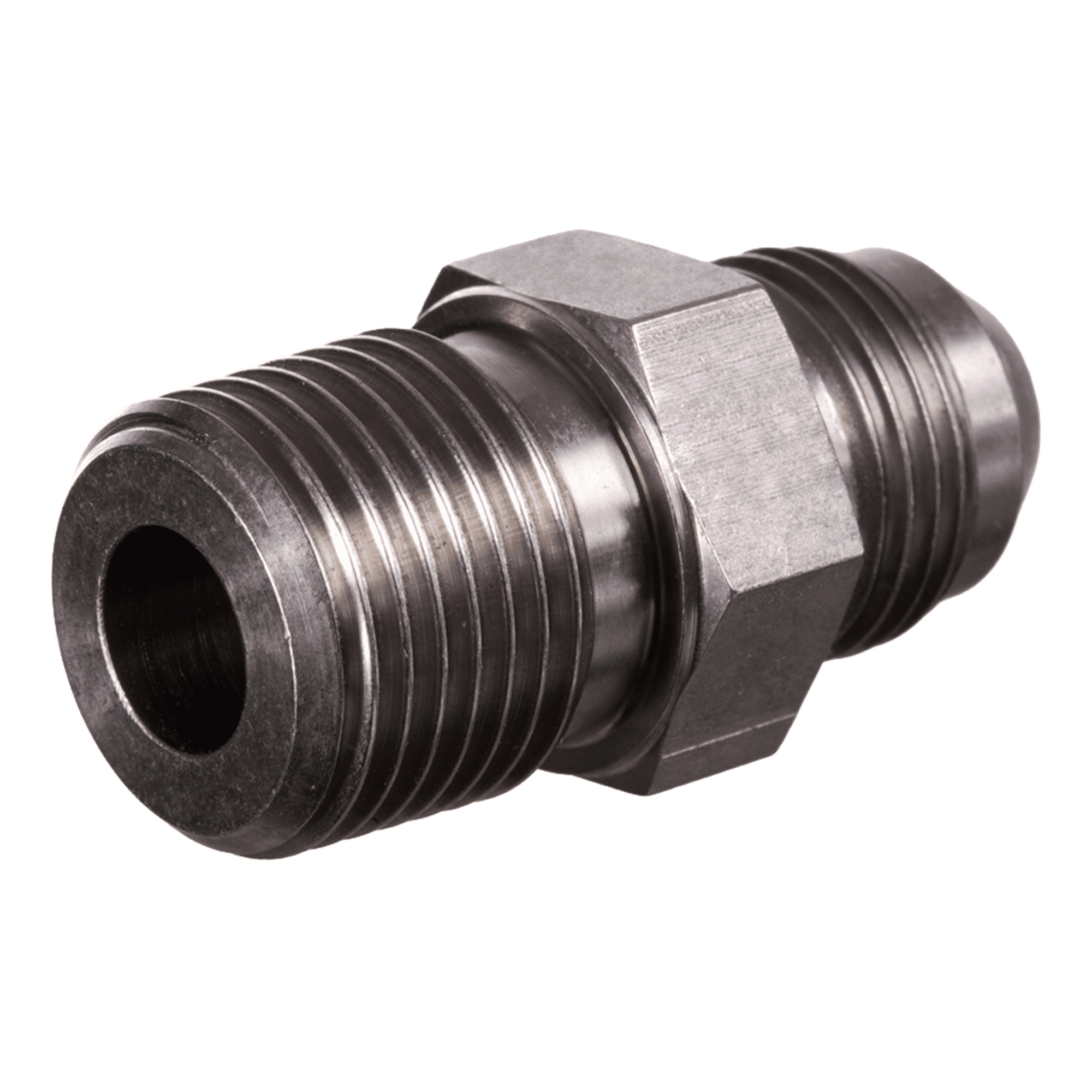

Product Version: Stainless Steel (SS)

The details

Connection 1
BSPT conical external threads
Sealing form 1
Thread seal
Connection 2
UN / UNF external threads
Sealing form 2
74° outer cone
Design
Screw-in sockets
Construction
Straight
Material
Steel
Surface
MotusCoat™

Downloads

JIC Male / BSPT Male data sheetPDF, matches the catalogueDownload
Surface

MotusCoat™

In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.

Competitor coating after 1000-hour salt spray testing
A fitting with a competitor coating, covered in red rust
A fitting with MotusCoat, with no red rust
MotusCoat™After a 1000-hour salt spray test according to DIN EN ISO 9227
