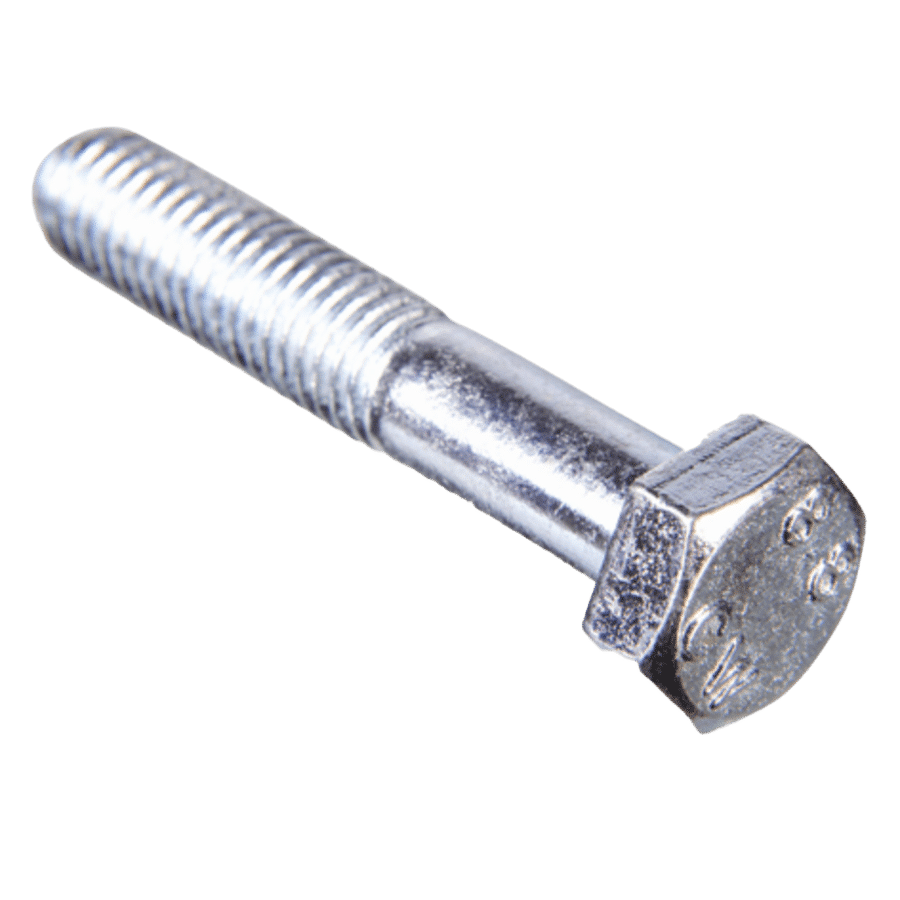

Hexagon screw for single pipe clamp. For single pipe clamps Heavy. Heavy series. To DIN 931 (ISO 4014) or DIN 933 (ISO 4017). Electro galvanised surface. Steel. 8 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | Clamp size | G | L mm | SW mm |
|---|---|---|---|---|
| 1 | M 10 | 40 | 17 | |
| 2 | M 10 | 60 | 17 | |
| 3 | M 10 | 70 | 17 | |
| 4 | M 12 | 100 | 19 | |
| 5 | M 16 | 130 | 24 | |
| 6 | M 20 | 190 | 30 | |
| 7 | M 24 | 220 | 36 | |
| 8 | M 30 | 300 | 46 |
Product Versions: HDSPC HB 30-100 V4 - Hexagon screw for single pipe clamp, Stainless steel 1.4571
Additional element for following products C D - Configuration of group C double C - Configuration of group C
