Heavy Duty Single Pipe Clamp

Name: Heavy Duty Single Pipe Clamp
Brand: Motus Hydraulics
SKU: HEAVY-DUTY-SINGLE-PIPE-CLAMP

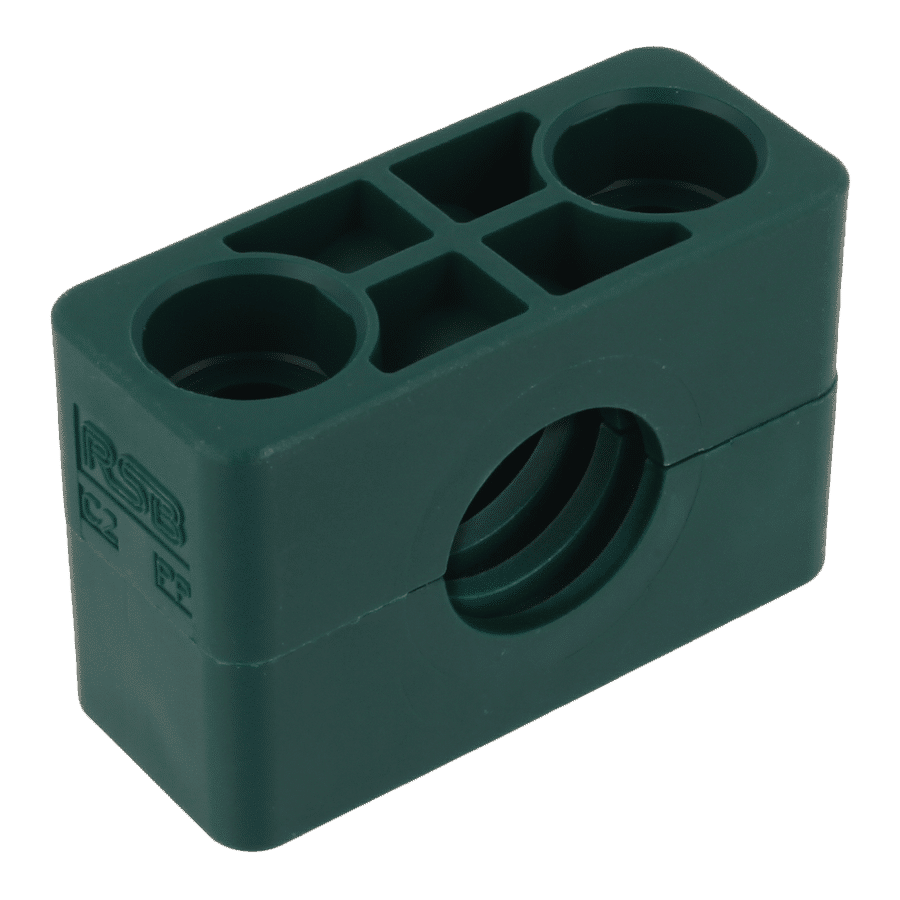

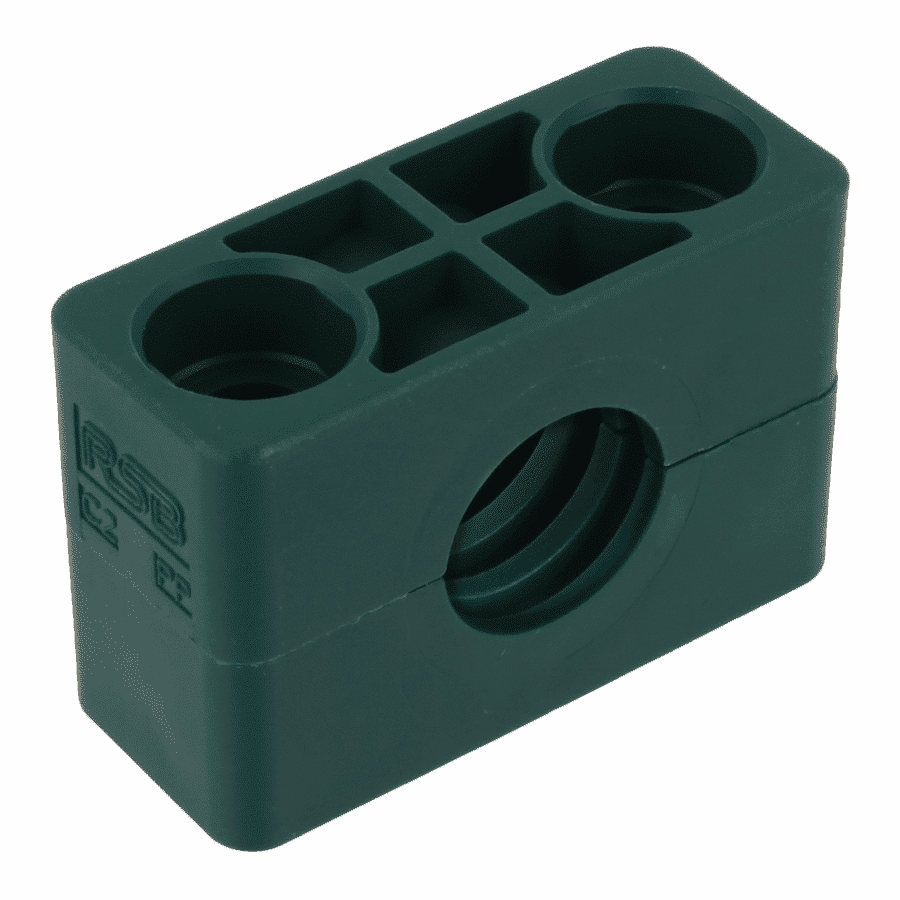

Pipe clamp, Heavy series. Single pipe clamp. To DIN 3015-2. Temperature range -30 °C to 90 °C. Polypropylene. 55 sizes, each with its own part number.

55sizes
HDSPC 3006 PP to HDSPC 10220 PP

Request a price Data sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

StandardDIN 3015-2

Temperature-30 °C to 90 °C

MaterialPolypropylene

Pick your size

Tick the sizes you need, then request a price.

Filter the sizes

Identification	Clamp size	External pipe Ø d2 mm	External pipe Ø d2 inch	B mm	e1 mm	H mm	L mm	S1 mm
HDSPC 3006 PP	1	6.0	-	30	33	32	56	2
HDSPC 3008 PP	1	8.0	5/16”	30	33	32	56	2
HDSPC 3010 PP	1	10.0	-	30	33	32	56	2
HDSPC 3012 PP	1	12.0	-	30	33	32	56	2
HDSPC 3012.7 PP	1	12.7	1/2”	30	33	32	56	2
HDSPC 3013.5 PP	1	13.5	-	30	33	32	56	2
HDSPC 3014 PP	1	14.0	-	30	33	32	56	2
HDSPC 3015 PP	1	15.0	-	30	33	32	56	2
HDSPC 3016 PP	1	16.0	5/8”	30	33	32	56	2
HDSPC 3017.2 PP	1	17.2	-	30	33	32	56	2
HDSPC 3018 PP	1	18.0	-	30	33	32	56	2
HDSPC 4019 PP	2	19.0	3/4”	30	45	48	71	2
HDSPC 4020 PP	2	20.0	-	30	45	48	71	2
HDSPC 4021.3 PP	2	21.3	-	30	45	48	71	2
HDSPC 4022 PP	2	22.0	-	30	45	48	71	2
HDSPC 4023 PP	2	23.0	-	30	45	48	71	2
HDSPC 4025 PP	2	25.0	1"	30	45	48	71	2
HDSPC 4026.9 PP	2	26.9	-	30	45	48	71	2

Identification	Clamp size	External pipe Ø d2 mm	External pipe Ø d2 inch	B mm	e1 mm	H mm	L mm	S1 mm
HDSPC 4028 PP	2	28.0	-	30	45	48	71	2
HDSPC 4030 PP	2	30.0	-	30	45	48	71	2
HDSPC 5030 PP	3	30.0	-	30	60	60	86	2
HDSPC 5032 PP	3	32.0	1.1/4”	30	60	60	86	2
HDSPC 5033.7 PP	3	33.7	-	30	60	60	86	2
HDSPC 5035 PP	3	35.0	-	30	60	60	86	2
HDSPC 5038 PP	3	38.0	1.1/2”	30	60	60	86	2
HDSPC 5040 PP	3	40.0	-	30	60	60	86	2
HDSPC 5042 PP	3	42.0	-	30	60	60	86	2
HDSPC 7073 PP	5	73.0	-	60	122	120	154	5
HDSPC 7075 PP	5	75.0	-	60	122	120	154	5
HDSPC 7076.1 PP	5	76.1	3"	60	122	120	154	5
HDSPC 7080 PP	5	80.0	-	60	122	120	154	5
HDSPC 7082.5 PP	5	82.5	3.1/4”	60	122	120	154	5
HDSPC 7088.9 PP	5	88.9	3.1/2”	60	122	120	154	5
HDSPC 7090 PP	5	90.0	-	60	122	120	154	5
HDSPC 8090 PP	6	90.0	-	80	168	170	205	6
HDSPC 8097 PP	6	97.0	-	80	168	170	205	6
HDSPC 8100 PP	6	100.0	-	80	168	170	205	6
HDSPC 8101.6 PP	6	101.6	4"	80	168	170	205	6
HDSPC 8108 PP	6	108.0	4.1/4”	80	168	170	205	6
HDSPC 8114.3 PP	6	114.3	4.1/2”	80	168	170	205	6
HDSPC 8127 PP	6	127.0	5"	80	168	170	205	6
HDSPC 9127 PP	7	127.0	5"	90	205	200	250	6
HDSPC 9133 PP	7	133.0	5.1/4”	90	205	200	250	6
HDSPC 9140 PP	7	140.0	5.1/2”	90	205	200	250	6
HDSPC 9150 PP	7	150.0	-	90	205	200	250	6
HDSPC 9152.4 PP	7	152.4	6"	90	205	200	250	6
HDSPC 9159 PP	7	159.0	6.1/4”	90	205	200	250	6
HDSPC 9165.1 PP	7	165.1	6.1/2”	90	205	200	250	6
HDSPC 9168.3 PP	7	168.3	6.5/8”	90	205	200	250	6
HDSPC 10168.3 PP	8	168.3	6.5/8”	120	265	270	320	6
HDSPC 10177.8 PP	8	177.8	7"	120	265	270	320	6
HDSPC 10193.7 PP	8	193.7	7.5/8”	120	265	270	320	6
HDSPC 10203 PP	8	203.0	-	120	265	270	320	6
HDSPC 10219.1 PP	8	219.1	8.5/8”	120	265	270	320	6
HDSPC 10220 PP	8	220.0	-	120	265	270	320	6

Note: The use of clamps with a smooth inner surface is recommended for retaining hoses and cables. No pretension is applied when fitting and the block height H is reduced to the gap width S1.

Product Versions: SRS 30-100 AL - Pipe clamp, Heavy series, Aluminium, Inside of clamp with web SRS 30-100 PA - Pipe clamp, Heavy series, Polyamide 6, Inside of clamp with web SRS 30-100 PP G - Pipe clamp, Heavy series, Polypropylene, Inside of clamp, smooth SRS 30-100 VG - Pipe clamp, Heavy series, Solid rubber Shore 64° / 73°, Inside of clamp with web

Additional element for following products: C D - Configuration of group C double C A - Configuration of group C composition C - Configuration of group C

The details

Design: Single pipe clamp
Supplementary design information: Inside of clamp with web
Series: Heavy
Standard: DIN 3015-2
Temp. min: -30 °C
Temp. max: 90 °C
Material: Polypropylene
Description: Webs in the inner surface of the clamps dampen impacts and vibrations and absorb forces along the pipe axis. A gap between the two halves pretensions the pipe.
