Pipe Clamps

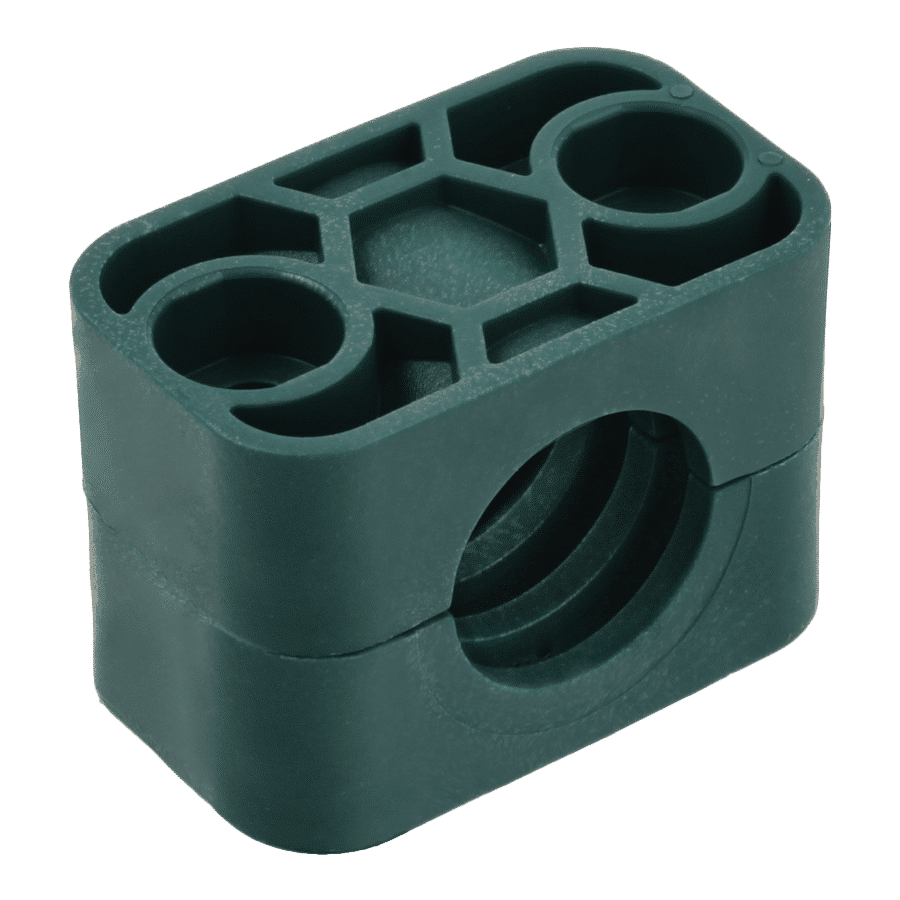

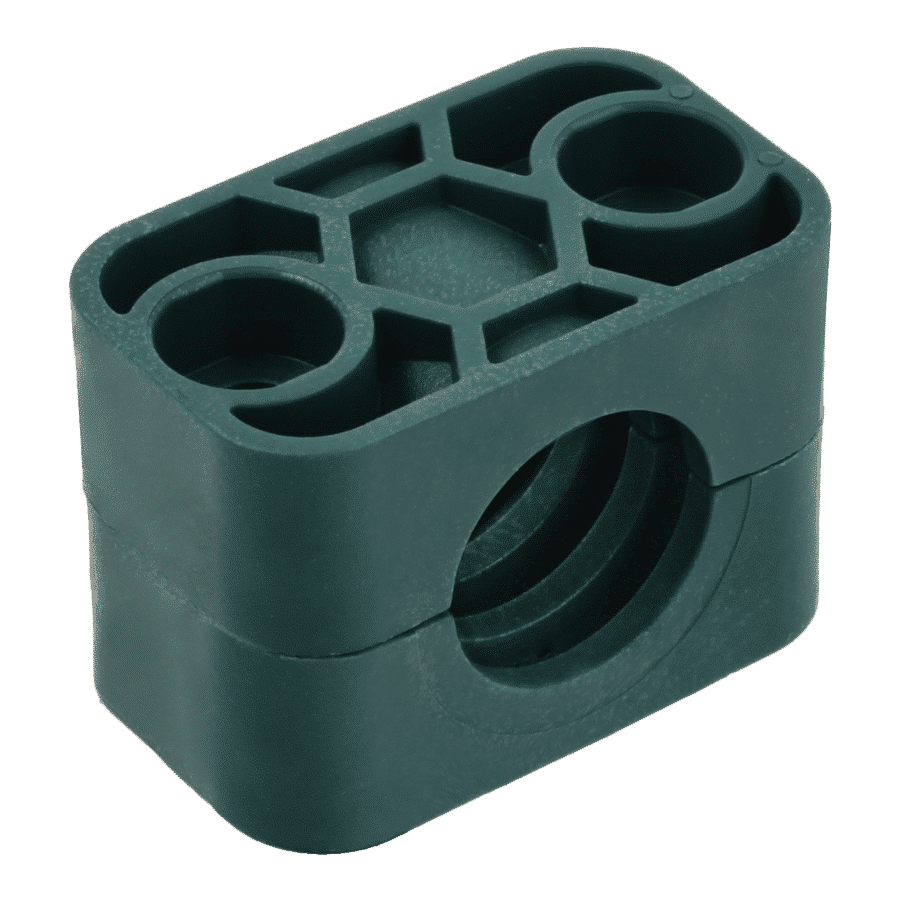

Single Pipe Clamp

Single Pipe Clamp

Pipe clamp, Light series. Single pipe clamp. To DIN 3015-1. Temperature range -30 °C to 90 °C. Polypropylene. 37 sizes, each with its own part number.

37sizes
SPC 106 PP to SPC 0657 PP
Request a priceData sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

StandardDIN 3015-1
Temperature-30 °C to 90 °C
MaterialPolypropylene

Pick your size

Tick the sizes you need, then request a price.

IdentificationExternal pipe Ø d2 mmExternal pipe Ø d2 inchClamp sizee1 mmH mmL mmS1 mm
6.0-12027340.6
6.41/4”12027340.6
8.05/16”12027340.6
9.53/8”12027340.6
10.0-12027340.6
12.0-12027340.6
12.71/2”22633400.8
13.5-22633400.8
14.0-22633400.8
15.0-22633400.8
16.05/8”22633400.8
17.2-22633400.8
18.0-22633400.8
19.03/4”33335481.0
20.0-33335481.0
21.3-33335481.0
IdentificationExternal pipe Ø d2 mmExternal pipe Ø d2 inchClamp sizee1 mmH mmL mmS1 mm
22.0-33335481.0
23.0-33335481.0
25.01"33335481.0
26.9-44042571.2
28.0-44042571.2
30.0-44042571.2
32.01.1/4”55258701.2
33.7-55258701.2
35.0-55258701.2
38.01.1/2”55258701.2
40.0-55258701.2
42.0-55258701.2
42.4-55258701.2
44.51.3/4”66666861.2
45.0-66666861.2
48.0-66666861.2
50.0-66666861.2
50.82"66666861.2
52.0-66666861.2
55.0-66666861.2
57.02.1/4”66666861.2

Note: The use of clamps with a smooth inner surface is recommended for retaining hoses and cables. No pretension is applied when fitting and the block height H is reduced to the gap width S1.

Product Versions: SRS 1-6 AL - Pipe clamp, Light series, Aluminium, Inside of clamp with web SRS 1-6 PA - Pipe clamp, Light series, Polyamide 6, Inside of clamp with web SRS 1-6 PA G - Pipe clamp, Light series, Polyamide 6, Inside of clamp, smooth Single Pipe Clamp G - Pipe clamp, Light series, Polypropylene, Inside of clamp, smooth SRS 1-6 VG - Pipe clamp, Light series, Solid rubber Shore 64° / 73°, Inside of clamp, smooth

Additional element for following products A 1-6 A - Configuration of group A 1-6 composition A 1-6 - Configuration of group A 1-6

The details

Design
Single pipe clamp
Supplementary design information
Inside of clamp with web
Series
Light
Standard
DIN 3015-1
Temp. min
-30 °C
Temp. max
90 °C
Material
Polypropylene
Description
Webs in the inner surface of the clamps dampen impacts and vibrations and absorb forces along the pipe axis. A gap between the two halves pretensions the pipe.

Downloads

Single Pipe Clamp data sheetPDF, matches the catalogueDownload
