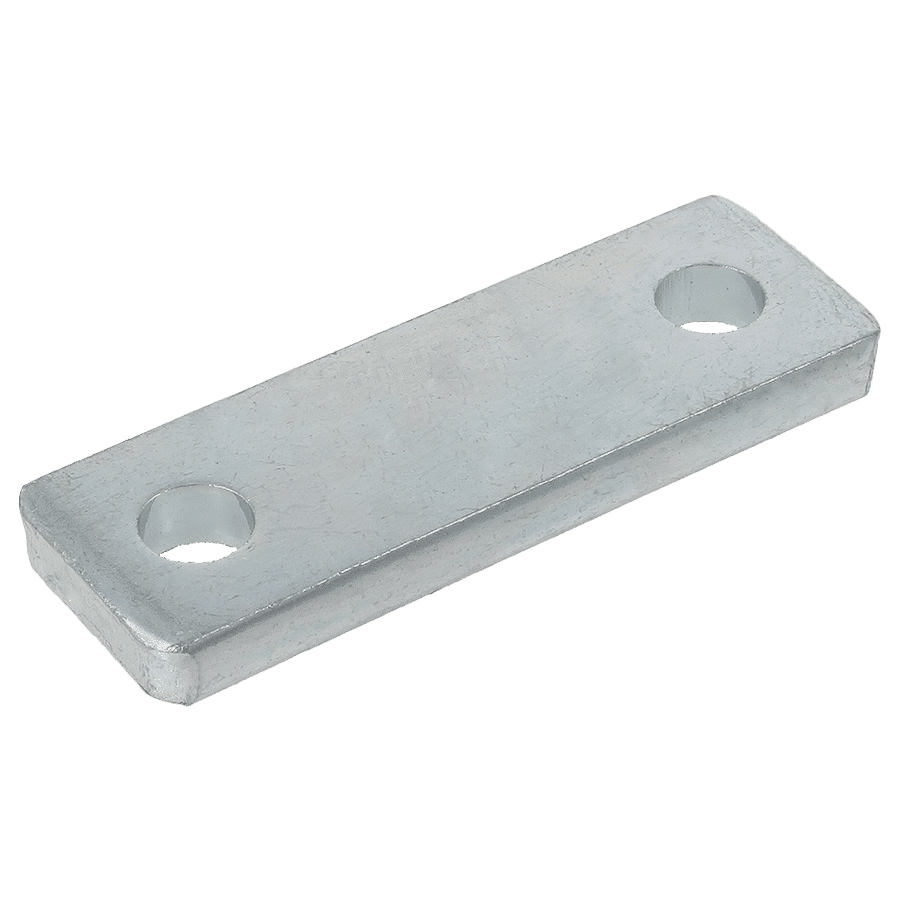

Cover plate for single pipe clamp. For single pipe clamps. Heavy series. To DIN 3015-2. Size 1 to size 4 Electro galvanised, uncoated from size 5 surface. Steel. 8 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | Clamp size | B mm | C mm | e1 mm | L mm | S mm |
|---|---|---|---|---|---|---|
| 1 | 30 | 11.0 | 33 | 55 | 8 | |
| 2 | 30 | 11.0 | 45 | 70 | 8 | |
| 3 | 30 | 11.0 | 60 | 85 | 8 | |
| 4 | 45 | 14.0 | 90 | 115 | 10 | |
| 5 | 60 | 18.0 | 122 | 152 | 10 | |
| 6 | 80 | 22.0 | 168 | 205 | 15 | |
| 7 | 90 | 28.0 | 205 | 250 | 15 | |
| 8 | 120 | 34.0 | 265 | 322 | 25 |
SW, S1, S2 = Width across flats
