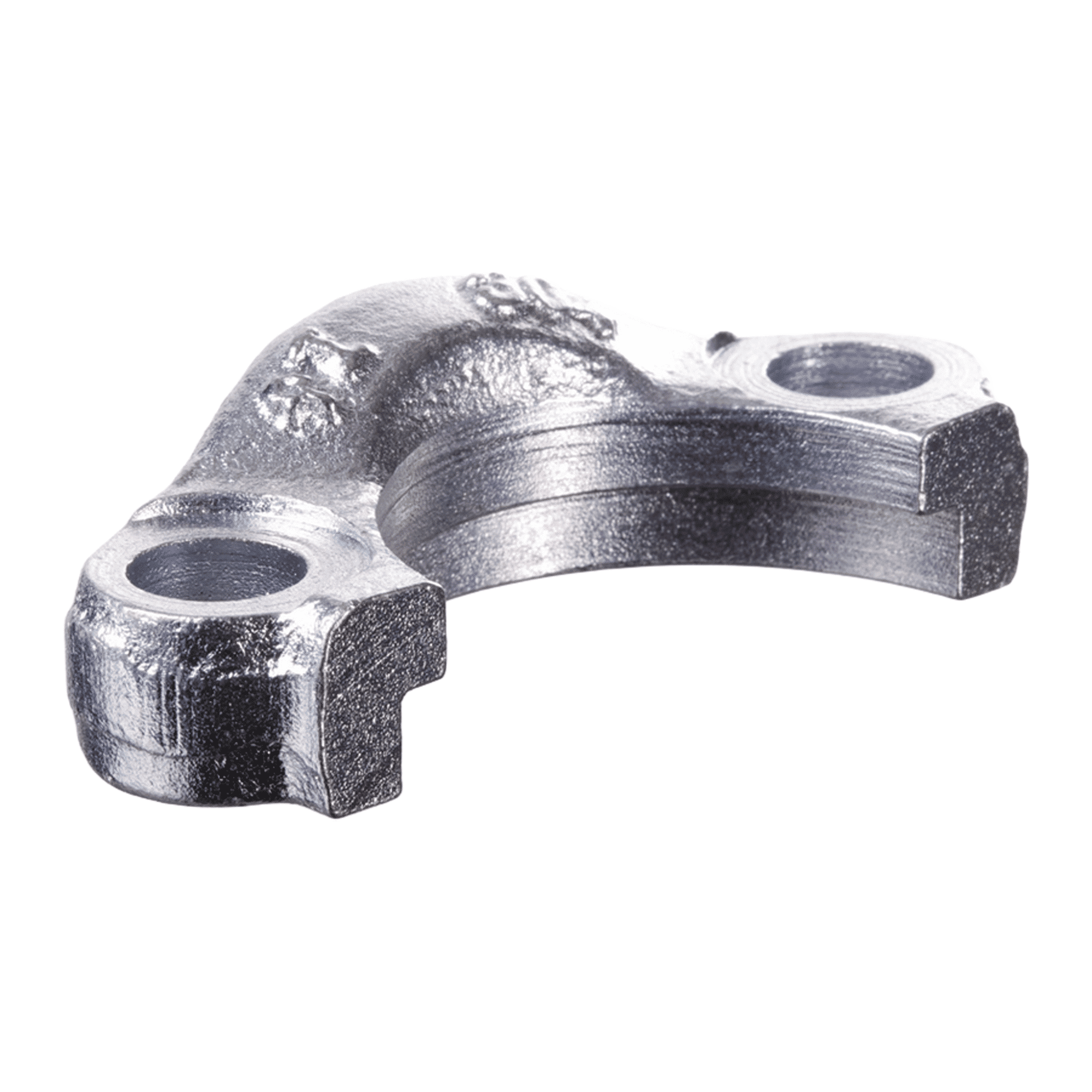

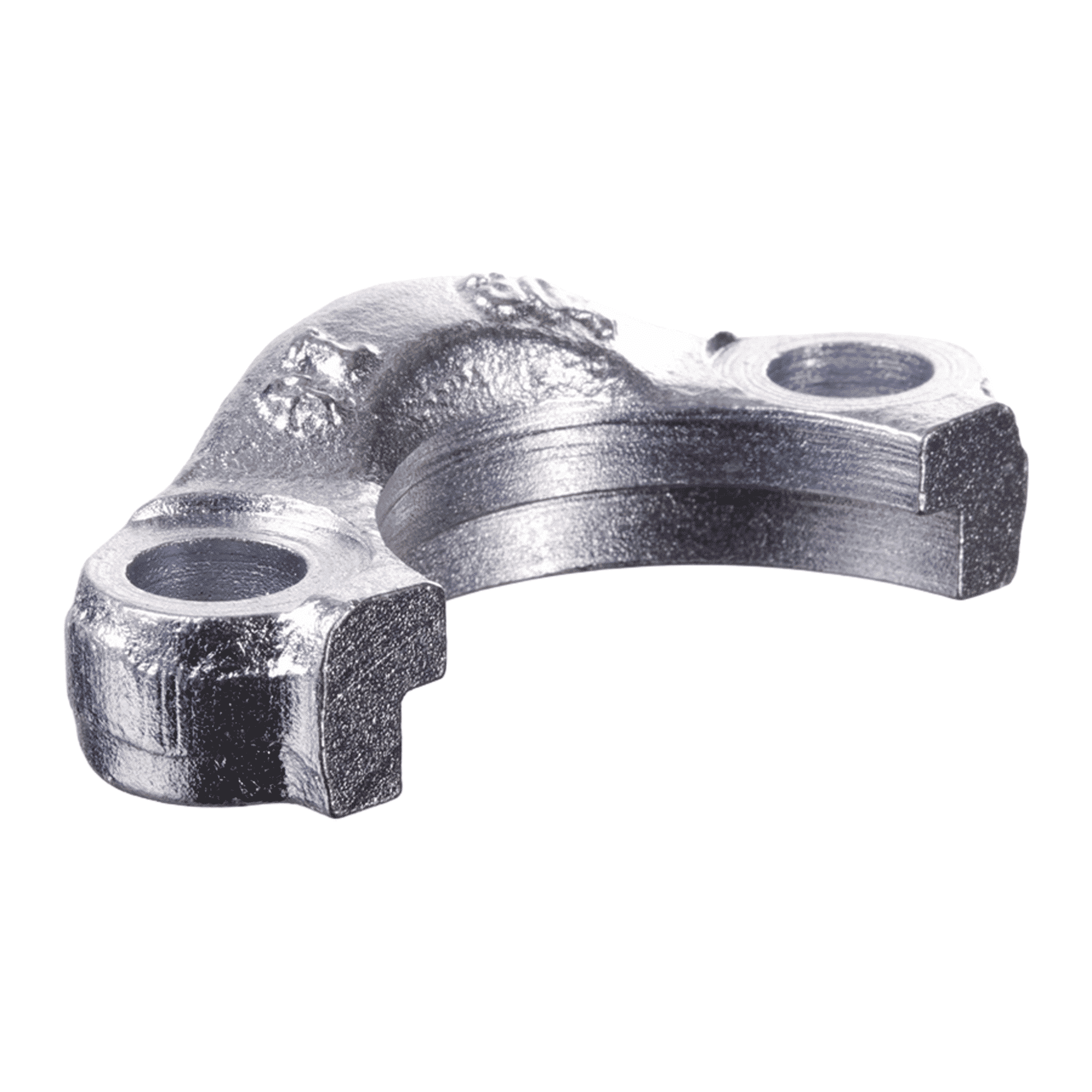

SAE flange half. Straight. 3000 psi. Mounting: screw bore hole. To SAE J518, ISO 6162-1 / -2. Electro galvanised surface. S355J2G3 (ST52.3). 13 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | PB 10.9 bar | Size | A mm | B mm | C mm | D mm | E mm | F mm | G mm | H mm | I mm | L mm | M metr. | M unc |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 350 | 1/2” | 31.0 | 24.3 | 38.1 | 54 | 8.7 | 22.8 | 19 | 13 | 6.2 | 8.7 | M 8 x 25 | 5/16”x 1.1/4” | |
| 350 | 3/4” | 38.9 | 32.1 | 47.6 | 65 | 11.1 | 25.9 | 22 | 14 | 6.2 | 10.7 | M 10 x 30 | 3/8”x 1.1/4” | |
| 315 | 1" | 45.2 | 38.5 | 52.4 | 70 | 13.1 | 29.2 | 24 | 16 | 7.5 | 10.7 | M 10 x 30 | 3/8”x 1.1/4” | |
| 250 | 1.1/4” | 51.6 | 43.7 | 58.7 | 79 | 15.1 | 36.3 | 22 | 16 | 7.5 | 12.0 | M 10 x 30 | 7/16”x 1.1/2” | |
| 250 | 1.1/4” | 51.6 | 43.7 | 58.7 | 79 | 15.1 | 36.3 | 22 | 16 | 7.5 | 10.7 | M 10 x 30 | - | |
| 250 | 1.1/4” | 51.6 | 43.7 | 58.7 | 79 | 15.1 | 36.3 | 22 | 16 | 7.5 | 12.7 | M 12 x 35 | - | |
| 200 | 1.1/2” | 61.1 | 50.8 | 69.9 | 94 | 17.9 | 41.1 | 25 | 16 | 7.5 | 13.5 | M 12 x 35 | 1/2”x 1.1/2” | |
| 200 | 2" | 72.2 | 62.7 | 77.8 | 102 | 21.4 | 48.2 | 26 | 16 | 9.0 | 13.5 | M 12 x 35 | 1/2”x 1.1/2” | |
| 160 | 2.1/2” | 84.9 | 74.9 | 88.9 | 114 | 25.4 | 54.1 | 38 | 19 | 9.0 | 13.5 | M 12 x 40 | 1/2”x 1.1/2” | |
| 160 | 3" | 102.4 | 90.9 | 106.4 | 135 | 31.0 | 65.3 | 41 | 22 | 9.0 | 17.0 | M 16 x 50 | 5/8”x 2” | |
| 35 | 3.1/2” | 115.1 | 102.4 | 120.7 | 152 | 34.9 | 69.5 | 28 | 22 | 10.7 | 17.0 | M 16 x 50 | 5/8”x 2” | |
| 35 | 4" | 127.8 | 115.1 | 130.2 | 162 | 38.9 | 76.0 | 35 | 25 | 10.7 | 17.0 | M 16 x 50 | 5/8”x 2” | |
| 35 | 5" | 153.2 | 140.5 | 152.4 | 184 | 46.0 | 90.0 | 41 | 28 | 10.7 | 17.0 | M 16 x 55 | 5/8”x 2” |
Note: Recommended screws are listed in the columns M (metr) and M (unc).
