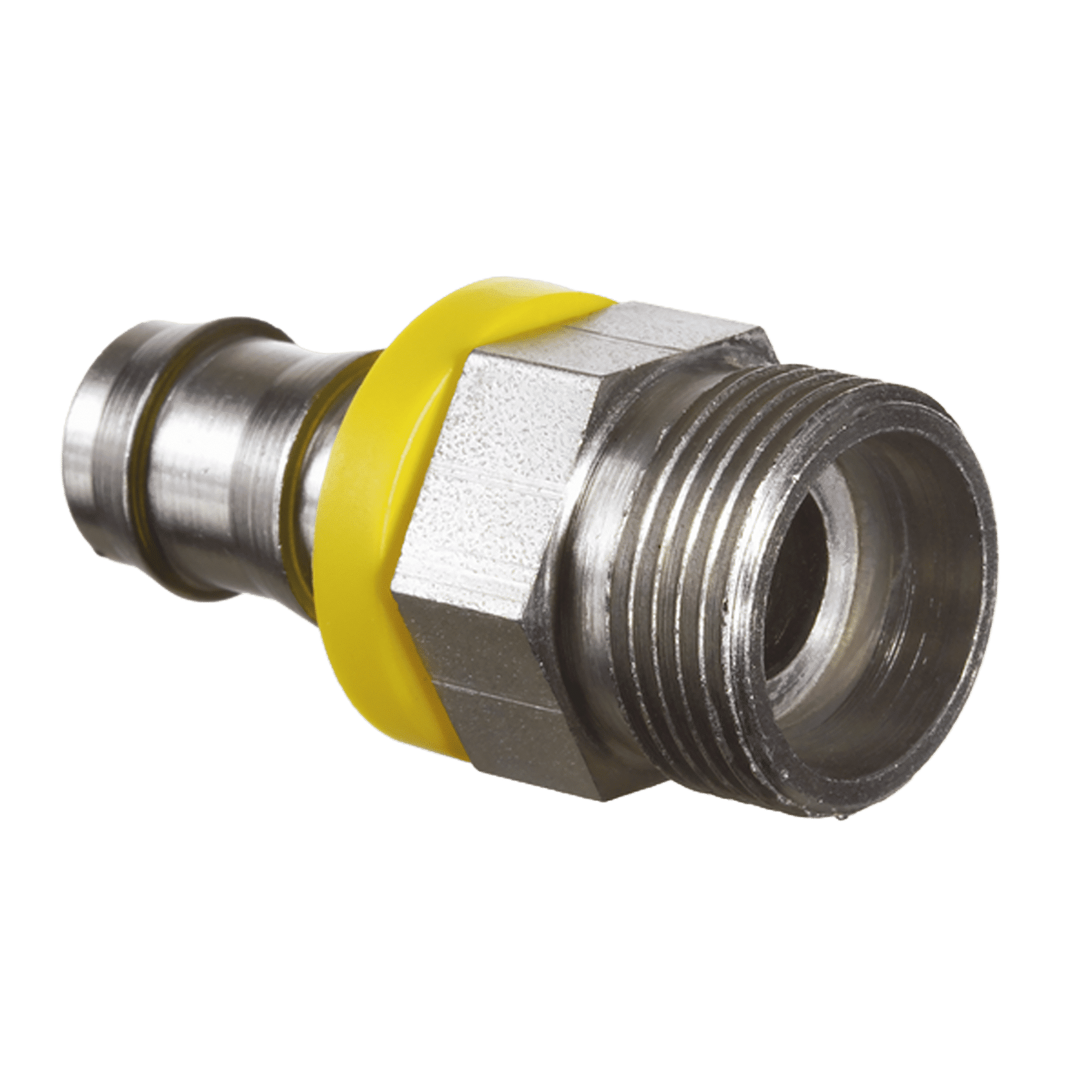

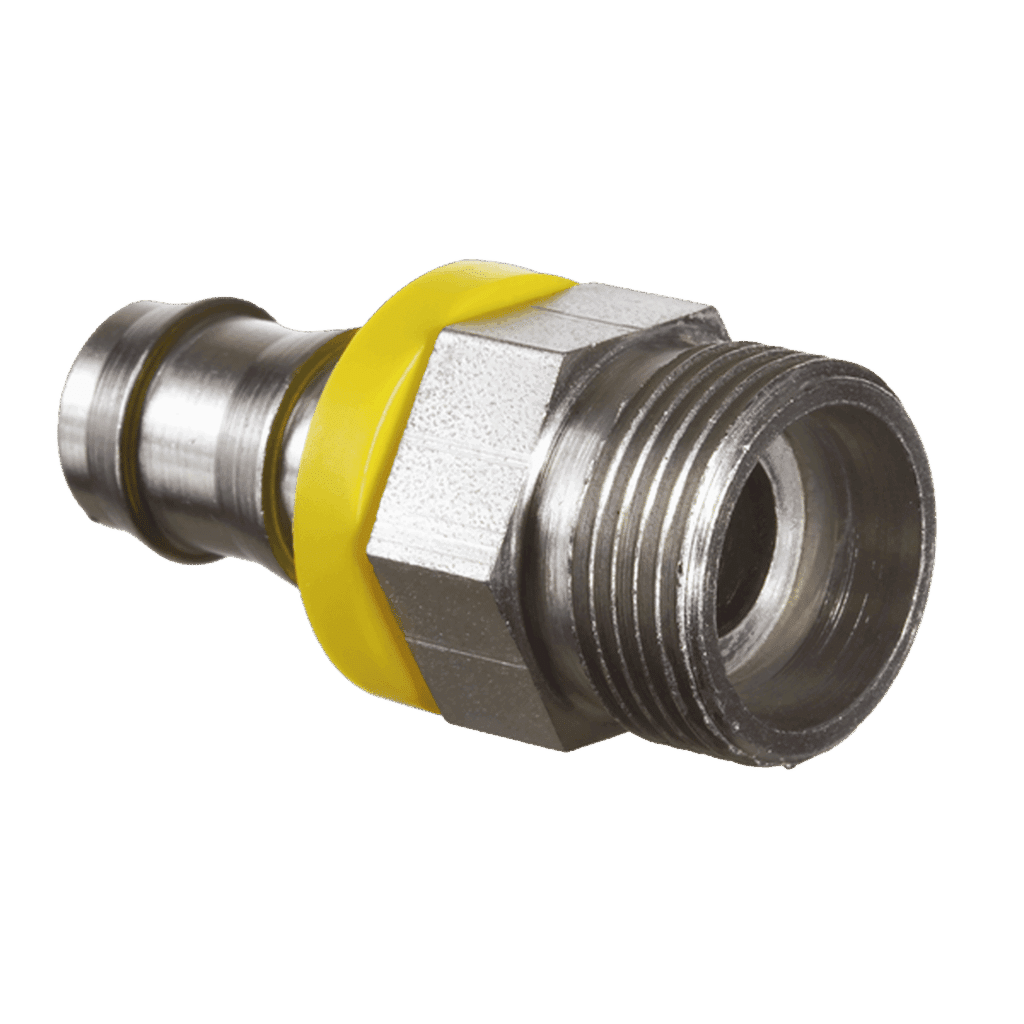

Plug-in nipple, CEL. Metric cylindrical outer thread. 24° inner cone. To ISO 8434-1. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 7 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | G1 | for external pipe Ø mm | L1 mm | S1 mm |
|---|---|---|---|---|---|---|---|
| 6 | 4 | 1/4” | M 12 x 1.5 | 6 | 35.0 | 12 | |
| 6 | 4 | 1/4” | M 14 x 1.5 | 8 | 36.0 | 14 | |
| 10 | 6 | 3/8” | M 16 x 1.5 | 10 | 41.5 | 17 | |
| 10 | 6 | 3/8” | M 18 x 1.5 | 12 | 41.0 | 19 | |
| 12 | 8 | 1/2” | M 22 x 1.5 | 15 | 49.0 | 22 | |
| 16 | 10 | 3/8” | M 26 x 1.5 | 18 | 58.0 | 27 | |
| 19 | 12 | 3/4” | M 30 x 2 | 22 | 63.0 | 30 |
Note: Undamaged nipples can be reused.
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
