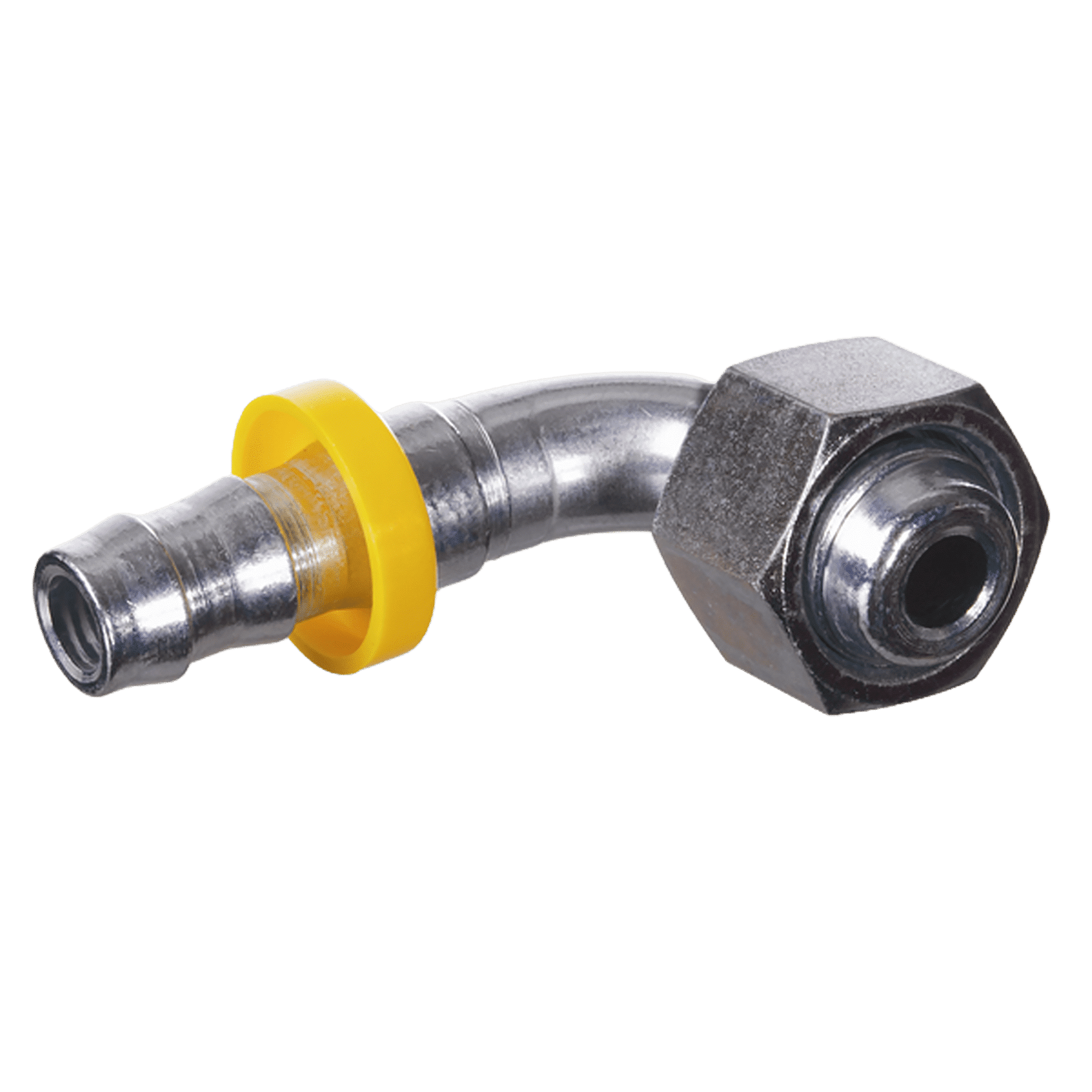

Plug-in nipple, DKL angle 90°. Metric nut thread. 24° / 60° Universal sealing head. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 9 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | G1 | for external pipe Ø mm | L1 mm | L2 mm | S1 |
|---|---|---|---|---|---|---|---|---|
| 6 | 4 | 1/4” | M12 x 1.5 | 6 | 42.0 | 29.0 | 14 | |
| 6 | 4 | 1/4” | M14 x 1.5 | 8 | 42.0 | 29.0 | 17 | |
| 6 | 4 | 1/4” | M16 x 1.5 | 10 | 42.0 | 29.0 | 19 | |
| 10 | 6 | 3/8” | M16 x 1.5 | 10 | 49.0 | 33.0 | 19 | |
| 10 | 6 | 3/8” | M18 x 1.5 | 12 | 49.0 | 34.0 | 22 | |
| 12 | 8 | 1/2” | M22 x 1.5 | 15 | 60.0 | 39.0 | 27 | |
| 16 | 10 | 5/8” | M26 x 1.5 | 18 | 74.0 | 43.0 | 32 | |
| 19 | 12 | 3/4” | M30 x 2 | 22 | 88.0 | 50.0 | 36 | |
| 25 | 16 | 1” | M36 x 2 | 28 | 99.0 | 70.0 | 41 |
Note: Undamaged nipples can be reused.
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
