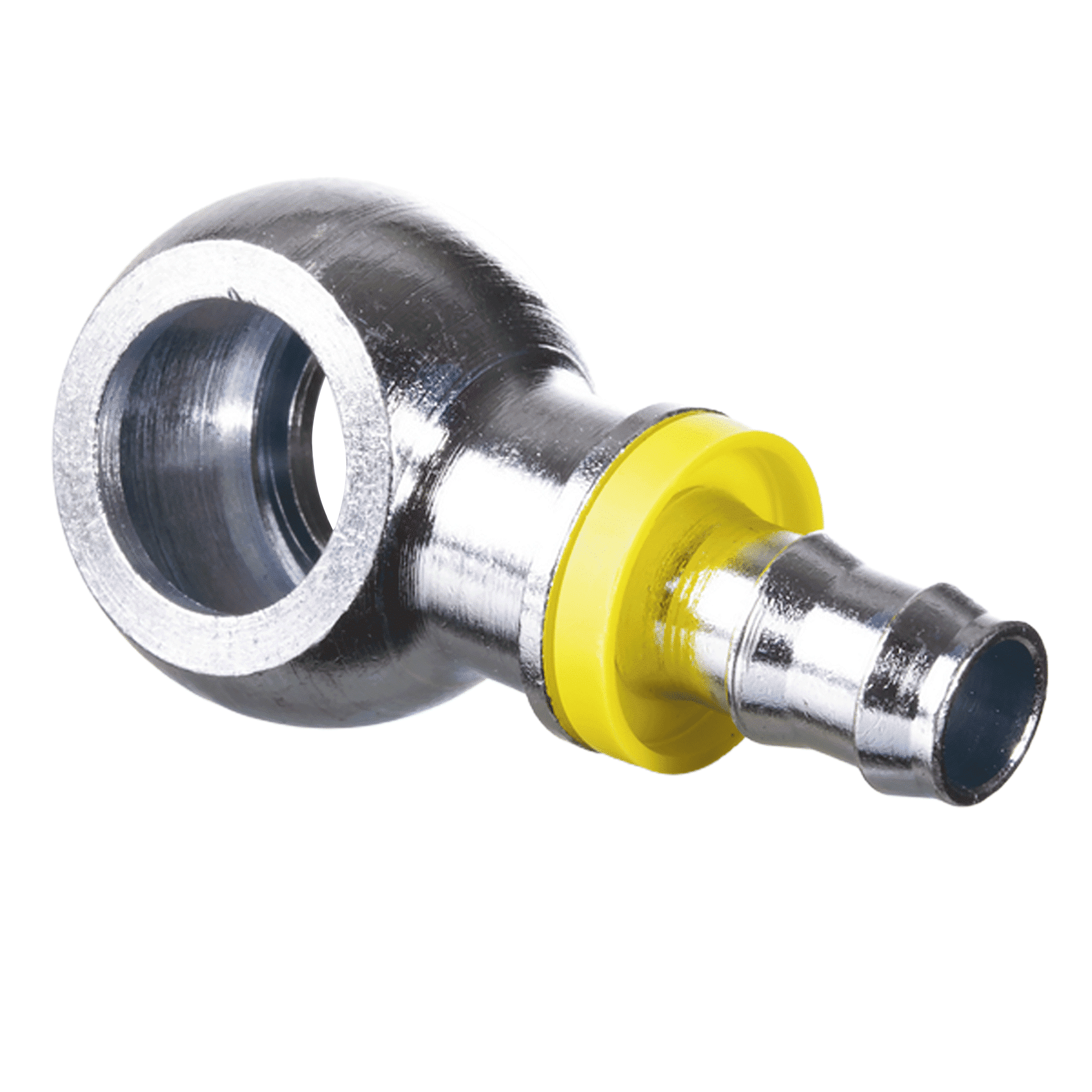

Plug-in nipple, RGN. Banjo for metric hollow screw to hose connection. Sealed by copper ring. To DIN 7642. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 10 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN mm | Size | Inches | D1 mm | For hollow screw | L1 mm |
|---|---|---|---|---|---|---|
| 6 | 4 | 1/4” | 8.1 | M 8 | 36.0 | |
| 6 | 4 | 1/4” | 10.1 | M 10 | 38.0 | |
| 6 | 4 | 1/4” | 12.1 | M 12 | 40.0 | |
| 6 | 4 | 1/4” | 14.1 | M 14 | 42.0 | |
| 10 | 6 | 3/8” | 12.1 | M 12 | 44.0 | |
| 10 | 6 | 3/8” | 14.1 | M 14 | 47.0 | |
| 10 | 6 | 3/8” | 16.1 | M 16 | 49.0 | |
| 12 | 8 | 1/2” | 14.1 | M 14 | 51.0 | |
| 12 | 8 | 1/2” | 22.1 | M 22 | 58.0 | |
| 16 | 10 | 5/8” | 22.1 | M 22 | 68.0 |
Note: Undamaged nipples can be reused.
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
