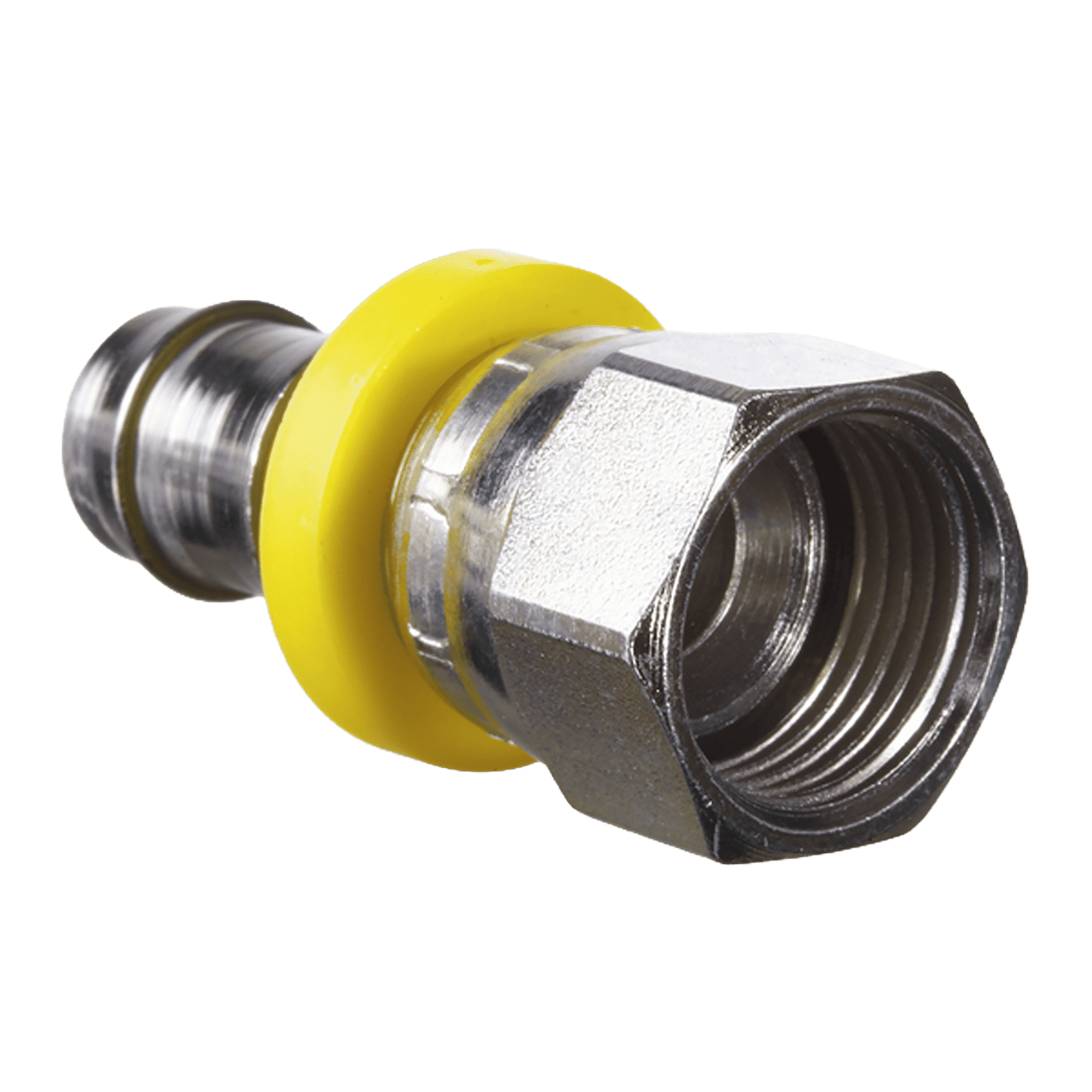

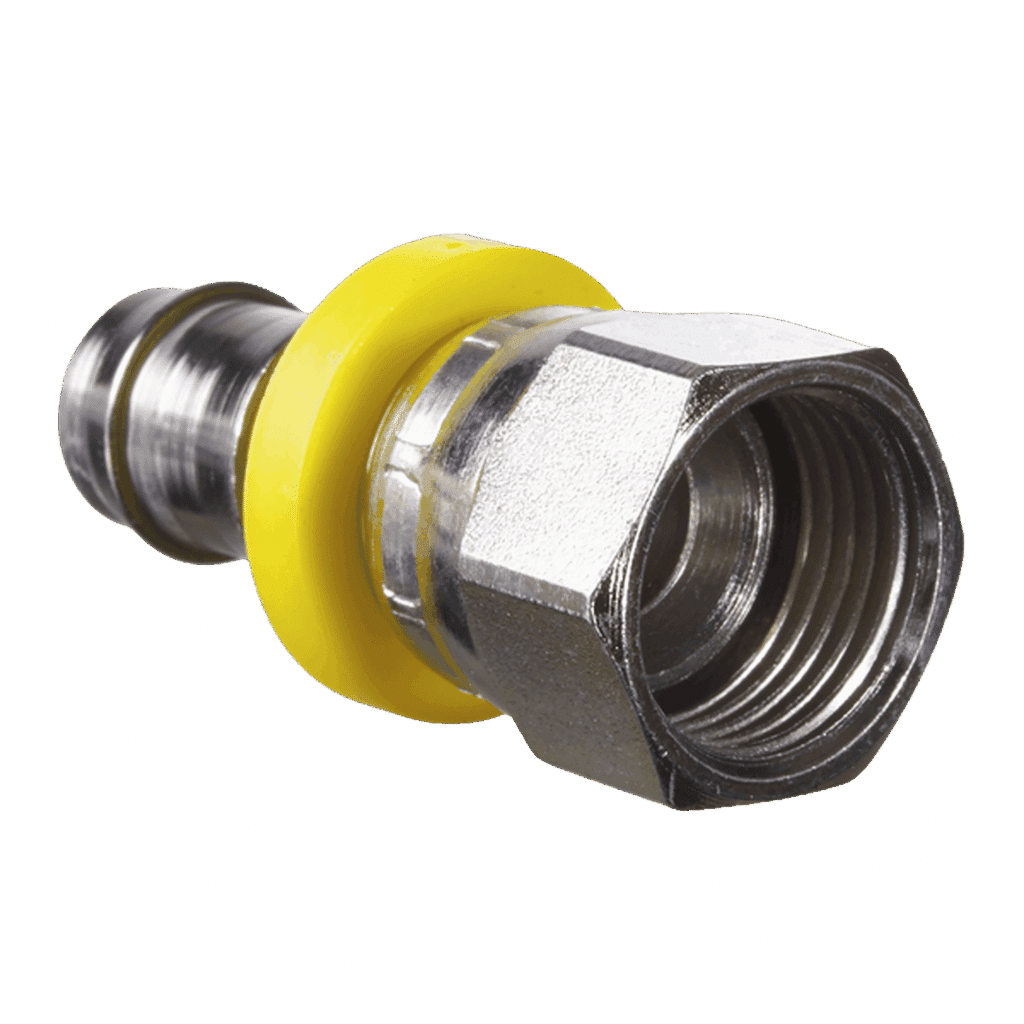

Plug-in nipple, DKJ. UN / UNF nut threads. 74° inner cone. To ISO 8434-2. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 8 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | G1 | L1 mm | S1 |
|---|---|---|---|---|---|---|
| 6 | 4 | 1/4” | 7/16”-20 UNF | 40.0 | 14 | |
| 6 | 4 | 1/4” | 1/2”-20 UNF | 40.0 | 17 | |
| 10 | 6 | 3/8” | 9/16”-18 UNF | 45.0 | 19 | |
| 12 | 8 | 1/2” | 3/4”-16 UNF | 51.0 | 22 | |
| 12 | 8 | 1/2” | 7/8”-14 UNF | 65.0 | 27 | |
| 16 | 10 | 5/8” | 7/8”-14 UNF | 65.0 | 27 | |
| 19 | 12 | 3/4” | 1.1/16”–12 UN | 67.0 | 32 | |
| 25 | 16 | 1” | 1.5/16”–12 UN | 70.0 | 41 |
Note: Undamaged nipples can be reused.
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
