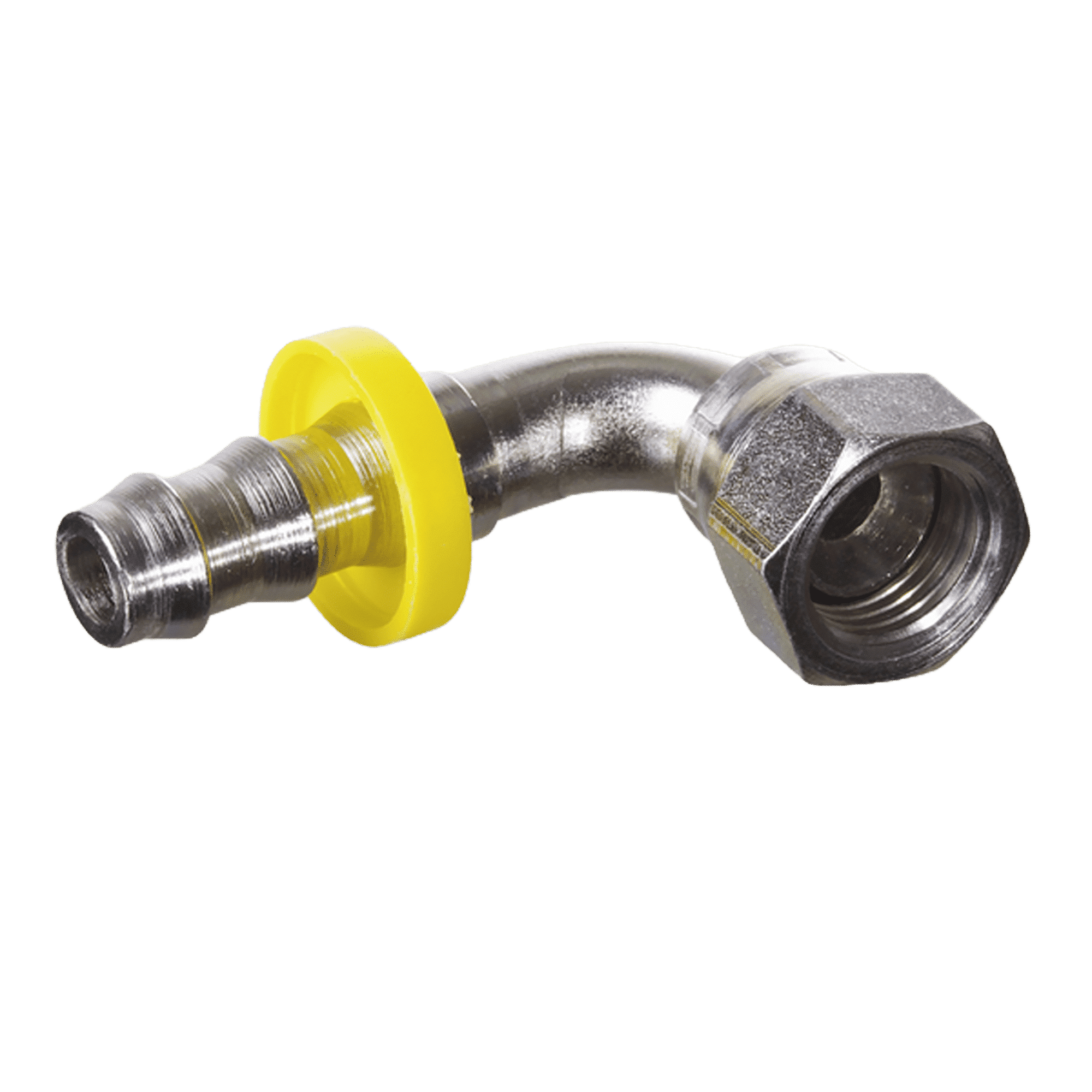

Plug-in nipple, DKJ angle 90°. UN / UNF nut threads. 74° inner cone. To ISO 8434-2. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 4 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | G1 | L1 mm | L2 mm | S1 |
|---|---|---|---|---|---|---|---|
| 6 | 4 | 1/4” | 7/16”-20 UNF | 39.0 | 17.0 | 16 | |
| 10 | 6 | 3/8” | 9/16”-18 UNF | 47.0 | 23.0 | 19 | |
| 13 | 8 | 1/2” | 3/4”-16 UNF | - | - | - | |
| 19 | 12 | 3/4” | 1.1/16”–12 UN | 83.0 | 48.0 | 32 |
Note: Undamaged nipples can be reused.
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
