SAE flange adapter, forged. Angle 90°. 6000 psi. To SAE J 518 C, ISO 6162. Zinc Nickel surface. S355J2G3 (ST52.3). 13 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | PB 10.9 bar | Size | A | B1 mm | B2 mm | E mm | F1 mm | S1 mm | S2 mm | L mm | M metr. | M unc |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 400 | 1/2” | UNF 3/4”–16 | 9.9 | 13 | 18.2 | 61.6 | 39 | 38 | 8.7 | M 8 x 30 | 5/16”x 1.1/4” | |
| 400 | 1/2” | UNF 7/8”–14 | 12.3 | 13 | 18.2 | 61.6 | 39 | 38 | 8.7 | M 8 x 35 | 5/16”x 1.1/4” | |
| 400 | 3/4” | UNF 7/8”–14 | 12.3 | 17 | 23.8 | 78.0 | 48 | 48 | 10.7 | M 10 x 35 | 3/8”x 1.1/2” | |
| 400 | 3/4” | UNF 1.1/16”–12 | 15.5 | 17 | 23.8 | 78.0 | 48 | 48 | 10.7 | M 10 x 35 | 3/8”x 1.1/2” | |
| 400 | 3/4” | UN 1.5/16”–12 | 21.5 | 17 | 23.8 | 78.0 | 48 | 48 | 10.7 | M 10 x 35 | 3/8”x 1.1/2” | |
| 400 | 1" | UNF 1.1/16”–12 | 15.5 | 24 | 27.8 | 99.0 | 60 | 60 | *1 | M 12 x 45 | 7/16”x 1.3/4” | |
| 400 | 1" | UN 1.5/16”–12 | 21.5 | 24 | 27.8 | 99.0 | 60 | 60 | *1 | M 12 x 45 | 7/16”x 1.3/4” | |
| 400 | 1" | UN 1.5/8”–12 | 27.5 | 24 | 27.8 | 99.0 | 60 | 60 | *1 | M 12 x 45 | 7/16”x 1.1/2” | |
| 400 | 1.1/4” | UN 1.5/16”–12 | 21.5 | 30 | 31.8 | 115.5 | 68 | 68 | *2 | M 14 x 50 | 1/2”x 1.3/4” | |
| 400 | 1.1/4” | UN 1.5/8”–12 | 27.5 | 30 | 31.8 | 115.5 | 68 | 68 | *2 | M 14 x 50 | 1/2”x 1.3/4” | |
| 400 | 1.1/4” | UN 1.7/8”–12 | 33.0 | 30 | 31.8 | 115.5 | 68 | 68 | *2 | M 14 x 50 | 1/2”x 1.3/4” | |
| 400 | 1.1/2” | UN 1.5/8”–12 | 27.5 | 32 | 36.5 | 133.0 | 76 | 76 | 17.0 | M 16 x 55 | 5/8”x 2” | |
| 400 | 1.1/2” | UN 1.7/8”–12 | 33.0 | 32 | 36.5 | 133.0 | 76 | 76 | 17.0 | M 16 x 55 | 5/8”x 2” |
Note: The stated maximum working pressure relates to the flange. The actual working pressure is determined by the pipe (wall thickness) and the quality of the pipe. Recommended screws are listed in the columns M (metr) and M (unc).

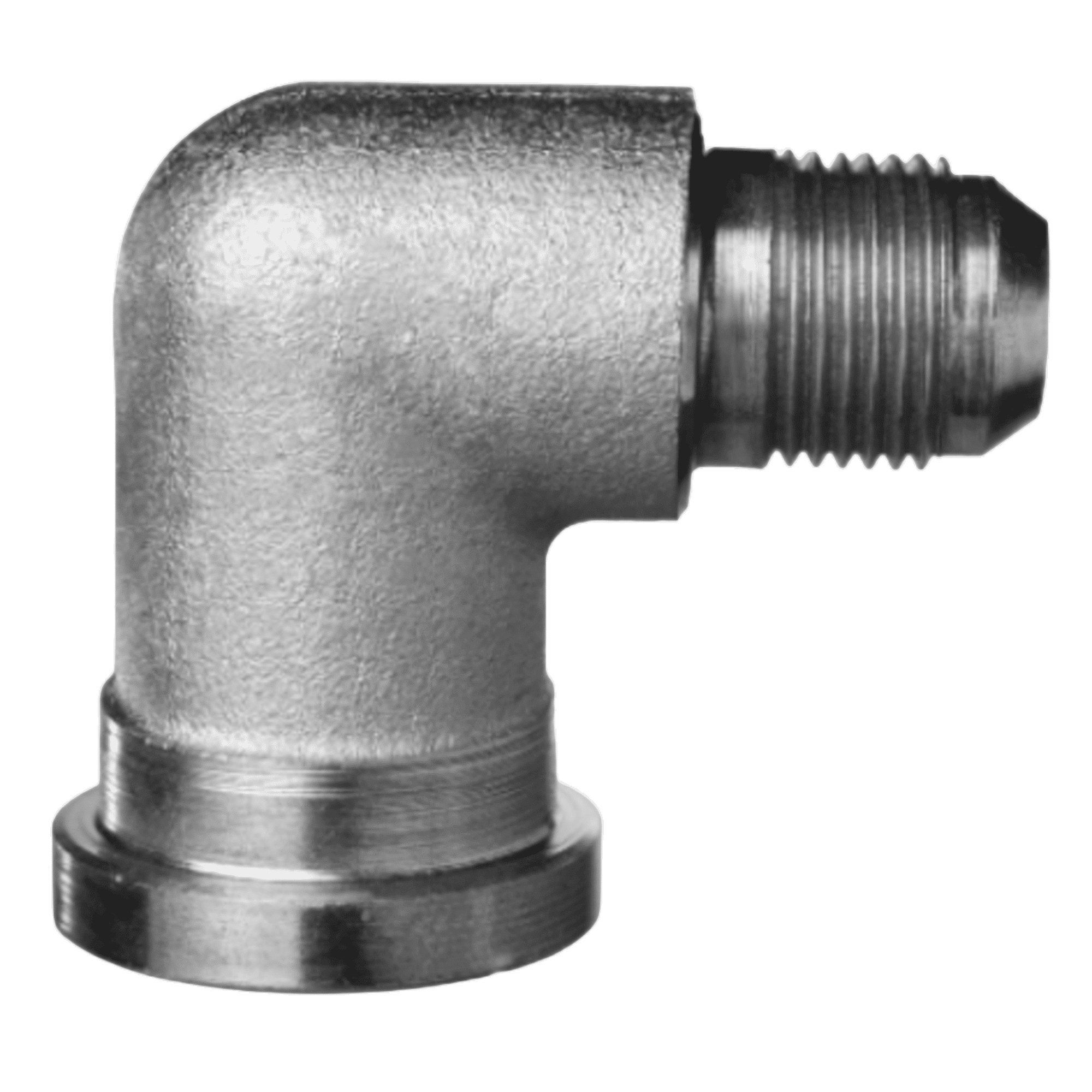

Product Versions: WFG JIC U (3000 / 6000 PSI) - SAE flange adapter, forged, with 2 flange halves, screw set and O-ring WFG JIC M (3000 / 6000 PSI) - SAE flange adapter, forged, with 2 flange halves, screw set and O-ring
