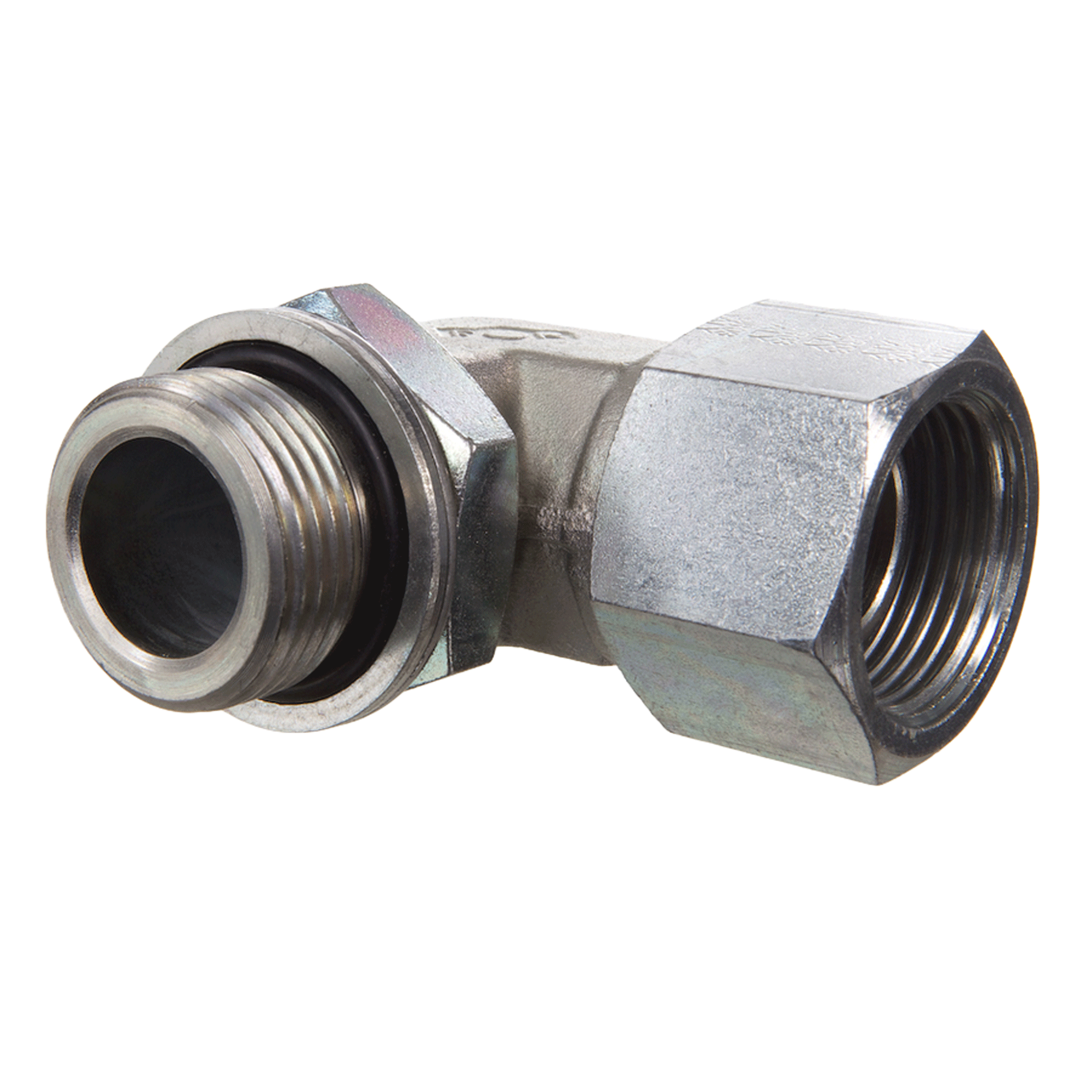

UNO Male Positional / BSPP Swivel Female 90 – Screw-in socket, angle 90°. Part of the Motus Hydraulic Adaptors range.
excl. GST
Not sure which model you need? Talk to Motus.
PRODUCT INFORMATION
UNO Male Positional / BSPP Swivel Female 90 is part of the Motus Hydraulic Adaptors range. Screw-in socket, angle 90°.
| Connection 1 | UN / UNF external threads |
| Sealing form 1 | O-ring seal on screw-in socket |
| Connection 2 | BSP Cylindrical Internal threads |
| Sealing form 2 | 60° outer cone |
| Design | Screw-in sockets |
| Construction | Angle 90° |
| Material | Steel |
| Surface | MotusCoat™ |
Catalogue page: 300
UNO Male Positional / BSPP Swivel Female 90 – Screw-in socket, angle 90°. Part of the Motus Hydraulic Adaptors range.
Confirm both connection thread types and sizes, sealing form, fitting configuration and system pressure before ordering.
Not sure which size, configuration or hydraulic component you need? Tell us what you’re working with and the Motus team will help match the right product to the application.
