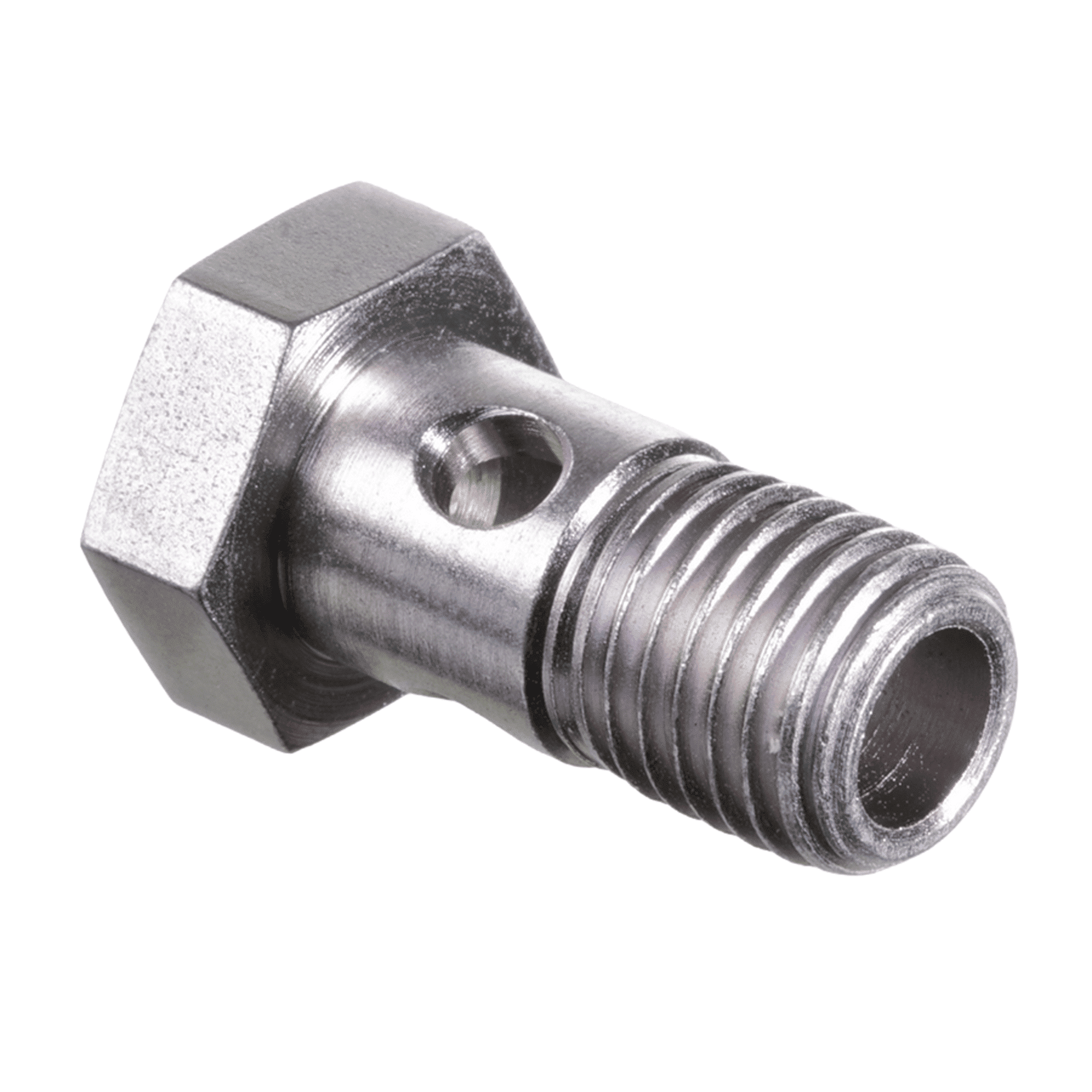

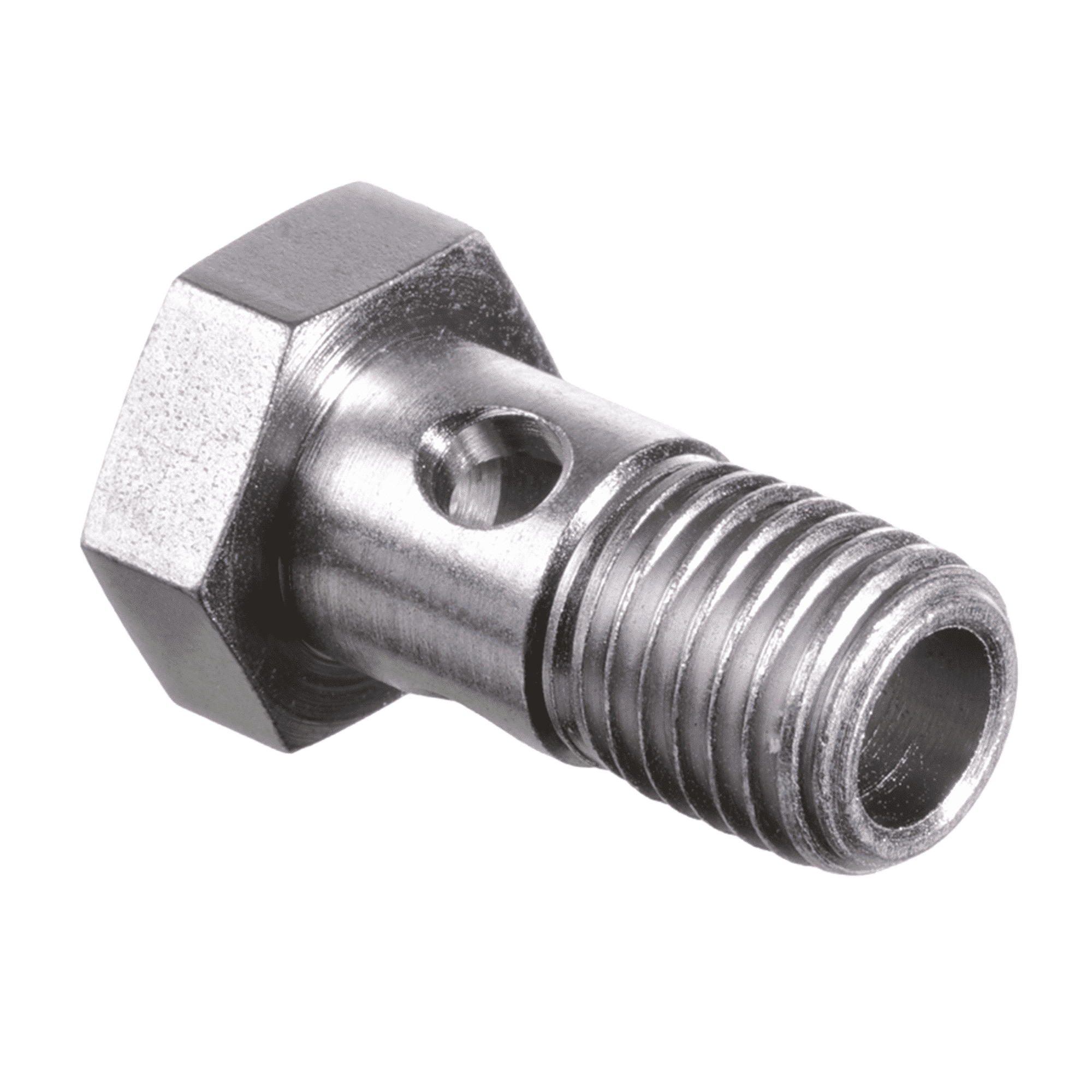

Hollow screw. BSP external thread, cylindrical. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 7 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 | Ø d2 mm | L2 mm | m mm | S1 mm |
|---|---|---|---|---|---|
| G 1/8”-28 | 9.9 | 19.0 | 5 | 14 | |
| G 1/4”-19 | 13.1 | 25.5 | 5 | 17 | |
| G 3/8”-19 | 16.6 | 31.0 | 7 | 22 | |
| G 1/2”-14 | 20.9 | 40.0 | 8 | 27 | |
| G 5/8”-14 | 22.9 | 47.0 | 9 | 32 | |
| G 3/4”-14 | 26.4 | 47.0 | 32 | ||
| G 1”-11 | 33.2 | 58.0 | 10 | 41 |
SW, S1, S2 = Width across flats
Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
