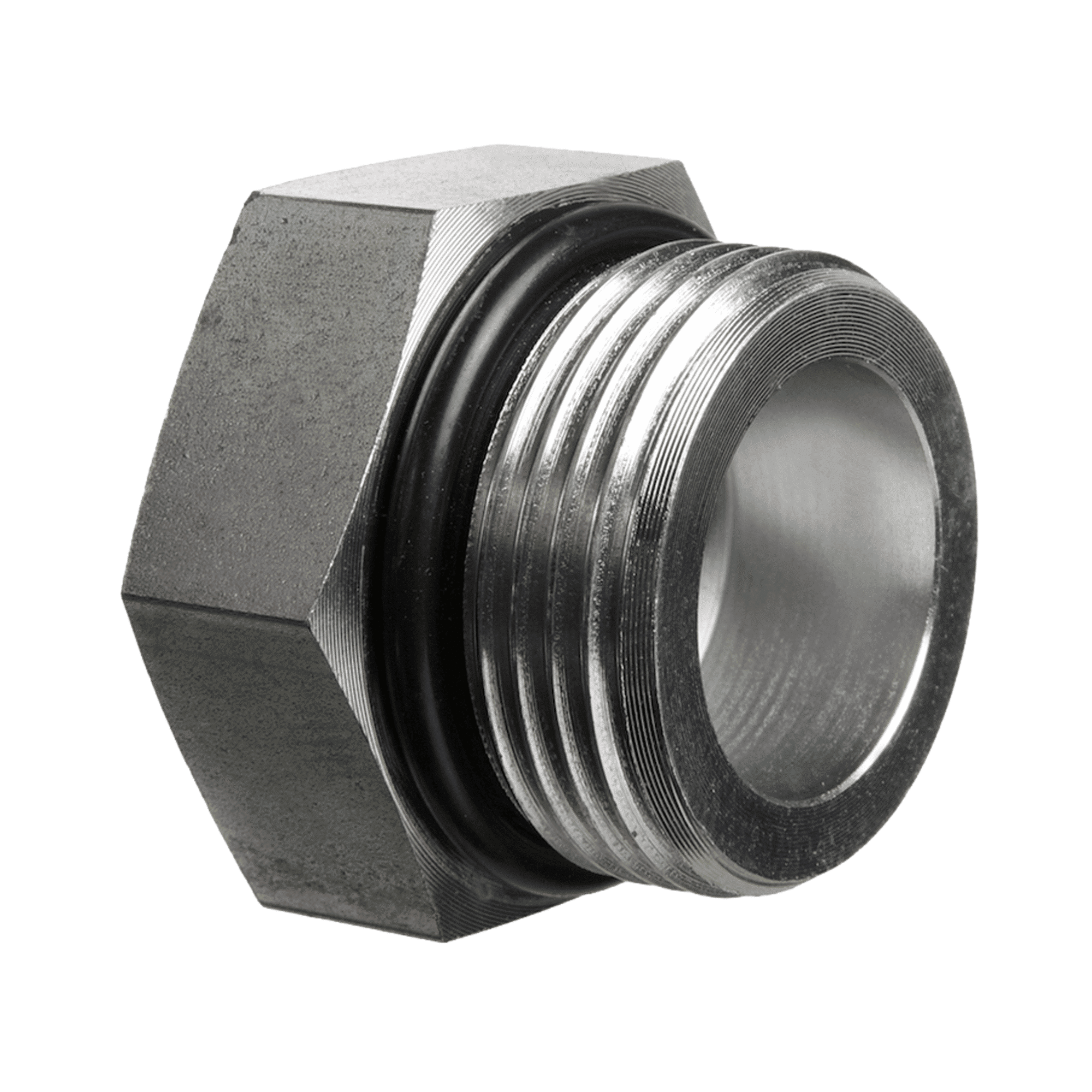

Blanking socket. Straight. UN / UNF external threads. O-ring seal. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 13 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 | SW | OR |
|---|---|---|---|
| 5/16”-24 UNF | 11 | 6.07 x 1.63 | |
| 3/8”-24 UNF | 13 | 7.65 x 1.78 | |
| 7/16”-20 UNF | 14 | 8.92 x 1.83 | |
| 1/2”-20 UNF | 16 | 10.52 x 1.83 | |
| 9/16”-18 UNF | 18 | 11.90 x 1.98 | |
| 3/4”-16 UNF | 22 | 16.36 x 2.20 | |
| 7/8”-14 UNF | 25 | 19.18 x 2.46 | |
| 1.1/16”–12 UN | 32 | 23.47 x 2.95 | |
| 1.3/16”–12 UN | 35 | 26.59 x 2.95 | |
| 1.5/16”–12 UN | 38 | 29.74 x 2.95 | |
| 1.5/8”–12 UN | 48 | 37.47 x 3.00 | |
| 1.7/8”–12 UN | 54 | 43.69 x 3.00 | |
| 2.1/2”–12 UN | 70 | 59.36 x 3.00 |
SW, S1, S2 = Width across flats
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
