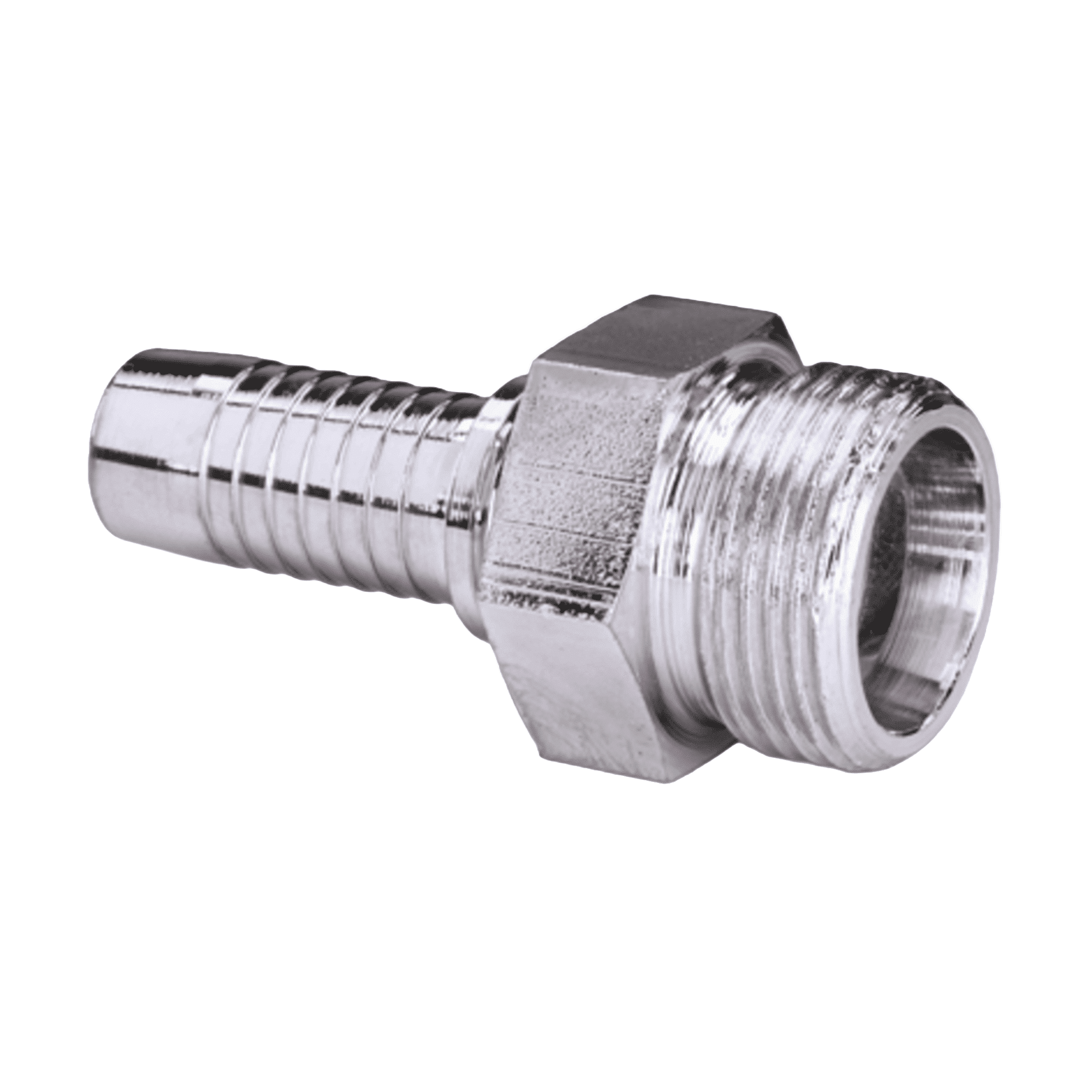

Swage nipple, CES. Heavy series. For swage Nipples for MH100, MH200, MH400, MH700. Metric cylindrical outer thread. 24° inner cone. To ISO 8434-1. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 21 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | G1 | for external pipe Ø | L1 mm | S1 |
|---|---|---|---|---|---|---|---|
| 5 | 3 | 3/16” | M 16 x 1.5 | 8 mm | 48.0 | 17 | |
| 6 | 4 | 1/4” | M 14 x 1.5 | 6 mm | 52.0 | 14 | |
| 6 | 4 | 1/4” | M 16 x 1.5 | 8 mm | 54.0 | 17 | |
| 6 | 4 | 1/4” | M 18 x 1.5 | 10 mm | 54.0 | 19 | |
| 8 | 5 | 5/16” | M 18 x 1.5 | 10 mm | 54.0 | 19 | |
| 8 | 5 | 5/16” | M 20 x 1.5 | 12 mm | 56.0 | 22 | |
| 8 | 5 | 5/16” | M 24 x 1.5 | 16 mm | 58.0 | 27 | |
| 10 | 6 | 3/8” | M 18 x 1.5 | 10 mm | 55.5 | 19 | |
| 10 | 6 | 3/8” | M 20 x 1.5 | 12 mm | 57.5 | 22 | |
| 10 | 6 | 3/8” | M 22 x 1.5 | 14 mm | 59.5 | 24 | |
| 10 | 6 | 3/8” | M 24 x 1.5 | 16 mm | 59.5 | 27 | |
| 12 | 8 | 1/2” | M 22 x 1.5 | 14 mm | 60.5 | 24 | |
| 12 | 8 | 1/2” | M 24 x 1.5 | 16 mm | 60.5 | 27 | |
| 12 | 8 | 1/2” | M 30 x 2 | 20 mm | 64.5 | 32 | |
| 16 | 10 | 5/8” | M 30 x 2 | 20 mm | 69.0 | 32 | |
| 19 | 12 | 3/4” | M 30 x 2 | 20 mm | 75.5 | 32 | |
| 19 | 12 | 3/4” | M 36 x 2 | 25 mm | 79.5 | 36 | |
| 25 | 16 | 1” | M 36 x 2 | 25 mm | 87.5 | 36 | |
| 25 | 16 | 1” | M 42 x 2 | 30 mm | 89.5 | 46 | |
| 31 | 20 | 1.1/4” | M 52 x 2 | 38 mm | 104.0 | 55 | |
| 38 | 24 | 1.1/2” | M 52 x 2 | 38 mm | 107.5 | 55 |
Note: Choose the appropriate ferrule based on the hose type.
Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
