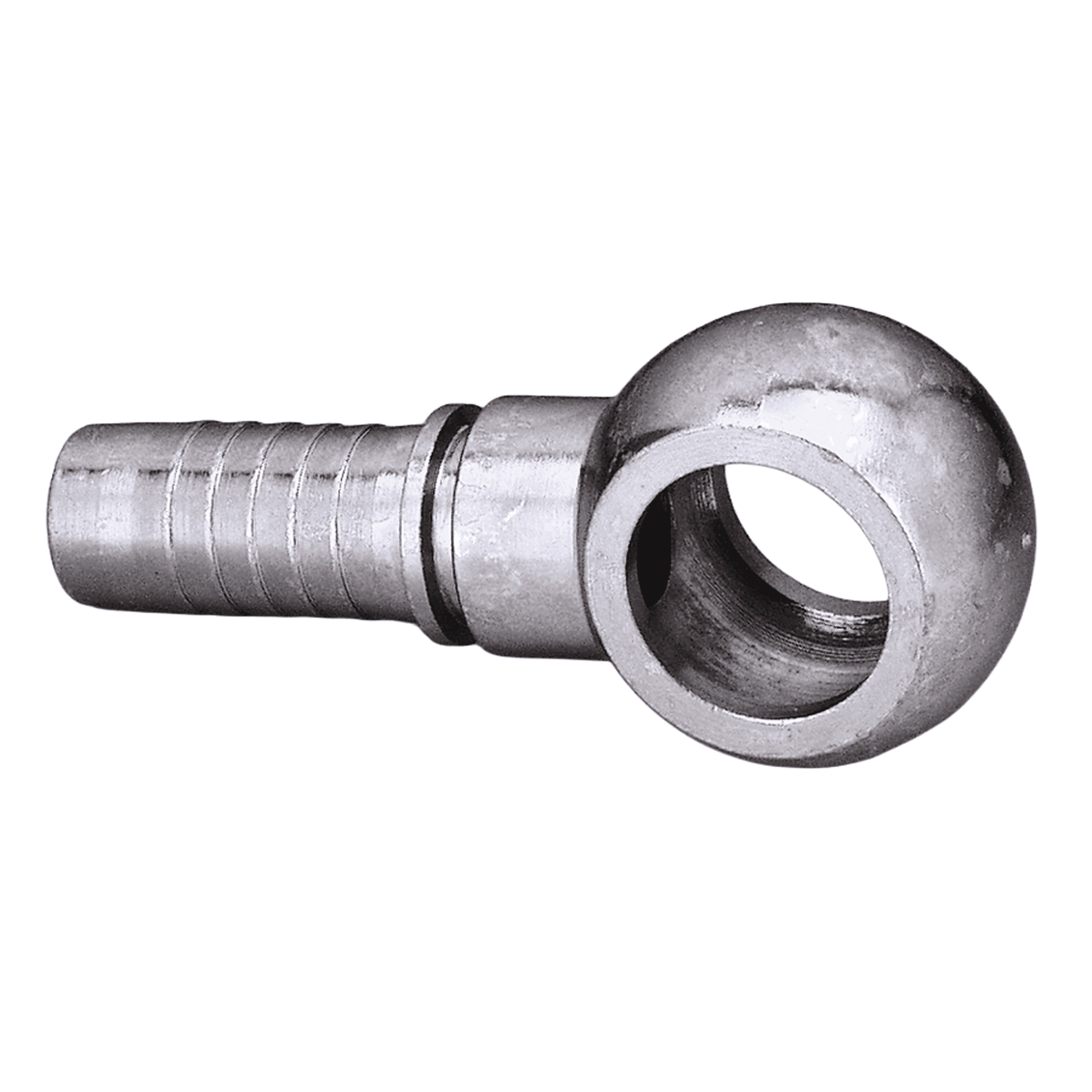

Swage nipple, RGN. For swage Nipples for MH100, MH200, MH400, MH700. Banjo for metric hollow screw. Sealed by copper ring. To DIN 7642. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 23 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | D1 mm | For hollow screw | L1 mm |
|---|---|---|---|---|---|---|
| 5 | 3 | 3/16” | 10.1 | M 10 | 42.0 | |
| 6 | 4 | 1/4” | 8.1 | M 8 | 48.0 | |
| 6 | 4 | 1/4” | 10.1 | M 10 | 48.0 | |
| 6 | 4 | 1/4” | 12.1 | M 12 | 46.5 | |
| 6 | 4 | 1/4” | 14.1 | M 14 | 49.5 | |
| 6 | 4 | 1/4” | 16.1 | M 16 | 52.5 | |
| 8 | 5 | 5/16” | 10.1 | M 10 | 48.0 | |
| 8 | 5 | 5/16” | 12.1 | M 12 | 54.5 | |
| 8 | 5 | 5/16” | 14.1 | M 14 | 54.5 | |
| 8 | 5 | 5/16” | 16.1 | M 16 | 52.5 | |
| 8 | 5 | 5/16” | 18.1 | M 18 | 55.5 | |
| 10 | 6 | 3/8” | 14.1 | M 14 | 56.0 | |
| 10 | 6 | 3/8” | 16.1 | M 16 | 54.0 | |
| 10 | 6 | 3/8” | 18.1 | M 18 | 57.0 | |
| 12 | 8 | 1/2” | 18.1 | M 18 | 58.0 | |
| 12 | 8 | 1/2” | 22.1 | M 22 | 60.5 | |
| 16 | 10 | 5/8” | 18.1 | M 18 | 68.5 | |
| 16 | 10 | 5/8” | 22.1 | M 22 | 69.5 | |
| 16 | 10 | 5/8” | 26.1 | M 26 | 72.0 | |
| 19 | 12 | 3/4” | 22.1 | M 22 | 76.0 | |
| 19 | 12 | 3/4” | 26.1 | M 26 | 78.5 | |
| 19 | 12 | 3/4” | 30.1 | M 30 | 82.0 | |
| 25 | 16 | 1” | 30.1 | M 30 | 90.0 |
Note: Choose the appropriate ferrule based on the hose type.
Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
