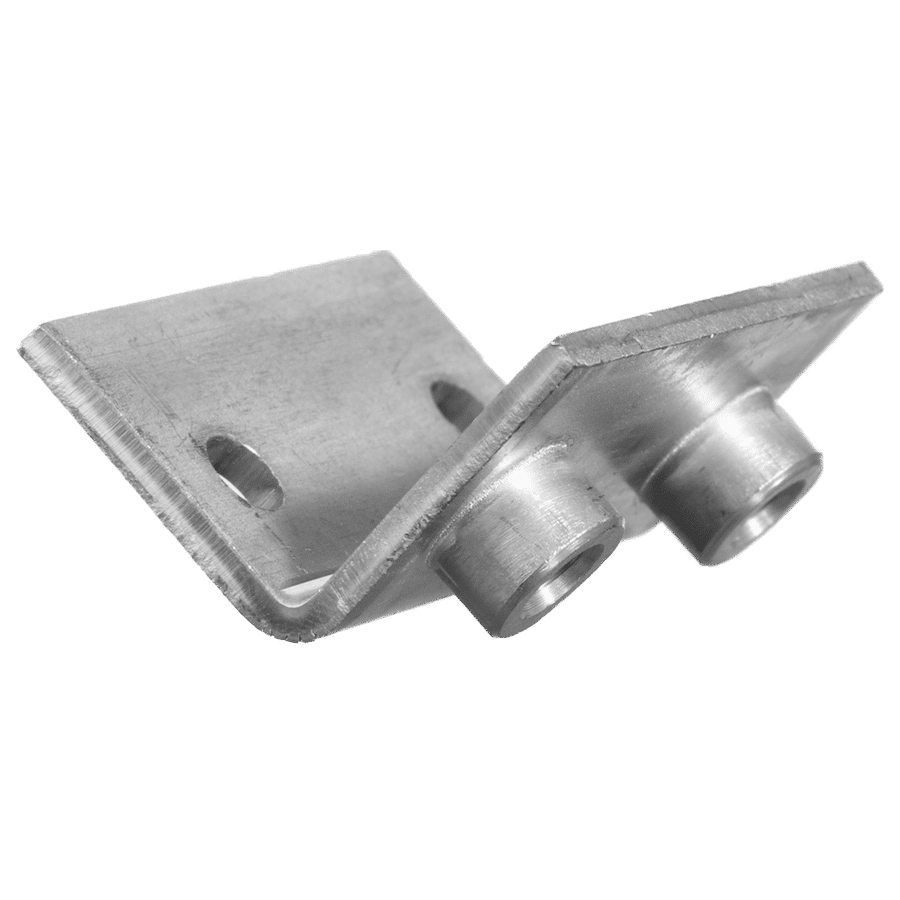

Angle welded on and screw-on base plates. For single pipe clamps. Angle 90°. Light series. To DIN 3015-1. Phosphate treated surface. Steel. 6 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | Clamp size | B mm | c mm | e1 mm | e2 mm | G | H mm | L mm | S mm |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 30 | 6.6 | 20.0 | 20 | M 6 | 30 | 36.0 | 3 | |
| 2 | 30 | 6.6 | 26.0 | 26 | M 6 | 30 | 42.0 | 3 | |
| 3 | 30 | 6.6 | 33.0 | 33 | M 6 | 30 | 50.0 | 3 | |
| 4 | 30 | 6.6 | 40.0 | 40 | M 6 | 30 | 59.0 | 3 | |
| 5 | 30 | 6.6 | 52.0 | 52 | M 6 | 30 | 72.0 | 3 | |
| 6 | 30 | 6.6 | 66.0 | 66 | M 6 | 30 | 88.0 | 3 |
Product Versions: SPC - Base Plate 90 V4 - Angle welded on and screw-on base plates, Stainless steel 1.4571
Additional element for following products: A 1-6 - Configuration of group A 1-6
